Product Details:
|
| Product Name: | Flush Mounted Electrical Distribution Board | Application: | Indoor Light Distribution |
|---|---|---|---|
| Mounting Type: | Flush Mounted | Box Material: | 1.0&1.2mm Powder Coated Steel |
| Door Material: | HIPS/PC | Way Type: | 10ways |
| Ingress Protection: | IP40 | Way Dimension: | 18mm |
| Warrantly: | 2 Years | ||
| High Light: | Consumer Unit Box MCB Distribution Board,Indoor 10 Way Consumer Unit Box,Electrical Equipment 10 Way MCB Box |
||

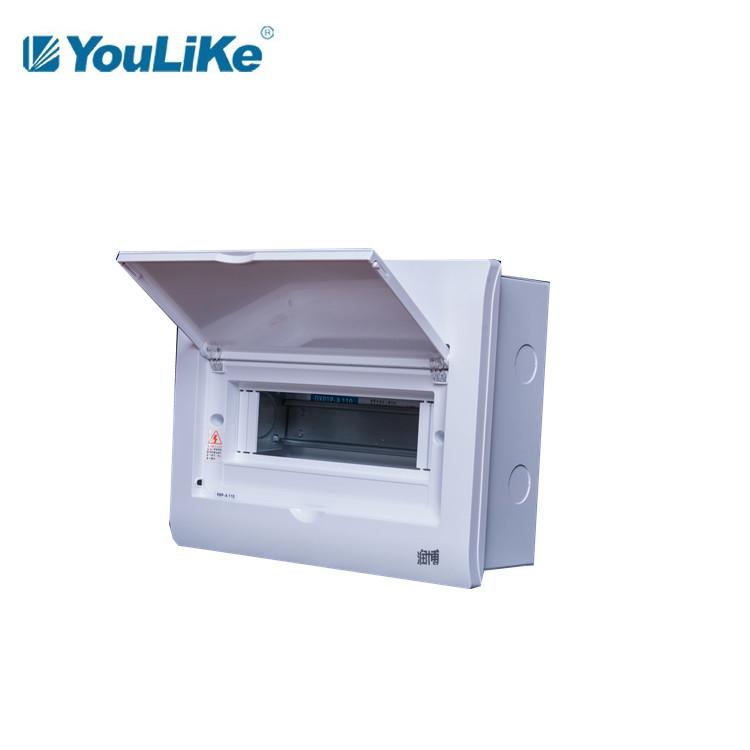

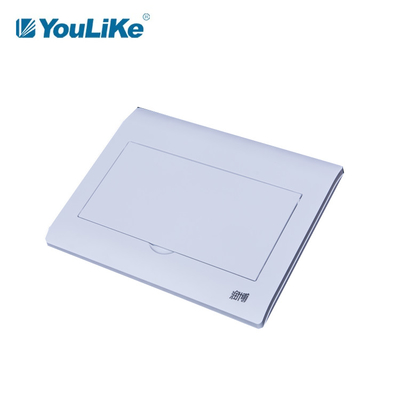

Indoor 10 Way Electrical Equipment Consumer Unit Box MCB Distribution Board
Quality Assurance
1. national CCC certification standard.
2. The plate thickness meets the national standard without error.
3. All brand-new high-quality materials.
4. The protection level reaches IP40.

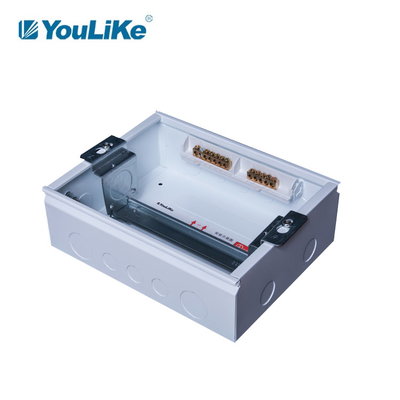

Product Advantage
1. Strong box for durability.
2. Curved panel, matte process.
3. Rail btacket to prevent deformation.
4. High-quality copper bar, sturdy and durable.
5. Optimize the details to meet your needs.
Company Profile
1. YOULIKE founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of RB series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
RBP-A 110 |
10way | 268×210×17.5(26) | 246×192×80×0.8 | 6×10 | 6 | 5 | 5 |
|
RBP-A 113 |
13way | 322×210×17.5(26) | 300×192×80×0.8 | 6×10 | 6 | 5 | 6 |
|
RBP-A 116 |
16way | 376×210×17.5(26) | 354×192×80×0.8 | 6×10 | 8 | 7 | 7 |
|
RBP-A 118 |
18way | 412×210×17.5(26) | 390×192×80×0.8 | 6×10 | 8 | 7 | 8 |
|
RBP-A 121 |
21way | 466×210×17.5(26) | 444×192×80×0.8 | 6×10 | 11 | 10 | 10 |
|
RBP-A 124 |
24way | 524×250×18.5(27) | 498×230×90×1.0 | 6×10 | 11 | 10 | 10 |
|
RBP-A 232 |
32way | 378×405×18.5(27) | 354×380×90×1.0 | 6×10 | 13 | 12 | 7 |
|
RBP-A 242 |
42way | 468×405×18.5(27) | 444×380×90×1.0 | 6×10 | 16 | 15 | 10 |
Exhibitions
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| RBP-A 110 | 655×300×385 | 0.0756 | 5 | 17.10 | |
| RBP-A 113 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| RBP-A 116 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| RBP-A 118 | 655×310×545 | 0.1107 | 5 | 11.65 | |
| RBP-A 121 | 655×320×600 | 0.1258 | 5 | 12.40 | |
| RBP-A 124 | 460×135×385 | 0.0240 | 1 | 5.40 | |
| RBP-A 232 | 460×135×440 | 0.0273 | 1 | 6.70 | |
| RBP-A 242 | 460×135×530 | 0.0329 | 1 | 3.60 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
