Product Details:
|
| Product Name: | Concealed/surface Mount Distribution Box | Cover Frame Material: | ABS |
|---|---|---|---|
| Door Material: | ABS/PC | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Protection Level: | IP40 |
| Mounting Type: | Flush | Window Panel Inatallation Method: | Screw Fixation |
| High Light: | MCB wall mounted distribution box,13Way wall mounted distribution box,MCB circuit breaker panel board |
||

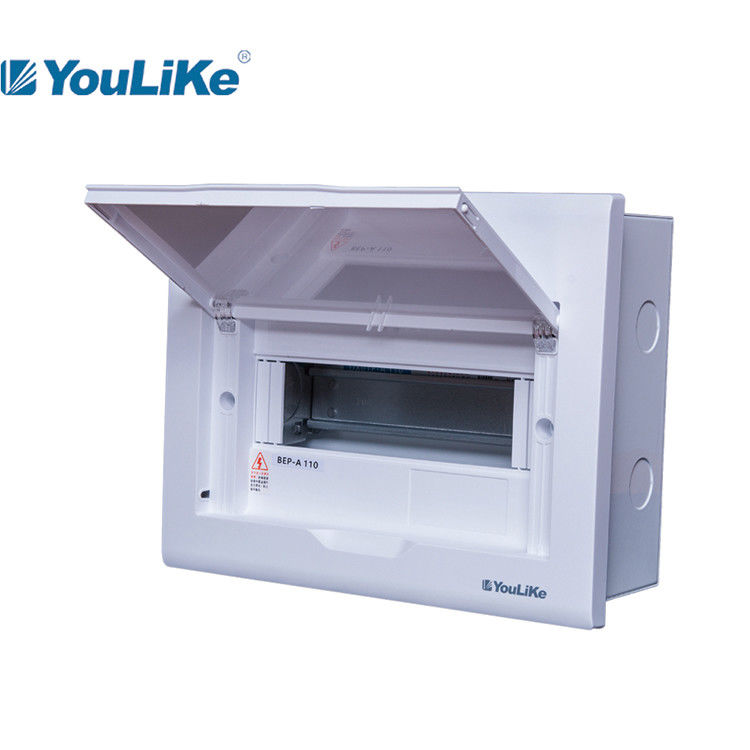

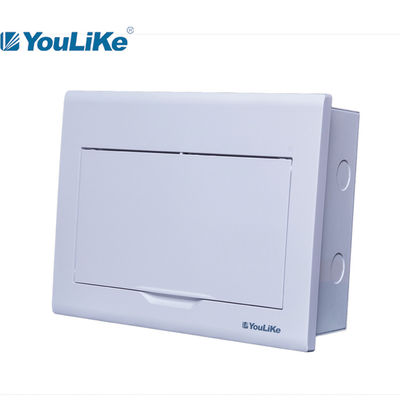

13 Way MCB Box network device management box Wall Mounted Distribution Box
Quality Assurance
1. national CCC certification standard.
2. The plate thickness meets the national standard without error.
3. All brand-new high-quality materials.
4. The protection level reaches IP40.
Product Specification

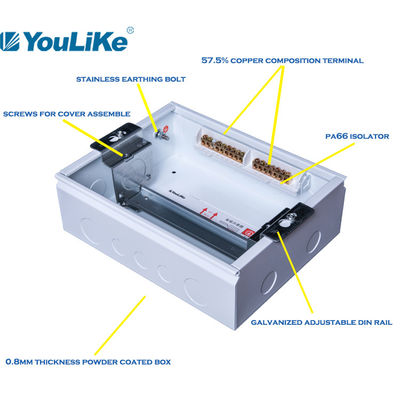

1. Box material: powder coated steel

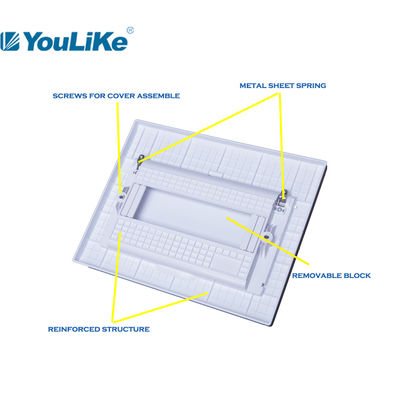

2. Cover frame material : ABS
3. pantel material: both ABS (for white door) and PC material (for transparent door).
4. protection level: IP40
5. All plastic parts are durable and safe (flame retardant PC).
6. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of BE series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-A 104 | 4way | 160*190*15.5(27.5) | 138*170*80*0.8 | 6*10 | 4 | 5 | 2 |
| BEP-A 110 | 10way | 268*210*15.5(27.5) | 246*192*80*0.8 | 6*10 | 8 | 7 | 5 |
| BEP-A 113 | 13way | 322*210*15.5(27.5) | 300*192*80*0.8 | 6*10 | 8 | 7 | 6 |
| BEP-A 116 | 16way | 376*210*15.5(27.5) | 354*192*80*0.8 | 6*10 | 8 | 9 | 7 |
| BEP-A 118 | 18way | 412*210*15.5(27.5) | 390*192*80*0.8 | 6*10 | 11 | 10 | 8 |
| BEP-A 121 | 21way | 466*210*15.5(27.5) | 444*192*80*0.8 | 6*10 | 11 | 10 | 10 |
| BEP-A 124 | 24way | 520*250*15.5(27.5) | 498*230*90*1.0 | 6*10 | 13 | 12 | 8 |
| BEP-A 226 | 26way | 322*405*17.5(27.8) | 300*380*90*1.0 | 6*10 | 13 | 12 | 6 |
| BEP-A 232 | 32way | 375*405*17.5(27.8) | 354*380*90*1.0 | 6.4*12 | 16 | 15 | 7 |
| BEP-A 242 | 42way | 466*405*17.5(27.8) | 444*380*90*1.0 | 6.4*12 | 18 | 17 | 10 |
| BEP-A 348 | 48way | 393*650*17.5(29) | 363*620*100*1.2 | 6.4*12 | 2*10 | 2*11 | 8 |
| BEP-A 363 | 63way | 483*650*17.5(29.5) | 453*620*100*1.2 | 8*12 | 2*12 | 2*13 | 12 |
Company Demonstration
Application
BE series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| BEP-A 104 | 525*215*355 | 0.0401 | 10 | 9.58 | |
| BEP-A 110 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BEP-A 113 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BEP-A 116 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BEP-A 118 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BEP-A 121 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BEP-A 124 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BEP-A 226 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BEP-A 232 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BEP-A 242 | 510*160*460 | 0.0376 | 1 | 4.75 | |
| BEP-A 348 | 700*145*445 | 0.0452 | 1 | 7.61 | |
| BEP-A 363 | 700*145*535 | 0.0543 | 1 | 8.57 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
