Product Details:
|
| Product Name: | 16 Way Circuit Breaker Distribution Box | Material: | Metal+plastic |
|---|---|---|---|
| Function: | Power Charging | Din Rail: | Adjustable |
| Mounting Type: | Flush | Panel Material: | Plastic |
| Accessories: | Din Rail +teriminal | Protection Level: | IP40 |
| High Light: | IP40 16 way db box,flush mounting 16 way db box,16 way tpn mcb box |
||

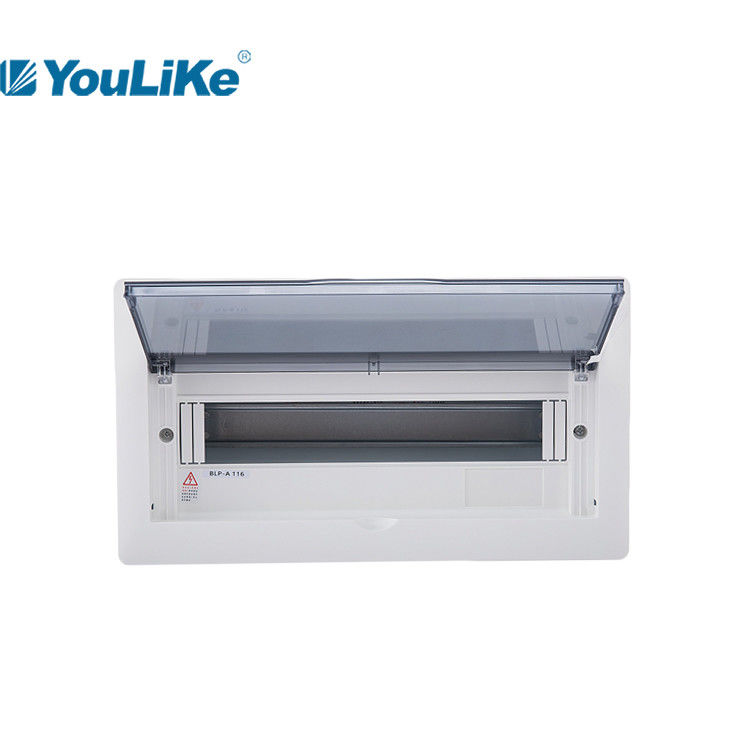

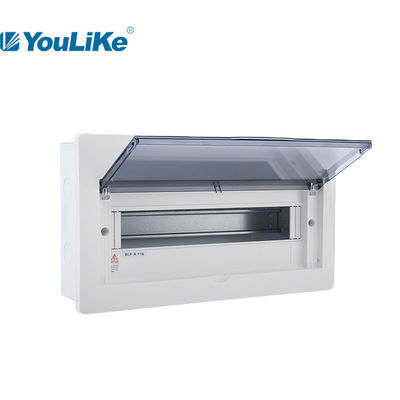

Flush Mounting 16 Way DB Box IP40 Protection For Power Charging Residential
Main Features
1. High impact resistance material: PC,ABS
2. Safe and full material copper terminals.
3. Adjustable din-rail: move ascend and descend
4. Ultra-large space box for moving and easy wiring.
5. Flush mounting and surface mounting available.
6. Function of Distribution box: protect MCB and other devices.
7. Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Product Specification
| Model | BLP-A116 |
| Ways | 16way |
| Color | white |
| Material | powder coated steel + HIPS |
| Base Box Size | 354*192*80*0.8mm |
| Cover Size | 376*210*17.5(26)mm |
| Approval | CE,CCC |
| Function | protect mcb to install |
| Installation Type | flush |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | available |

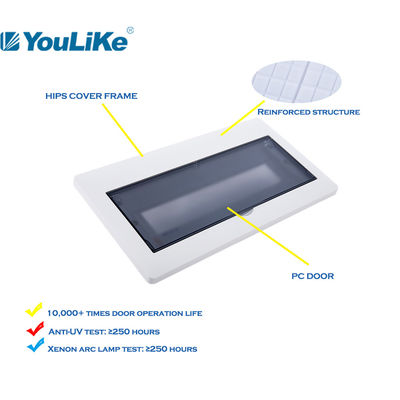

Product Details Demonstration
About Us
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Our Factory
Certifications
Packing
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
