Product Details:
|
| Product Name: | 10 Way Electrial Distribution Box | Door Material: | HIPS/PC |
|---|---|---|---|
| Cover Frame Material: | HIPS | Box Material: | 0.8&1.0mm Powder Coated Steel |
| Rated Current: | 55A/ 63A | Protection Level: | IP40 |
| Ceritification: | CCC | Rated Voltage: | 400V+/-20% |
| Feature: | Adjustable DIN Rail For Flush Mount Products | Mounting Type: | Flush Mounted |
| High Light: | Electrical Circuit Breaker Distribution Box,IP40 Circuit Breaker Distribution Box,Powder Painting 10 Way MCB Box |
||

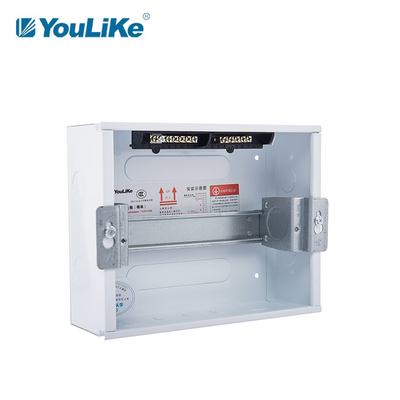

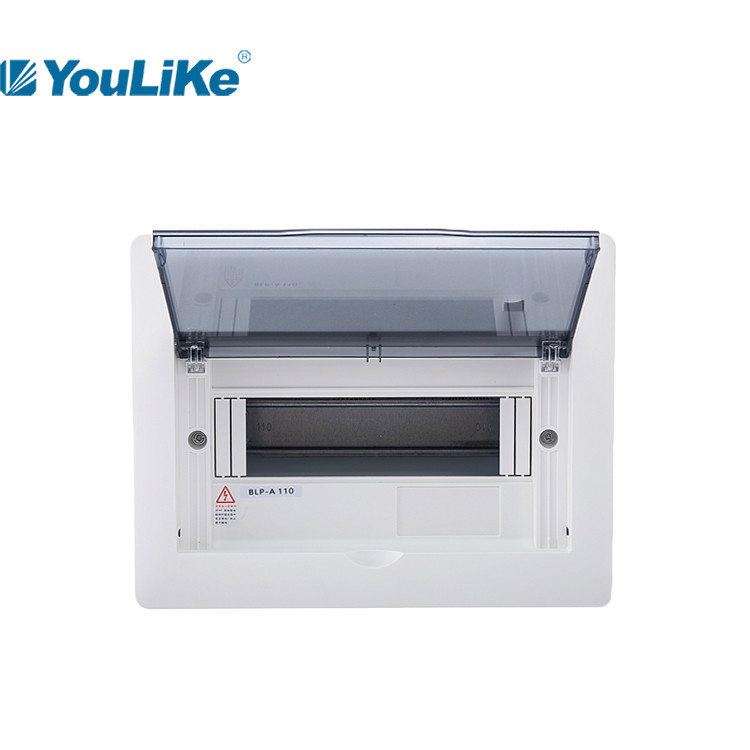

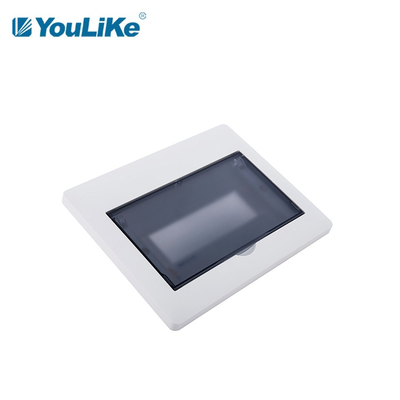

Low Voltage 10 Way White Powder Painting Electrical Circuit Breaker Distribution Box
Product Development Orientation
1. Standardized bottom bow installation.
2. Standardized equipment factory connection.
3. Standardized construction connection.
4. Standardized telecom installation.
Quality Assurance
1. national CCC certification standard
2. The plate thickness meets the national standard without error
3. All brand-new high-quality materials
4. The protection level reaches IP40
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of BL series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BLP-A 110 | 10way | 268*210*17.5(26) | 246*192*80*0.8 | 6*10.4 | 6 | 5 | 5 |
| BLP-A 113 | 13way | 322*210*17.5(26) | 300*192*80*0.8 | 6*10.4 | 6 | 5 | 6 |
| BLP-A 116 | 16way | 376*210*17.5(26) | 354*192*80*0.8 | 6*10.4 | 8 | 7 | 7 |
| BLP-A 118 | 18way | 412*210*17.5(26) | 390*192*80*0.8 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 121 | 21way | 466*210*17.5(26) | 444*192*80*0.8 | 6*10.4 | 11 | 10 | 10 |
| BLP-A 124 | 24way | 520*250*17.5(26.5) | 498*230*90*1.0 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 226 | 26way | 322*405*17.5(28.3) | 300*380*90*1.0 | 6*10.4 | 13 | 12 | 6 |
| BLP-A 232 | 32way | 375*405*17.5(28.3) | 354*380*90*1.0 | 6*10.4 | 13 | 12 | 7 |
| BLP-A 242 | 42way | 466*405*17.5(28.3) | 444*380*90*1.0 | 6*10.4 | 18 | 15 | 10 |
Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| BLP-A 110 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BLP-A 113 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BLP-A 116 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BLP-A 118 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BLP-A 121 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BLP-A 124 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BLP-A 226 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BLP-A 232 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BLP-A 242 | 510*160*460 | 0.0376 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
