Product Details:
|
| Product Name: | 10 Way Electrial Distribution Box | Cover Frame Material: | HIPS |
|---|---|---|---|
| Box Material: | 0.8&1.0mm Powder Coated Steel | Rated Current: | 55A/ 63A |
| Protection Level: | IP40 | Ceritification: | CCC |
| Rated Voltage: | 400V+/-20% | Feature: | Adjustable DIN Rail For Flush Mount Products |
| Mounting Type: | Flush Mounted | ||
| High Light: | Power Distribution Electrical 10 Way MCB Box,Metal Enclosure 10 Way MCB Box,Flush Mounted Electrial Distribution Box |
||

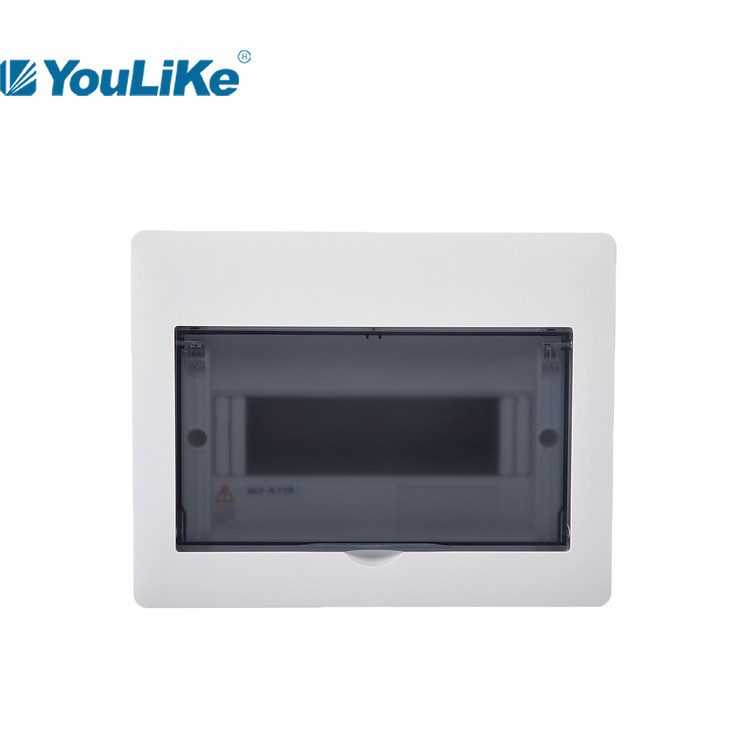

Power Distribution Electrical Equipment 10 Way Panel Boxes Metal Enclosure Flush Mounted
Main Features
1. Base box and cover: powder coated steel and HIPS plastic.
2. Safe and full material copper terminals
3. Adjustable din-rail:move ascend and descend
4. Ultra-large space box for moving and easy wiring
5. Flush mounting and surface mounting available
6. Function of Distribution box:protect MCB and other devices.
7. Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.

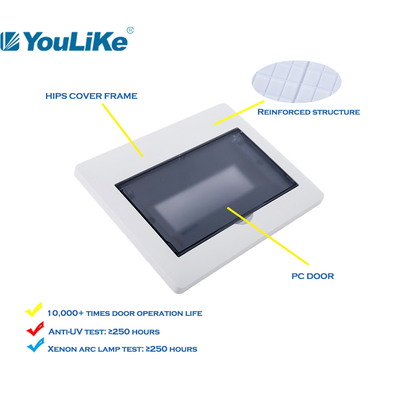

Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Product Parameters
| Model | BLP-A 110 |
| Mounting Type | flush mounting |
| Base Box Size | 246*192*80*0.8mm |
| Cover Size | 268*210*17.5(26)mm |
| Accessories | bolt, din rail , terminal |
| Application | residential and commercial buildings |
| Approval | CE,CCC |
| Circuit Breaker Rail | galvanised Steel |
| Feature | rustproof,high strength |
| Package | in color box or neutral carton |
| OEM | offered |
Specifications of BL series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BLP-A 110 | 10way | 268*210*17.5(26) | 246*192*80*0.8 | 6*10.4 | 6 | 5 | 5 |
| BLP-A 113 | 13way | 322*210*17.5(26) | 300*192*80*0.8 | 6*10.4 | 6 | 5 | 6 |
| BLP-A 116 | 16way | 376*210*17.5(26) | 354*192*80*0.8 | 6*10.4 | 8 | 7 | 7 |
| BLP-A 118 | 18way | 412*210*17.5(26) | 390*192*80*0.8 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 121 | 21way | 466*210*17.5(26) | 444*192*80*0.8 | 6*10.4 | 11 | 10 | 10 |
| BLP-A 124 | 24way | 520*250*17.5(26.5) | 498*230*90*1.0 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 226 | 26way | 322*405*17.5(28.3) | 300*380*90*1.0 | 6*10.4 | 13 | 12 | 6 |
| BLP-A 232 | 32way | 375*405*17.5(28.3) | 354*380*90*1.0 | 6*10.4 | 13 | 12 | 7 |
| BLP-A 242 | 42way | 466*405*17.5(28.3) | 444*380*90*1.0 | 6*10.4 | 18 | 15 | 10 |

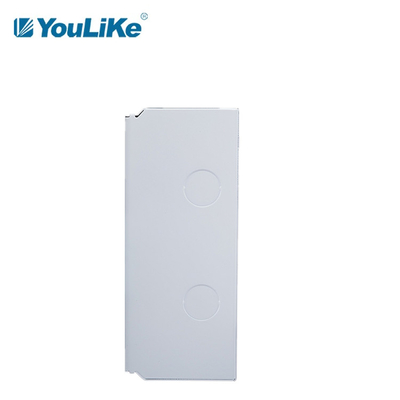

Product Details Demonstration
About Us
YouLike is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, switch box, MCB consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, CCC test.
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
