Product Details:
|
| Product Name: | Surface Mounted Electrical Distribution Board | Window Type: | Opaque |
|---|---|---|---|
| Rated Current: | 55A | Box Material: | 1.0mm Powder Coated Steel |
| Mounting: | Adjustable And Easy For Installation | Door Material: | ABS/PC |
| Application: | Used In Family,office,factory,hospital,public Building Etc | Feature: | Adjustable DIN Rail For Flush Mount Products |
| High Light: | Metal Electrical Power Distribution Box,18 Way Electrical Power Distribution Box,Indoor IP40 Electrical Distribution Boards |
||

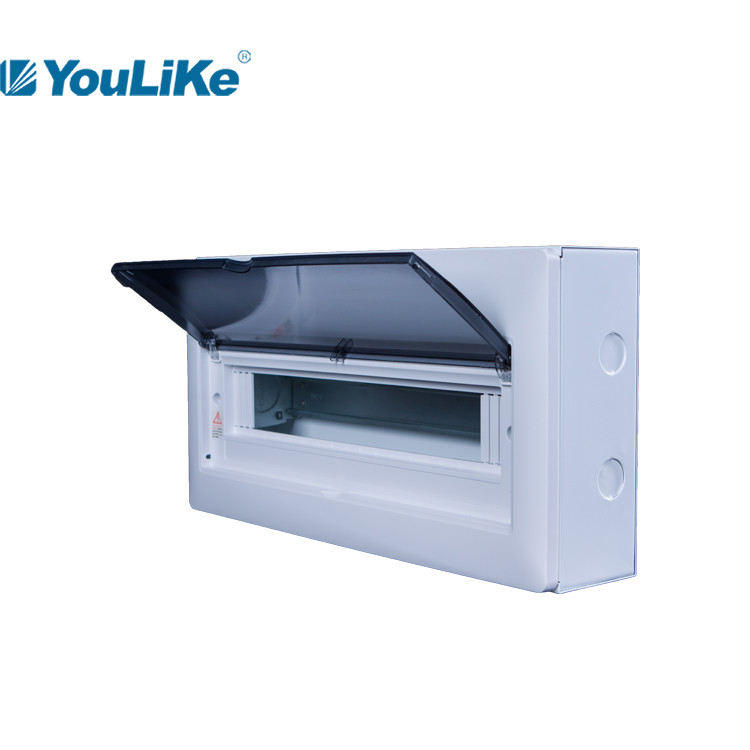

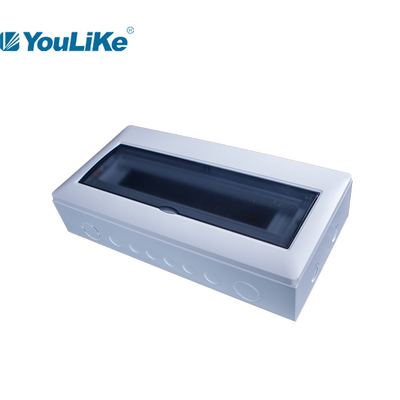

Electrical Consumer Unit Electrical Power Distribution Box IP40 18 Way Indoor
Product Features
1. Panel is the ABS material for engineering , high strength , never change color , the transparent materia is PC .
2. Cover push - type opening and closing
3. Face covering of the distribution box adopts the push - type opening and closing mode , the face mask can be opened by pressing lightly , the self - locking positioning hinge structure is provided when opening.
4. Wiring design of the power distribution box.
5. The guide rail support plate can be lifted to the higest movable point , it is no longer limited by the narrrow space when installing the wire . To install easily , the switch of the distribution box is set up with the wire grooves and wire pipe exitholes , whcih are easy to use for a variety of wire grooves and wire pipes.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Product Parameters
| Model | BEP-M 118 |
| Mounting Type | wall mounting |
| Base Box Size | 419×213×80×1.0mm |
| Cover Size | 420×214×18.5(24.0)mm |
| Carton Size | 520×235×450mm |
| Application | consumers and commercial buildings |
| Approval | CE,CCC |
| Copper Terminals | safe and full material |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | offered |
Specifications of BE series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-M 104 | 4way | 168×164×16.5(22.0) | 168×164×80×1.0 | 6*10 | 4 | 5 | 2 |
| BEP-M 107 | 7way | 222×214×18.5(24.0) | 221×213×80×1.0 | 6*10 | 7 | 6 | |
| BEP-M 110 | 10way | 276×214×18.5(24.0) | 275×213×80×1.0 | 6*10 | 8 | 7 | 7 |
| BEP-M 112 | 12way | 312×214×18.5(24.0) | 311×213×80×1.0 | 6*10 | 8 | 9 | 8 |
| BEP-M 114 | 14way | 348×214×18.5(24.0) | 347×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 116 | 16way | 384×214×18.5(24.0) | 383×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 118 | 18way | 420×214×18.5(24.0) | 419×213×80×1.0 | 6*10 | 13 | 12 | 10 |
| BEP-M 120 | 20way | 456×214×18.5(24.0) | 455×213×80×1.0 | 6*10 | 13 | 12 | 12 |
| BEP-M 228 | 28way | 351×381×19(26.5) | 350×380×95×1.2 | 6.4*12 | 16 | 15 | 9 |
| BEP-M 240 | 40way | 459×381×19(26.5) | 458×380×95×1.2 | 6.4*12 | 18 | 17 | 12 |
Product Description
About Us
YouLike is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, switch box, MCB consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, CCC test.
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
