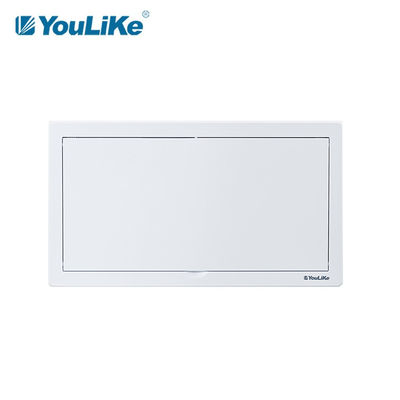

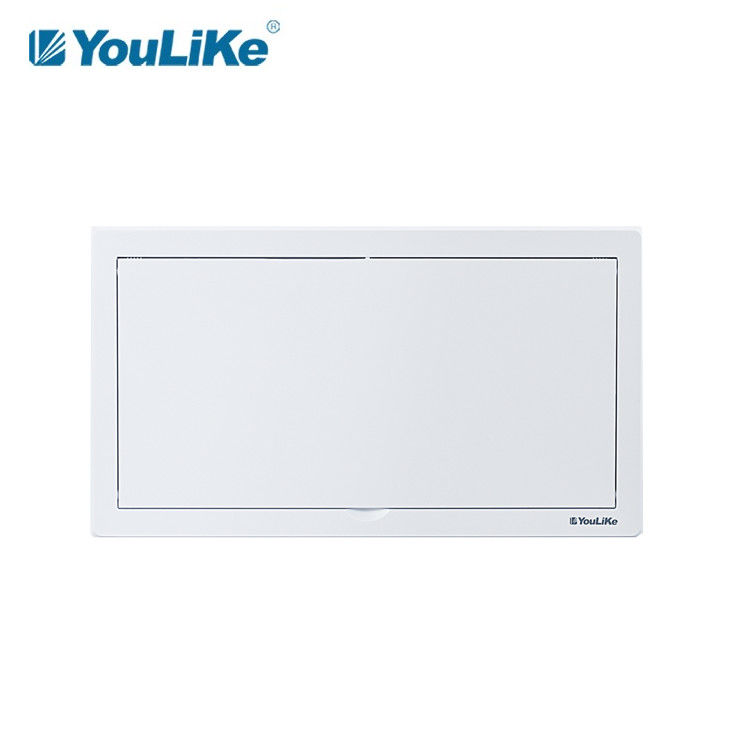

Product Details:
|
| Product Name: | 18 Way Flush Mounted Electrical Distribution Board | Way Dimension: | 18mm |
|---|---|---|---|
| Environment Temperature: | -25℃～50℃ | Color: | White |
| Air Relative Humidity: | ＜90% | Place Of Origin: | Guangdong,China |
| Cooper Bar Style: | Single | Box Material: | 1.0&1.2mm Powder Coated Steel |
| Door Material: | HIPS | ||
| High Light: | IP40 waterproof mcb box,18way waterproof mcb box,18way distribution fuse board |
||
Electrical Box 18 Way Electrical Distribution Box Electrical Distribution Box Plastic
Product Characteristics
1. Box to be available for powder coated steel, with 1.0mm thickness.
2. Cover frame to be available for HIPS material.
3. Door to be available for HIPS material( color white).
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. Protection level reaches IP40.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
Production Description
| Series | P3-A-118 |
| Ways | 18way |
| Color | white |
| Base Box Size | 354*380*90*1.0mm |
| Cover Size | 420×240×10(27.5)mm |
| Accessories | bolt, din rail, terminal |
| Function | protect MCB and other devices |
| Application | residentail /commerical |
| Package | in color box or neutral carton |
| OEMa | accepted |

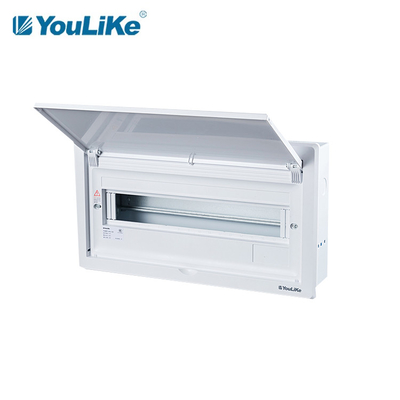

Production Image
Specifications of P3 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
P3-A 112 |
12way | 312×230×10(27.5) | 292×210×90×1.0 | 6×10.4 | 8 | 7 | 6 |
|
P3-A 115 |
15way | 366×240×10(27.5) | 346×220×90×1.0 | 6×10.4 | 8 | 7 | 7 |
|
P3-A 118 |
18way | 420×240×10(27.5) | 400×220×90×1.0 | 6×10.4 | 11 | 10 | 9 |
|
P3-A 121 |
21way | 474×240×10(27.5) | 454×220×90×1.0 | 6×10.4 | 11 | 10 | 10 |
|
P3-A 124 |
24way | 528×250×10(27.5) | 508×230×90×1.0 | 6×10.4 | 13 | 12 | 10 |
|
P3-A 226 |
26way | 348×400×10(27.5) | 328×380×90×1.0 | 6×10.4 | 13 | 12 | 6 |
|
P3-A 232 |
32way | 402×400×10(27.5) | 382×380×90×1.0 | 6.4×12 | 16 | 15 | 7 |
|
P3-A 242 |
42way | 492×400×10(27.5) | 472×380×90×1.0 | 6.4×12 | 18 | 17 | 10 |
About Us
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
