Product Details:
|
| Product Name: | Flush Mounted Electrical Distribution Board | Environment Temperature: | -25℃～50℃ |
|---|---|---|---|
| Air Relative Humidity: | ＜90% | Place Of Origin: | Guangdong,China |
| Hinge Operation Test: | 10000times | Cooper Bar Style: | Single |
| Mounting Type: | Flush Mounted | Box Material: | 1.0&1.2mm Powder Coated Steel |
| Door Material: | HIPS | ||
| High Light: | 15Way Electrical Distribution Boards,15 Way outdoor junction box |
||

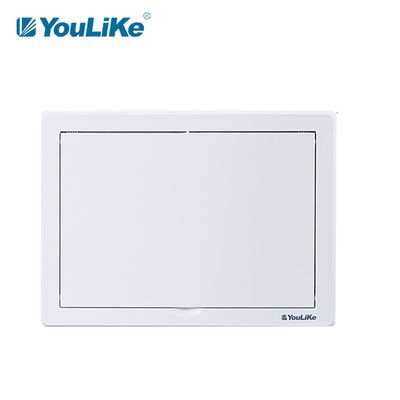

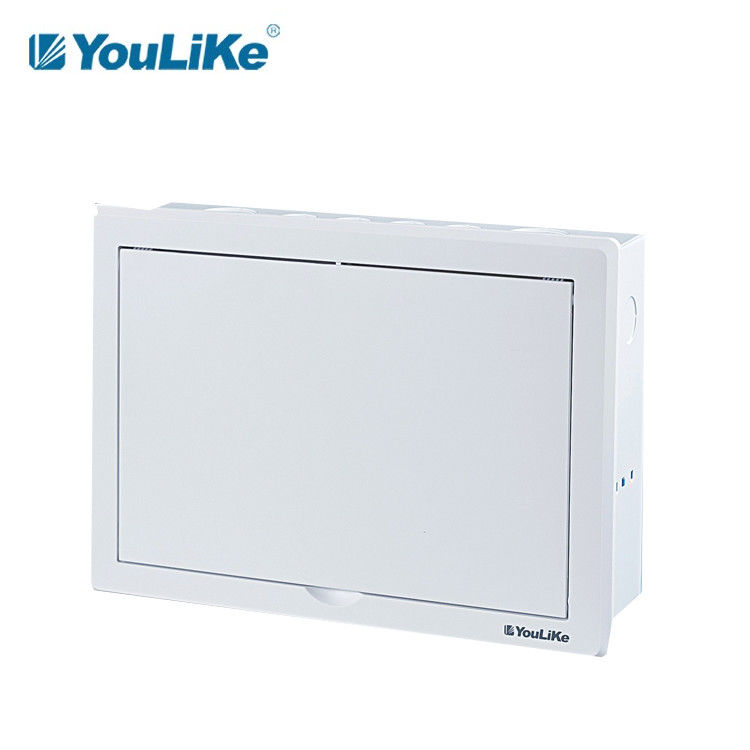

Low Price Board Flush Mounted Junction Connection Single Phase 15way Electric Distribution Box
Product Appearance
1. The panel is a split structure, which is composed of panel outer frame, movable door and panel partition.
2. The panel is 15.5mm higher than the wall as a whole, and the thinnest part of the edge is 9.5mm. The overall appearance has clear edges and corners, fine frosted texture on the surface, and gives people a sense of simplicity and lasting beauty.

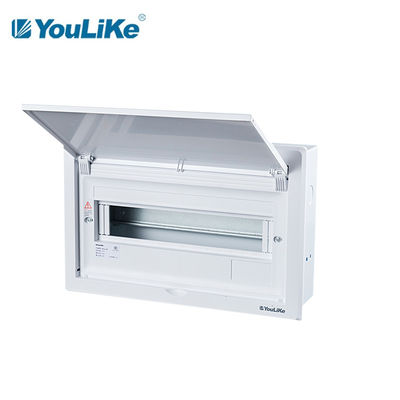

3. After the movable door is opened, the internal concave arc surface with fine texture not only highlights the integrity of the internal and external sensory design, but also shows the exquisite design of the panel strength.
Product Advantage
1. Strong box for durability.
2. Curved panel, matte process.
3. Rail btacket to prevent deformation.
4. High-quality copper bar, sturdy and durable.
5. Optimize the details to meet your needs.
Application
P3 series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.

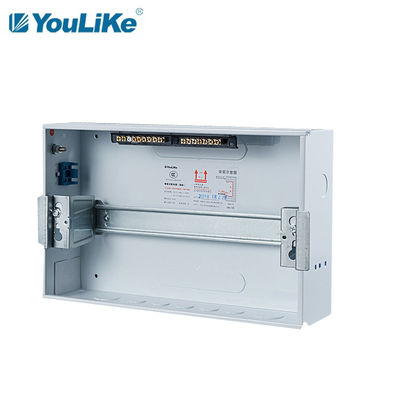

1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Metal metal spring plate to provide extra service life of plastic hinges.
Specifications of P3 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
P3-A 112 |
12way | 312×230×10(27.5) | 292×210×90×1.0 | 6×10.4 | 8 | 7 | 6 |
|
P3-A 115 |
15way | 366×240×10(27.5) | 346×220×90×1.0 | 6×10.4 | 8 | 7 | 7 |
|
P3-A 118 |
18way | 420×240×10(27.5) | 400×220×90×1.0 | 6×10.4 | 11 | 10 | 9 |
|
P3-A 121 |
21way | 474×240×10(27.5) | 454×220×90×1.0 | 6×10.4 | 11 | 10 | 10 |
|
P3-A 124 |
24way | 528×250×10(27.5) | 508×230×90×1.0 | 6×10.4 | 13 | 12 | 10 |
|
P3-A 226 |
26way | 348×400×10(27.5) | 328×380×90×1.0 | 6×10.4 | 13 | 12 | 6 |
|
P3-A 232 |
32way | 402×400×10(27.5) | 382×380×90×1.0 | 6.4×12 | 16 | 15 | 7 |
|
P3-A 242 |
42way | 492×400×10(27.5) | 472×380×90×1.0 | 6.4×12 | 18 | 17 | 10 |
Company Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| P3-A 112 | 655×300×385 | 0.0756 | 5 | 17.10 | |
| P3-A 115 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| P3-A 118 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| P3-A 121 | 655×310×545 | 0.1107 | 5 | 11.65 | |
| P3-A 124 | 655×320×600 | 0.1258 | 5 | 12.40 | |
| P3-A 226 | 460×135×385 | 0.0240 | 1 | 5.40 | |
| P3-A 232 | 460×135×440 | 0.0273 | 1 | 6.70 | |
| P3-A 242 | 460×135×530 | 0.0329 | 1 | 3.60 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
