Product Details:
|
| Product Name: | Flush Mounted Electrical Distribution Board | Mounting Type: | Surface Mounted |
|---|---|---|---|
| Terminal Dimension: | 6×10.4mm | Panel Base Material: | HIPS |
| Color: | White | Way Dimension: | 18mm |
| Box Material: | 1.0&1.2mm Powder Coated Steel | Door Material: | HIPS |
| Cooper Bar Style: | Single | ||
| High Light: | IP40 24 Way DB Box,Double Phase 24 Way DB Box,IP40 24 Way Distribution Board |
||

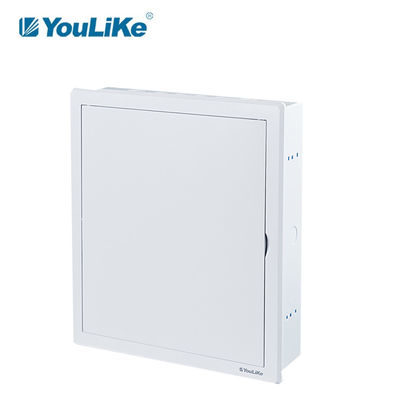

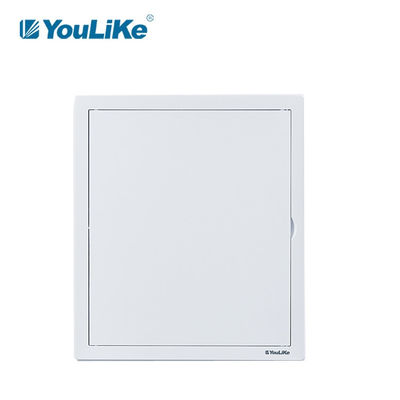

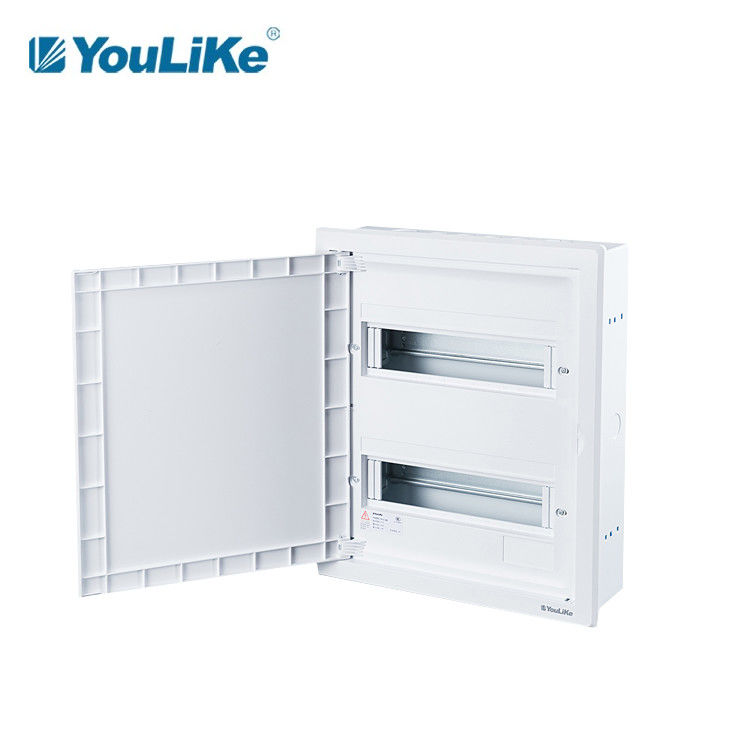

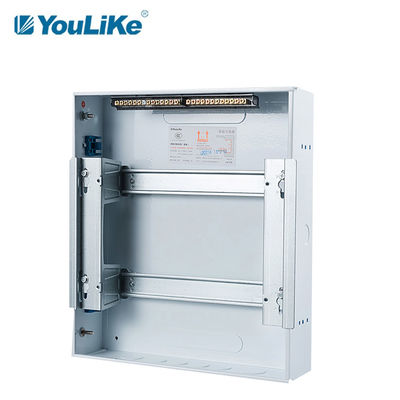

IP40 Flush Mounted Double Phase Mcb Electrical Power Distribution Panelboard Box 24 Way Db Box
Quality Assurance
1. national CCC certification standard.
2. The plate thickness meets the national standard without error.
3. All brand-new high-quality materials.
4. The protection level reaches IP40.
Product Advantage
1. Select the copper bar with 60% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
Specifications of P3 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
P3-A 112 |
12way | 312×230×10(27.5) | 292×210×90×1.0 | 6×10.4 | 8 | 7 | 6 |
|
P3-A 115 |
15way | 366×240×10(27.5) | 346×220×90×1.0 | 6×10.4 | 8 | 7 | 7 |
|
P3-A 118 |
18way | 420×240×10(27.5) | 400×220×90×1.0 | 6×10.4 | 11 | 10 | 9 |
|
P3-A 121 |
21way | 474×240×10(27.5) | 454×220×90×1.0 | 6×10.4 | 11 | 10 | 10 |
|
P3-A 124 |
24way | 528×250×10(27.5) | 508×230×90×1.0 | 6×10.4 | 13 | 12 | 10 |
|
P3-A 226 |
26way | 348×400×10(27.5) | 328×380×90×1.0 | 6×10.4 | 13 | 12 | 6 |
|
P3-A 232 |
32way | 402×400×10(27.5) | 382×380×90×1.0 | 6.4×12 | 16 | 15 | 7 |
|
P3-A 242 |
42way | 492×400×10(27.5) | 472×380×90×1.0 | 6.4×12 | 18 | 17 | 10 |
Powder Coating Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| P3-A 112 | 655×300×385 | 0.0756 | 5 | 17.10 | |
| P3-A 115 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| P3-A 118 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| P3-A 121 | 655×310×545 | 0.1107 | 5 | 11.65 | |
| P3-A 124 | 655×320×600 | 0.1258 | 5 | 12.40 | |
| P3-A 226 | 460×135×385 | 0.0240 | 1 | 5.40 | |
| P3-A 232 | 460×135×440 | 0.0273 | 1 | 6.70 | |
| P3-A 242 | 460×135×530 | 0.0329 | 1 | 3.60 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Profile
1. YOULIKE founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
