Product Details:
|
| Product Name: | 10 Way Distribution Box | Anti-tarnishing: | Level 4 |
|---|---|---|---|
| Hinge Operation: | 10000 Times | Way Dimension: | 18mm |
| Mounting Type: | Flush Mounted | Certificate: | CE, CCC |
| Box Material: | 1.0&1.2mm Powder Coated Steel | Door Material: | ABS |
| High Light: | Flush Mount 10 Way MCB Box,PC 10 Way MCB Box,Flush Mount pc distribution box |
||

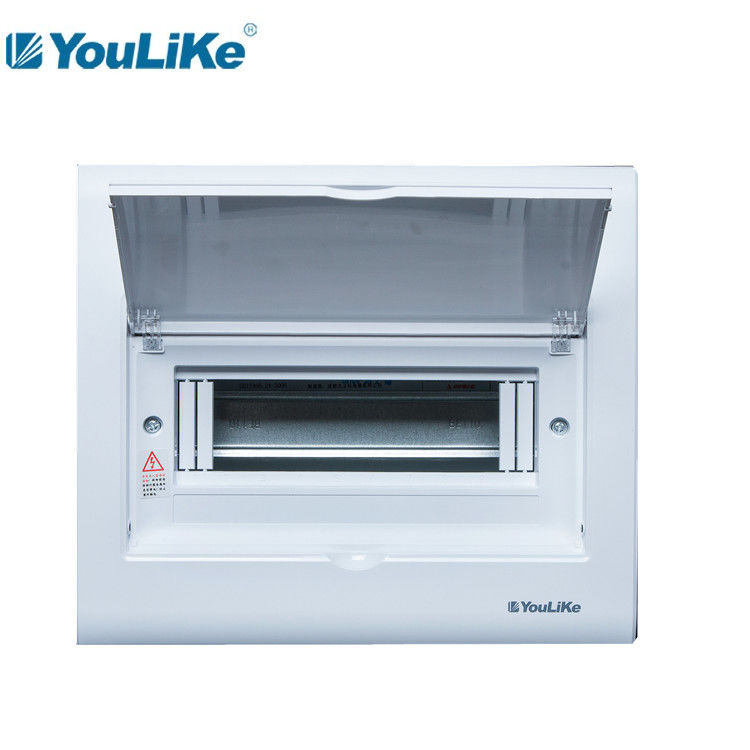

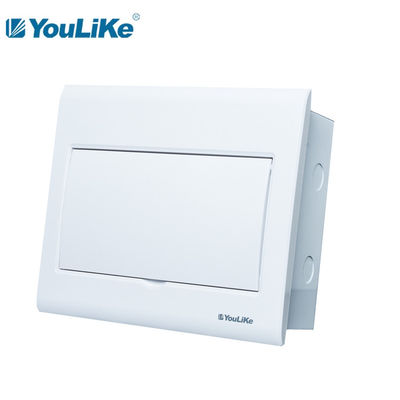

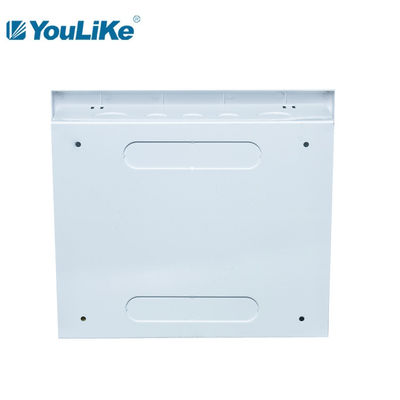

Protection Level 40 PC Cover 10Ways Distribution Box Indoor Flush Mount MCB Box
Product Advantage
1. Strong box for durability.
2. Curved panel, matte process.
3. Rail btacket to prevent deformation.
4. High-quality copper bar, sturdy and durable.
5. Optimize the details to meet your needs.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specifications of M3 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
M3-A 110 |
10way | 278×240×20.0(29.0) | 256×210×90×1.0 | 6×10.4 | 8 | 9 | 5 |
|
M3-A 112 |
12way | 316×240×20.0(29.0) | 292×210×90×1.0 | 6×10.4 | 8 | 9 | 6 |
|
M3-A 114 |
14way | 352×240×20.0(29.0) | 328×210×90×1.0 | 6×10.4 | 8 | 9 | 7 |
|
M3-A 116 |
16way | 388×252×20.0(29.0) | 364×210×90×1.0 | 6×10.4 | 11 | 12 | 7 |
|
M3-A 118 |
18way | 424×252×20.0(29.0) | 400×210×90×1.0 | 6×10.4 | 11 | 12 | 10 |
|
M3-A 120 |
20way | 460×252×20.0(29.0) | 436×210×90×1.0 | 6×10.4 | 11 | 12 | 10 |
|
M3-A 224 |
24way | 316×415×22.3(31.3) | 292×380×90×1.0 | 6.4×12 | 12 | 13 | 8 |
|
M3-A 232 |
32way | 388×415×22.3(31.3) | 364×380×90×1.0 | 6.4×12 | 14 | 15 | 10 |
|
M3-A 240 |
40way | 460×415×22.3(31.3) | 436×380×90×1.0 | 6.4×12 | 17 | 18 | 12 |
Company Overview Demonstration
Application
M3 series mainly used for indoor lighting control for residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 6% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Plastic wire clamps is equiped below the din rail.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M3-A 110 | 595×300×515 | 0.0919 | 10 | 17.10 | |
| M3-A 112 | 595×340×515 | 0.1042 | 10 | 9.25 | |
| M3-A 114 | 595×260×380 | 0.0588 | 5 | 10.20 | |
| M3-A 116 | 595×275×420 | 0.0687 | 5 | 11.65 | |
| M3-A 118 | 595×275×455 | 0.0744 | 5 | 12.40 | |
| M3-A 120 | 595×275×490 | 0.0801 | 5 | 5.40 | |
| M3-A 224 | 465×155×375 | 0.0270 | 1 | 6.70 | |
| M3-A 232 | 465×155×445 | 0.0327 | 1 | 3.60 | |
| M3-A 240 | 465×155×520 | 0.0375 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
