Product Details:
|
| Product Name: | Standing Electrical Distribution Panel Board | Box Material: | Powder Coated Steel |
|---|---|---|---|
| Hinge: | Zinc Alloy | Certificatie: | CCC,CE |
| Installation Type: | Floor Type | Surface Treatment: | Powder Coating |
| Color: | RAL7035 | Protection Level: | IP40 |
| High Light: | Standardized Distribution Board Enclosure,21 Cabinet Distribution Board Enclosure,Standardized floor distribution board |
||

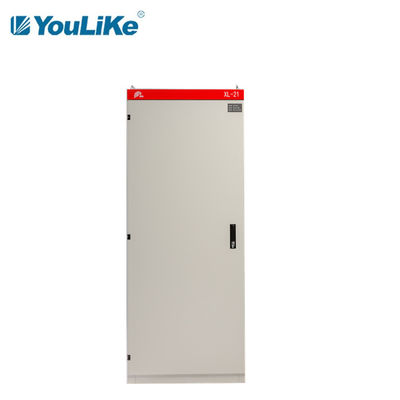

Great Standard Distribution Industrial Welding Table Wall Electrical Cabinet With 21 Cabinet
Product Characteristics
1. Box material: powder coated steel.
2. components installation strip: zinc alloy material.
3. Box body color: RAL7035.
4. Mounting type: floor type.
5. Protection level: IP40.
6. Lock: MS480 disc lock, color black, zinc alloy material.
7. Grounding screw: M8×16 grounding screw at the bottom left of the cabinet.
Configuration Description
1. Bridge cover plate: it is used for incoming and outgoing lines to pass through the knockout hole or bridge hole in the threading seal plate. (the default product has no opening. If demander wants to open a hole, please provide the opening drawing).
2. Terminal support: (RG10-21) (RG11-21) two secondary terminal supports are welded on the upper part of the left side plate, with a spacing of 400mm.
Specification of RG11-21 series floor type distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Mounting strip dimension(mm) | Quantity | |||
| Width | Height | Depth | Box/Door/mounting plate | Width -35 | Height-60 | pcs | ||
| #1 |
RG10-216012037 |
600 | 1200 | 370 | 1.2/1.5/1.5 | 565 | 60 | 5 |
|
RG11-216012037 |
||||||||
| #2 |
RG10-216014037 |
600 | 1400 | 565 | 7 | |||
|
RG11-216014037 |
||||||||
| #3 |
RG10-216016037 |
600 | 1600 | 565 | 8 | |||
|
RG11-216016037 |
||||||||
| #4 |
RG10-217015037 |
700 | 1500 | 665 | ||||
|
RG11-217015037 |
||||||||
| #5 |
RG10-217017037 |
700 | 1700 | 665 | ||||
|
RG11-217017037 |
||||||||
| #6 |
RG10-218018037 |
800 | 1800 | 765 | 9 | |||
|
RG11-218018037 |
||||||||
| #7 |
RG10-216016042 |
600 | 1600 | 42 | 565 | 8 | ||
|
RG11-216016042 |
||||||||
| #8 |
RG10-217017042 |
700 | 1700 | 665 | ||||
|
RG11-217017042 |
||||||||
| #9 |
RG10-218018042 |
800 | 1800 | 765 | 9 | |||
|
RG11-218018042 |
||||||||
| #10 |
RG10-218020042 |
800 | 2000 | 765 | ||||
|
RG11-218020042 |
||||||||
Product Detail Demonstration
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
