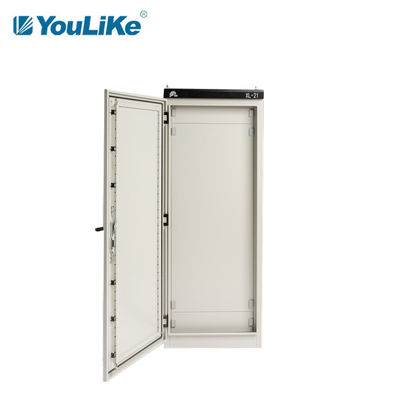

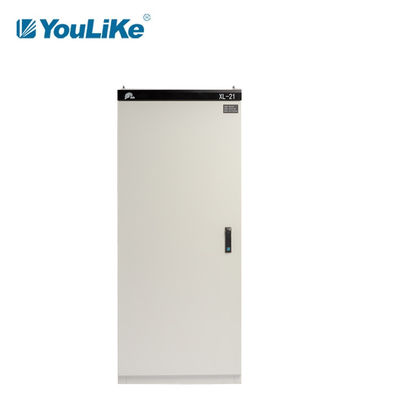

Product Details:
|
| Product Name: | Floor Type Power Distribution Board | Door Lock Material: | Equipped With Flat Lock Rod |
|---|---|---|---|
| Grounding Screw: | M8×16 | Installation Type: | Floor Type |
| Surface Treatment: | Powder Coating | Color: | RAL7035 |
| Protection Level: | IP40 | Size: | Customized |
| High Light: | Vertical Distribution Board Enclosure,customized Distribution Board Enclosure,customized industrial power distribution board |
||
Protection Level 40 Electrical Control Cabinet Outdoor Power Enclosure Electrical Distribution Box Electrical Cabinet
Box Body Structure
1. Removable movable back panel.
2. Tilted detachable brow.
3. With movable bottom cover.
4. With rings.
5. File box.
Product Characteristics
1. Box to be powder coated steel,
2. Folding style: folding outwards.
3. Floor mounting hole: located at bottom of box body.

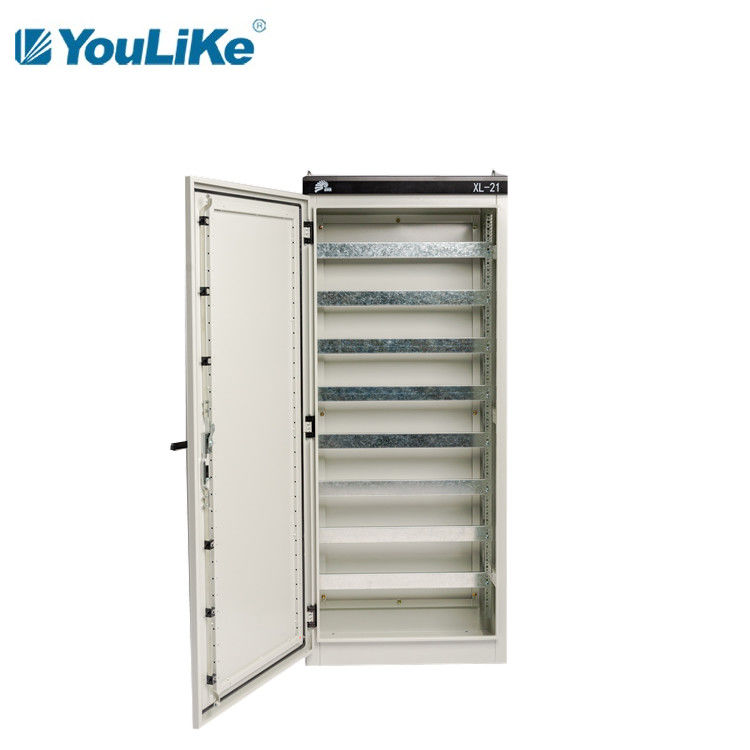

4. components installation strip: for electical components installation.
5. Back of box body: removable ,convenient for electrical installation.
6. Components mounting strip &cover: galvanized sheet.
Door Configuration
1. Folding style: dual folding.
2. Reinforcing ribs: 4 reinforcing ribs are compatible with the cable tie function.
3. Grounding screw: M8×16 grounding screw at the bottom left of the cabinet.
4. Lock : MS480,color black, bar type lock, zinc alloy material.
5. Foamed tape: for noise reduction and dust prevention.
Specification of BG13-21 series floor type distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Mounting strip dimension(mm) | Quantity | |||
| Width | Height | Depth | Box/Door/mounting plate | Width -35 | Height-60 | pcs | ||
| #1 |
BG13-216012037 |
600 | 1200 | 375 | 1.5/1.5/1.5 |
565 | 60 | 5 |
| #2 |
BG13-216014037 |
600 | 1400 | 565 | 7 | |||
| #3 |
BG13-216016037 |
600 | 1600 | 565 | 8 | |||
| #4 |
BG13-217015037 |
700 | 1500 | 665 | ||||
| #5 |
BG13-217017037 |
700 | 1700 | 665 | ||||
| #6 |
BG13-218018037 |
800 | 1800 | 765 | 9 | |||
| #7 |
BG13-216016042 |
600 | 1600 | 425 | 565 | 8 | ||
| #8 |
BG13-217017042 |
700 | 1700 | 665 | ||||
| #9 |
BG13-218018042 |
800 | 1800 | 765 | 9 | |||
| #10 |
BG13-218020042 |
800 | 2000 | 765 | ||||
Product Detail Demonstration
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
