Product Details:
|
| Product Name: | Floor Type Power Distribution Cabinet | Door Lock Material: | Zinc Alloy |
|---|---|---|---|
| Installation Type: | Floor Type | Surface Treatment: | Powder Coating |
| Box Material: | 1.2mm Powder Coated Sheet | Color: | RAL7035 |
| Protection Level: | IP40 | Size: | Customized |
| High Light: | 1.2mm power distribution enclosure,IP40 power distribution enclosure,IP40 Power Distribution Box |
||

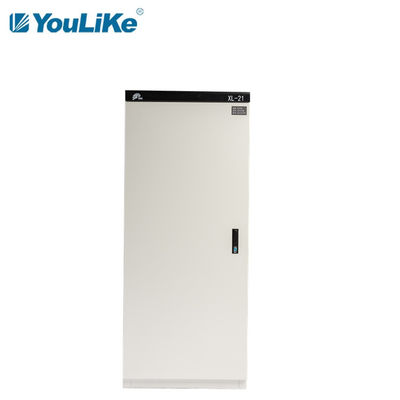

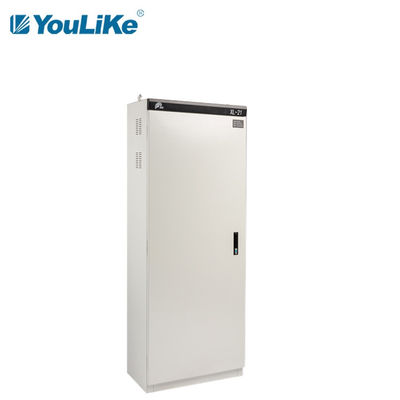

Floor Type IP40 electrical metal enclosure power distribution electrical cabinet price
Product Characteristics
1. Folding style: folding outwards.
2. Floor mounting hole: located at bottom of box body.
3. components installation strip: for electical components installation.
4. Back of box body: removable ,convenient for electrical installation.
Door Feature
1. Folding style: dual folding.
2. Reinforcing ribs: 4 reinforcing ribs are compatible with the cable tie function.
3. Grounding screw: M8×16 grounding screw at the bottom left of the cabinet.
4. Lock : MS480,color black, bar type lock, zinc alloy material.
5. Foamed tape: for noise reduction and dust prevention.

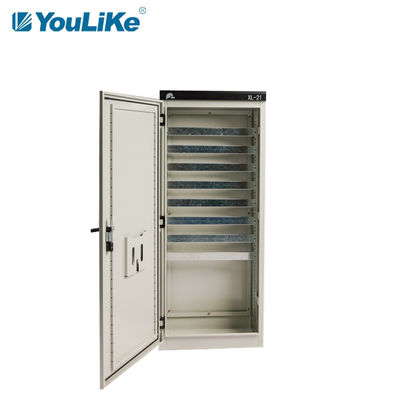

Box Body Structure
1. Removable movable back panel.
2. Tilted detachable brow.
3. With movable bottom cover.
4. With rings.
5. File box.
Specification of BG12-21 series floor type distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Mounting strip dimension(mm) | Quantity | |||
| Width | Height | Depth | Box/Door/mounting plate | Width -35 | Height-60 | pcs | ||
| #1 |
BG12-216012037 |
600 | 1200 | 375 | 1.5/1.5/1.5 |
565 | 60 | 5 |
| #2 |
BG12-216014037 |
600 | 1400 | 565 | 7 | |||
| #3 |
BG12-216016037 |
600 | 1600 | 565 | 8 | |||
| #4 |
BG12-217015037 |
700 | 1500 | 665 | ||||
| #5 |
BG12-217017037 |
700 | 1700 | 665 | ||||
| #6 |
BG12-218018037 |
800 | 1800 | 765 | 9 | |||
| #7 |
BG12-216016042 |
600 | 1600 | 425 | 565 | 8 | ||
| #8 |
BG12-217017042 |
700 | 1700 | 665 | ||||
| #9 |
BG12-218018042 |
800 | 1800 | 765 | 9 | |||
| #10 |
BG12-218020042 |
800 | 2000 | 765 | ||||
Product Detail Demonstration
