Product Details:
|
| Product Name: | Flush Mount MCB Distribution Box | Mounting Type: | Flush Mount |
|---|---|---|---|
| Color: | Golden /white | Box Material: | 1.0mm Powder Coated Steel |
| Cover Frame Material: | HIPS | Door Material: | HIPS |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| High Light: | 2 Row mcb panel board,Domestic mcb panel board,MCB industrial distribution board |
||

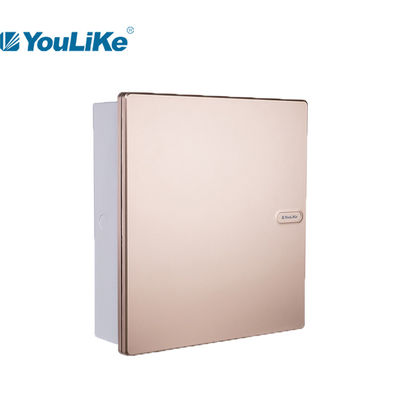

2 Row Protection Level Flush Mount Golden Color Domestic MCB Distribution Box Consumer Unit
Product Characteristics
1. Box to be available for powder coated steel, with 1.0mm thickness.
2. Cover frame to be available for HIPS material.
3. Door to be available for HIPS, both white door and golden door.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. High purity zero line flow discharge.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specifications of M7 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M7-A 112 | 12way | 316*240*22.5 | 292*210*90*1.0 | 6*10 | 8 | 7 | 6 |
| M7-A 115 | 15way | 370*260*22.5 | 346*220*90*1.0 | 6*10 | 8 | 9 | 7 |
| M7-A 118 | 18way | 424*260*22.5 | 400*220*90*1.0 | 6*10 | 11 | 10 | 9 |
| M5-A 121 | 21way | 478*260*22.5 | 454*220*90*1.0 | 6*10 | 11 | 10 | 10 |
| M7-A 232 | 32way | 376*405*23.5 | 354*380*90*1.0 | 6.4*12 | 16 | 15 | 7 |
| M7-A 242 | 42way | 466*405*23.5 | 444*380*90*1.0 | 6.4*12 | 18 | 17 | 10 |

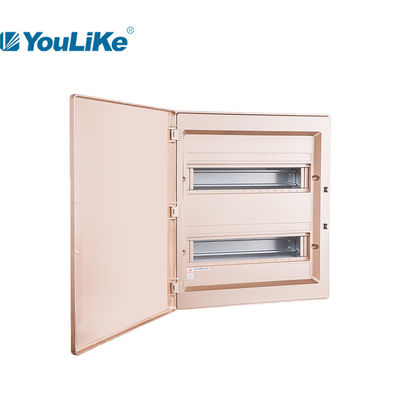

Product Details Demonstration
M7 series is used for indoor power distribution mainly for lighting control.
#1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
#2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
#3. Stainless earthing bolts with warning label.

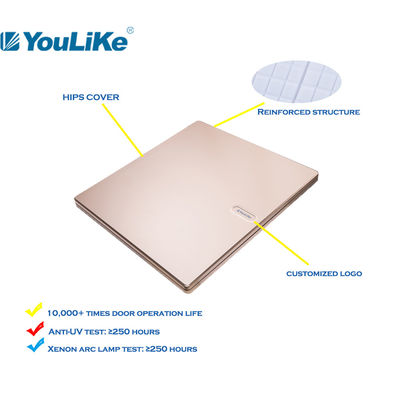

#4. Reinforced structure design to allow higher tensile strength of plastic cover.
#5. Both golden color and white color available (golden color is with higher cost).
#6. Double bending reinforcing edges of left and right box openings.
#7. Integrated graphic design,clean and atmospheric appearance.
Application
Mainly used for indoor lighting control for residential and commercial buildings.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M7-A 112 | 640*345*525 | 0.1160 | 10 | 17.10 | |
| M7-A 115 | 640*285*410 | 0.0748 | 5 | 9.25 | |
| M7-A 118 | 640*285*465 | 0.0849 | 5 | 10.20 | |
| M7-A 121 | 640*285*515 | 0.0940 | 5 | 11.65 | |
| M7-A 232 | 460*150*440 | 0.0304 | 1 | 4.05 | |
| M7-A 242 | 525*150*470 | 0.0371 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
