Product Details:
|
| Product Name: | Weak Multimedia Distribution Box | Box Material: | 1.0/0.8mm Powder Coated Steel |
|---|---|---|---|
| Cover Frame Material: | ABS/HIPS | Door Material: | ABS/HIPS |
| Rated Voltage: | 400V+/-20% | Door Open Angle: | 180° |
| Working Temperature: | Working Temperature | Mounting Type: | Flush |
| High Light: | CCC Multimedia Distribution Box,Weak Current Multimedia Distribution Box,CCC fiber optic distribution box |
||

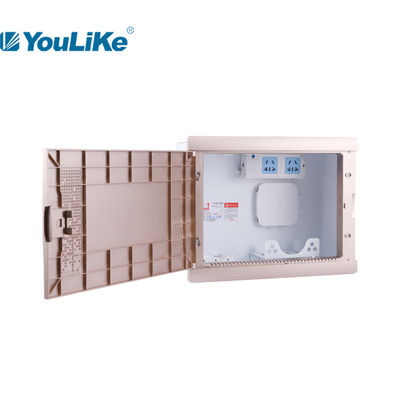

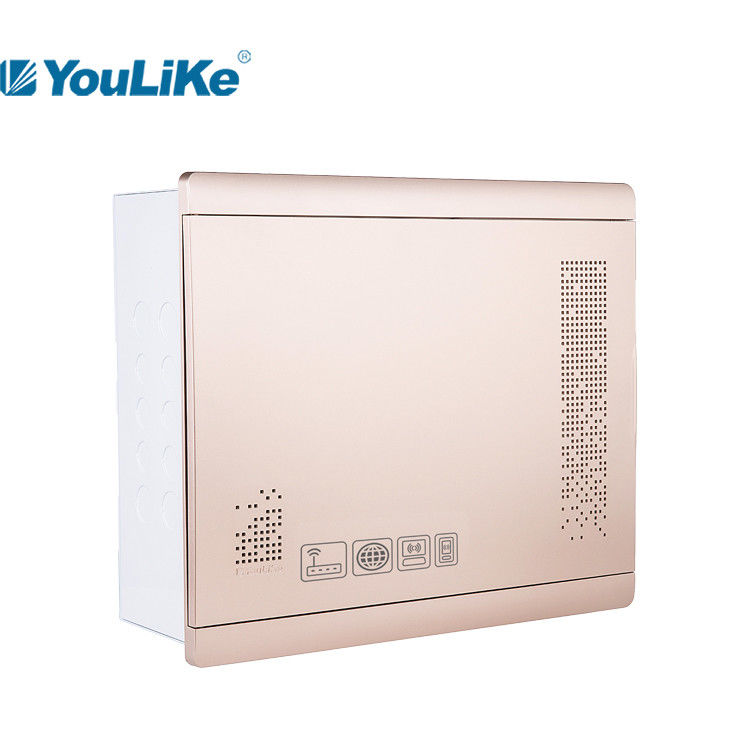

Flush Mounting New Intelligent Weak Current Network Fiber Optic Multimedia Information Wiring Box Distribution Box
Application
DMT-T/G series is used for indoor TV, telephone and network distribution for house/apartment usage.

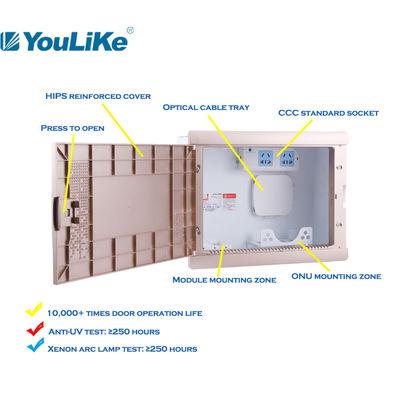

1. ONU mounting bracket is powder coated steel.
2. Optical cable tray is used for optical cable wiring isolation from other components.
3. PDU is as per CCC standard and optionla for clients in case it is unworkable.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Module mounting stand is plastic and modules to be fix by screws.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Company profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of DMT-T/G series, Flush
| Model | Cover material | Cover size | Box size |
Max. Module install capacity |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | one side qty | |||||
| DMT-TS | HIPS | 345*270*16(31) | 325*250*100*0.8 | 3U | 16 | ||
| DMT-GS | ABS | 325*250*120*1.0 | 4U | 18 | |||
| DMT-TM | HIPS | 375*320*16(31) | 350*300*100*0.8 | 4U | 17 | ||
| DMT-GM | ABS | 350*300*120*1.0 | 4U | 20 | |||
| DMT-TL | HIPS | 425*320*16(31) | 400*300*100*0.8 | 4U | 19 | ||
| DMT-GL | ABS | 400*300*120*1.0 | 4U | 22 | |||
Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| DMT-TS | 405*150*340 | 0.0207 | 1 | 9.58 | |
| DMT-TM | 440*150*390 | 0.0258 | 1 | 14.66 | |
| DMT-TL | 485*150*390 | 0.0284 | 1 | 17.10 | |
| DMT-GS | 405*170*340 | 0.0234 | 1 | 9.25 | |
| DMT-GM | 440*170*390 | 0.0292 | 1 | 10.20 | |
| DMT-GL | 485*170*390 | 0.0322 | 1 | 11.65 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
