Product Details:
|
| Box Material: | 1.0mm Powder Coated Steel | Cover Frame Material: | ABS |
|---|---|---|---|
| Door Material: | ABS | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Protection Level: | IP30 |
| High Light: | IP30 Flush Mount Distribution Box,400V Flush Mount Distribution Box,400V flush mount junction box |
||
Product Characteristics
1. Box to be available for powder coated steel, 1.0mm thickness.
2. Cover as well as internal clapboard (divide internal space into two seperate ones)to be available for ABS material.
3. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
4. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specifications of DMT-N series, Flush
| Model | Cover material | Cover size | Box size |
Max. Module install capacity |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | one side qty | |||||
| DMT-NS | ABS | 365*300*19(37.5) | 330*260*100*1.0 | 0 | 16 | ||
| DMT-NM | ABS | 395*340*19(37.5) | 360*300*100*1.0 | 2U | 18 | ||
| DMT-NL | ABS | 455*340*19(37.5) | 420*300*100*1.0 | 5U | 22 | ||
| DMT-NXL | ABS | 520*420*10(20) | 500*400*120*1.0 | 8U | 24 | ||

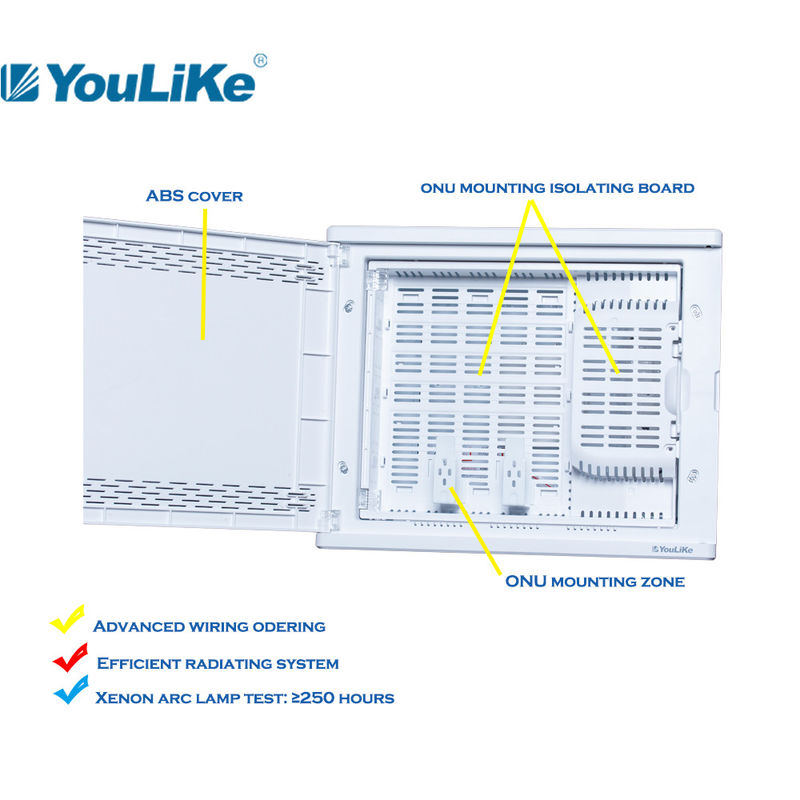

Product Details Demonstration
DMT-N series is used for indoor TV, telephone and network distribution.
#1. ONU mounting bracket is powder coated steel.
#2. Optical cable tray is used for optical cable wiring isolation from other components.
#3. PDU is as per CCC standard and optionla for clients in case it is unworkable.
#4. Reinforced structure design to allow higher tensile strength of plastic cover.
#5. Module mounting stand is plastic and modules to be fix by screws.
#6. ABS clapboard to seperate modem and router for better signal transmission and radiating efficience.
Application
Mainly used for indoor TV, telephone and internet distribution for house/apartment usage.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| DMT-NS | 420*175*365 | 0.0269 | 1 | 9.58 | |
| DMT-NM | 450*195*405 | 0.0356 | 1 | 14.66 | |
| DMT-NL | 510*195*405 | 0.0403 | 1 | 17.10 | |
| DMT-NXL | 585*170*490 | 0.0488 | 1 | ||
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
