Product Details:
|
| Product Name: | Indoor Distribution Box | Door Panel Shape: | Convex Type |
|---|---|---|---|
| Door Lock Material: | Zinc Alloy | Mounting Type: | Wall Mount |
| Earthing Bolt: | M6x14 | Hinges Material: | Zinc Alloy |
| Box Color: | RAL7035 | Product Certificate: | CCC |
| High Light: | Standardized 10 Way MCB Box,Single Phase 10 Way MCB Box,10 Way single phase db board |
||

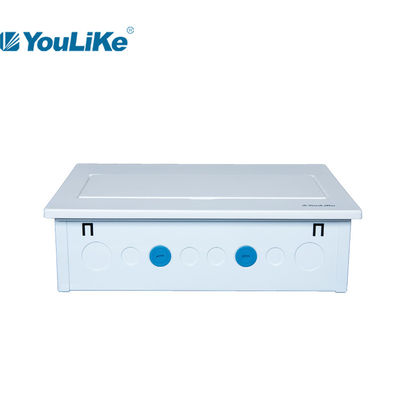

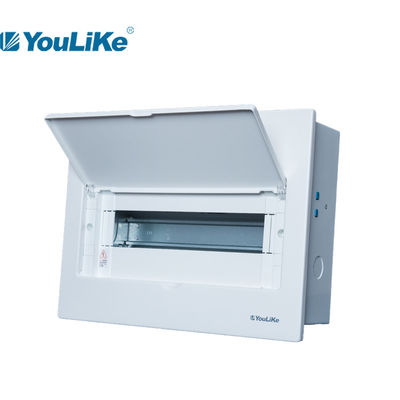

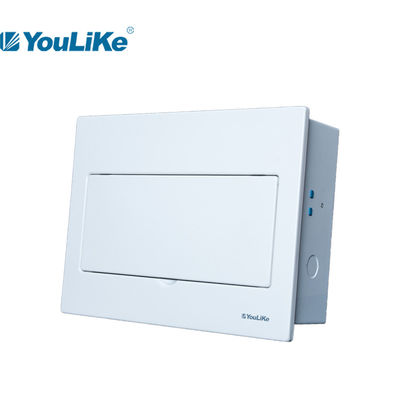

Distribution Box Single Phase db Box MCB Board Price For Home
Product Advantage
1. Select the copper bar with 60% content, which can not crack and slide the wire continuously, and the conductivity is smooth
2. Add line cards to better standardize wiring
3. The grounding screw is made of stainless steel, which is safe and reliable
4. All panels are made of brand-new materials, durable and beautiful
5. The new hinge structure makes users safer
6. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices
Product Development Orientation
1. Standardized bottom bow installation
2. Standardized equipment factory connection
3. Standardized construction connection
4. Standardized telecom installation
Version comparation
| Parts | Involved components | RX-MX-10 | RX-MX-11 |
| Door | Foamed tape | No equiped | Equiped |
| Wiring style | We ld stand | weld rib | |
| Other technical datas of those two versions remain the same. | |||
RX-MX-10 RX-MX-11
Box body configuration
Folding style: folding outwards.
Removable plate: located at bottom&top of box body, material to be galvanized sheet without powder coating.
Wiring bracket: at left side of box.
Mounting plate: 1pcs per each box, for electical components installation.
Door configuration
Folding style: dual folding.
Lock: MS401 disc lock, color black, zinc alloy material.
Cushion: for RX-MX-10 ONLY.
Foamed tape: For RX-MX-11 ONLY.
Hinge: HL003, color black, zinc alloy material, surface mounted, operation capacity 180°.
Full set configuration remarks
Wiring stand: normally it comes with cover punching. If no hole punching on cover, no wiring stand equiped.
standard design (100% as per our design, no customization) is equiped with wiring stand (1pcs for box less than 500mm height, 2pcs for box more than 500mm height).
Cable duct cover: 2pcs per each set.
Specification of RX-MX series wall mount distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Mounting plate size(mm) | lock | |||
| Width | Height | Depth | Box/Door/mounting plate | Width | Height | pcs | ||
| #1 | RX-MX304016 | 300 | 400 | 160 | 1.2/1.2/1.5 | 210 | 310 | 1 |
| #2 | RX-MX405016 | 400 | 500 | 310 | 410 | |||
| #3 | RX-MX506016 | 500 | 600 | 410 | 510 | |||
| #4 | RX-MX507016 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #5 | RX-MX607016 | 600 | 700 | 510 | 610 | |||
| #6 | RX-MX608016 | 600 | 800 | 510 | 710 | |||
| #7 | RX-MX709016 | 700 | 900 | 610 | 810 | 2 | ||
| #8 | RX-MX405020 | 400 | 500 | 200 | 1.2/1.2/1.5 | 310 | 410 | 1 |
| #9 | RX-MX506020 | 500 | 600 | 410 | 510 | |||
| #10 | RX-MX507020 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #11 | RX-MX607020 | 600 | 700 | 510 | 610 | |||
| #12 | RX-MX608020 | 600 | 800 | 510 | 710 | |||
| #13 | RX-MX709020 | 700 | 900 | 610 | 810 | 2 | ||
| #14 | RX-MX701020 | 700 | 1000 | 610 | 910 | |||
| #15 | RX-MX405024 | 400 | 500 | 240 | 1.2/1.2/1.5 | 310 | 410 | 1 |
| #16 | RX-MX506024 | 500 | 600 | 410 | 510 | |||
| #17 | RX-MX507024 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #18 | RX-MX607024 | 600 | 700 | 510 | 610 | |||
| #19 | RX-MX608024 | 600 | 800 | 510 | 710 | |||
| #20 | RX-MX709024 | 700 | 900 | 610 | 810 | 2 | ||
| #21 | RX-MX701024 | 700 | 1000 | 610 | 910 | |||
