Product Details:
|
| Product Name: | Tv Telephone Network Distribution Multimedia Box MCB Box | Box Material: | 1.0/0.8mm Powder Coated Steel |
|---|---|---|---|
| Cover Frame Material: | ABS/HIPS | Door Material: | ABS/HIPS |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Protection Level: | IP30 | Type: | Flush Type |
| High Light: | IP30 Multimedia Distribution Box,MCB Multimedia Distribution Box,MCB network distribution box |
||

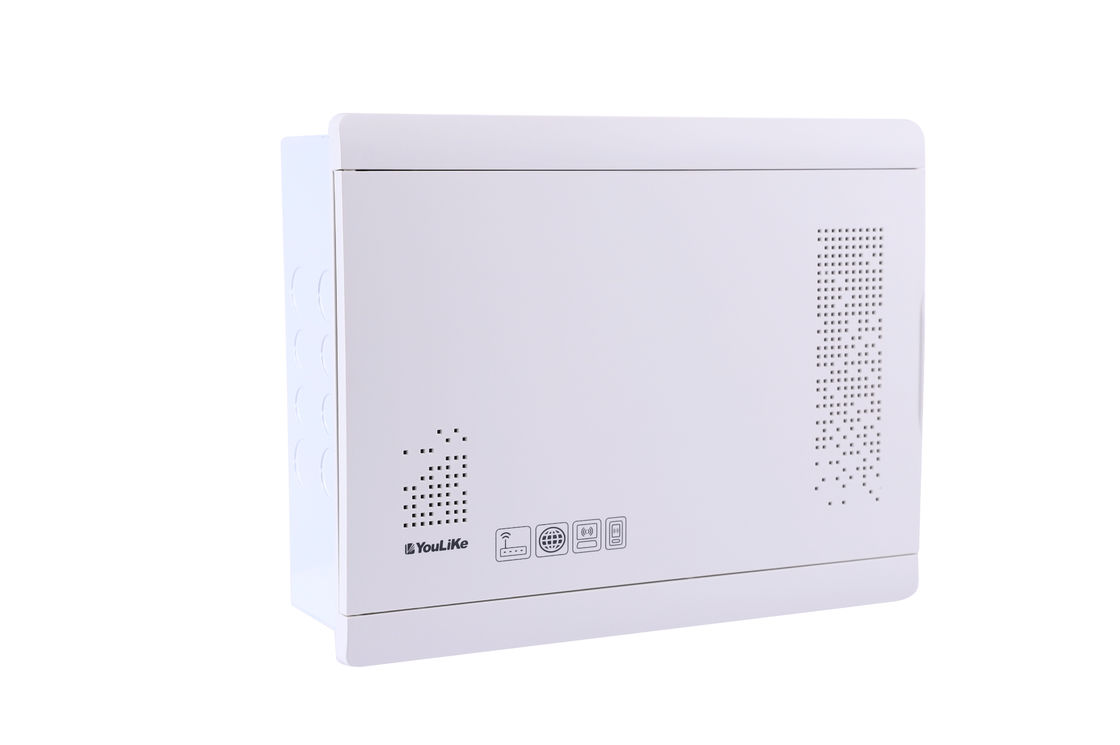

Tv Telephone Network Distribution Multimedia Box MCB Box
Product Characteristics
1. Box to be available for powder coated steel, 0.8mm for DMT-T, 1.0mm for DMT-G.
2. Cover to be available for ABS (DMT-G) and HIPS material (DMT-T).

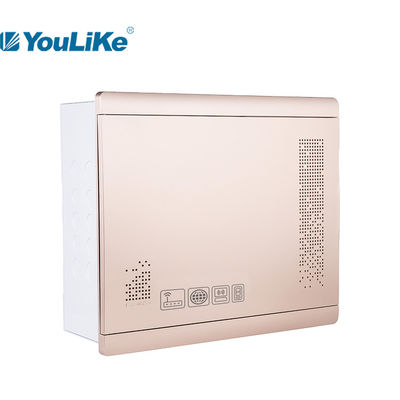

3. In case golden color needed, only HIPS available.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. It is equipped with air inlet window and heat dissipation window
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specifications of DMT-T/G series, Flush
| Model | Cover material | Cover size | Box size |
Max. Module install capacity |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | one side qty | |||||
| DMT-TS | HIPS | 345*270*16(31) | 325*250*100*0.8 | 3U | 16 | ||
| DMT-GS | ABS | 325*250*120*1.0 | 4U | 18 | |||
| DMT-TM | HIPS | 375*320*16(31) | 350*300*100*0.8 | 4U | 17 | ||
| DMT-GM | ABS | 350*300*120*1.0 | 4U | 20 | |||
| DMT-TL | HIPS | 425*320*16(31) | 400*300*100*0.8 | 4U | 19 | ||
| DMT-GL | ABS | 400*300*120*1.0 | 4U | 22 | |||

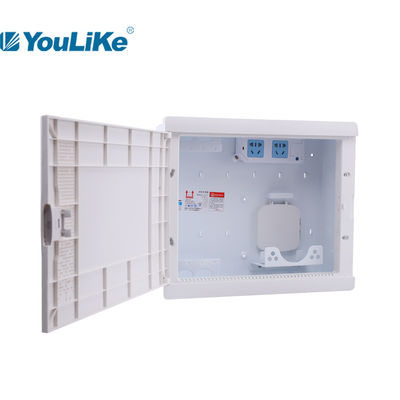

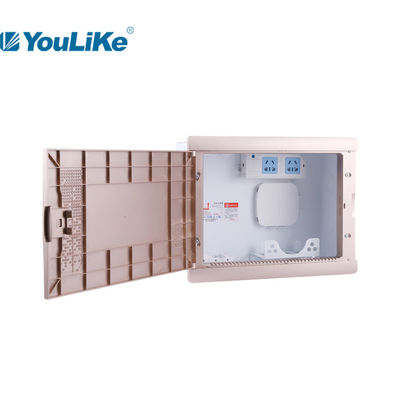

Product Details Demonstration
DMT-T/G series is used for indoor TV, telephone and network distribution.
#1. ONU mounting bracket is powder coated steel.
#2. Optical cable tray is used for optical cable wiring isolation from other components.
#3. PDU is as per CCC standard and optionla for clients in case it is unworkable.
#4. Reinforced structure design to allow higher tensile strength of plastic cover.
#5. Module mounting stand is plastic and modules to be fix by screws.
#6. The movable door has a spring-loaded latch
Application
Mainly used for indoor TV, telephone and internet distribution for house/apartment usage.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| DMT-TS | 405*150*340 | 0.0207 | 1 | 9.58 | |
| DMT-TM | 440*150*390 | 0.0258 | 1 | 14.66 | |
| DMT-TL | 485*150*390 | 0.0284 | 1 | 17.10 | |
| DMT-GS | 405*170*340 | 0.0234 | 1 | 9.25 | |
| DMT-GM | 440*170*390 | 0.0292 | 1 | 10.20 | |
| DMT-GL | 485*170*390 | 0.0322 | 1 | 11.65 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
