Product Details:
|
| Product Name: | Flush Mount MCB Distribution Box | Feature: | Flush Mount |
|---|---|---|---|
| Color: | Golden And White | Box Material: | 1.0mm Powder Coated Steel |
| Cover Frame Material: | HIPS | Door Material: | HIPS |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Protection Level: | IP40 | Applicable Object: | Indoor |
| High Light: | Domestic MCB Electrical Distribution Boards,MCB domestic distribution board |
||

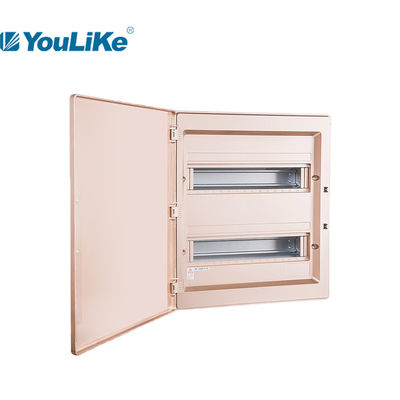

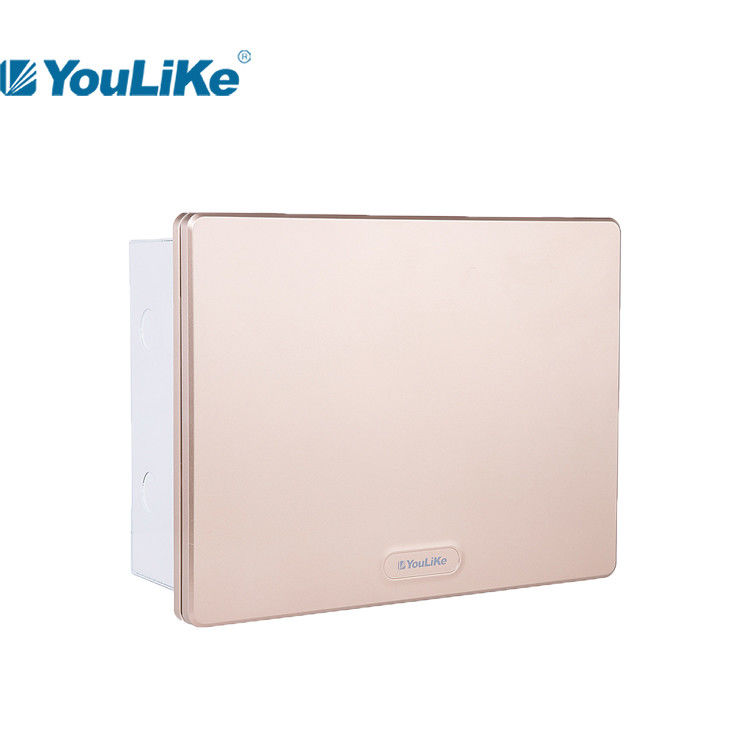

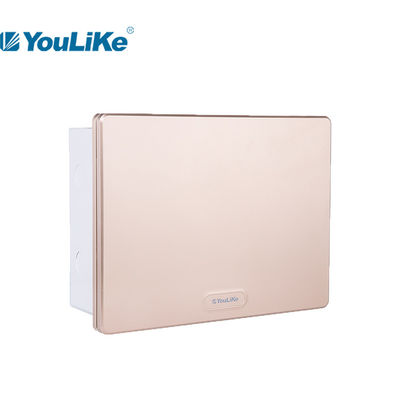

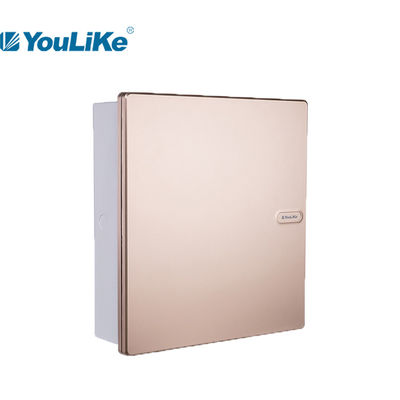

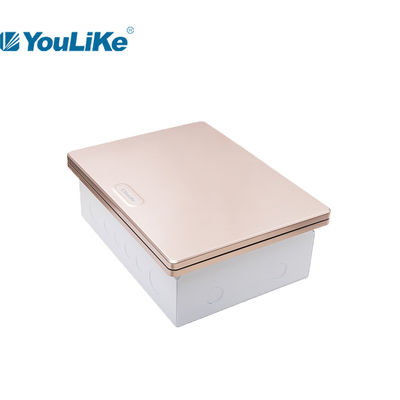

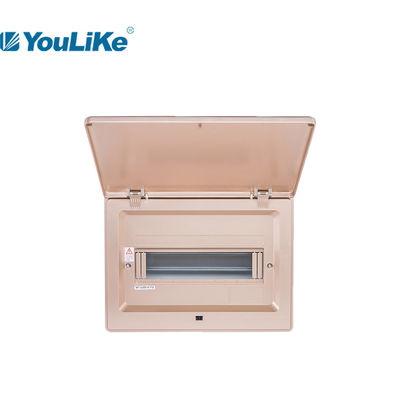

Flush Mount Domestic MCB Electrical Distribution Boards With Golden Cover
Product Characteristics
1. Box to be available for powder coated steel, with 1.0mm thickness.
2. Cover frame to be available for HIPS material.
3. Door to be available for HIPS, both white door and golden door.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. High purity zero line flow discharge
Product Advantage
1. Select the copper bar with 60% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
| Model | M7-A 112 |
| Mounting Type | flush mounting |
| Base Box Size | 292*210*90*1.0mm |
| Cover Size | 316*240*22.5mm |
| Accessories | bolt, din rail , terminal |
| Application | residential and commercial |
| Approval | CE,CCC |
| Circuit Breaker Rail | galvanised Steel |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | offered |
Specifications of M7 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M7-A 112 | 12way | 316*240*22.5 | 292*210*90*1.0 | 6*10 | 8 | 7 | 6 |
| M7-A 115 | 15way | 370*260*22.5 | 346*220*90*1.0 | 6*10 | 8 | 9 | 7 |
| M7-A 118 | 18way | 424*260*22.5 | 400*220*90*1.0 | 6*10 | 11 | 10 | 9 |
| M5-A 121 | 21way | 478*260*22.5 | 454*220*90*1.0 | 6*10 | 11 | 10 | 10 |
| M7-A 232 | 32way | 376*405*23.5 | 354*380*90*1.0 | 6.4*12 | 16 | 15 | 7 |
| M7-A 242 | 42way | 466*405*23.5 | 444*380*90*1.0 | 6.4*12 | 18 | 17 | 10 |
Product Details Demonstration
M7 series is used for indoor power distribution mainly for lighting control.
