Product Details:
|
| Name: | Full Metal Distribution Box | Box Material: | 1.2mm Powder Coated Sheet |
|---|---|---|---|
| Color: | RAL7035 | Protection Level: | IP40 |
| Mounting Type: | Wall Mounted | Earthing Bolt: | M6x14 |
| Hinges: | Can Be Opened At 180° | Lock: | MS401 Black Disc Lock, Zinc Alloy Material. |
| High Light: | IP40 10 Way MCB Box,Wall Mount 10 Way MCB Box,IP40 Metal Power Distribution Box |
||

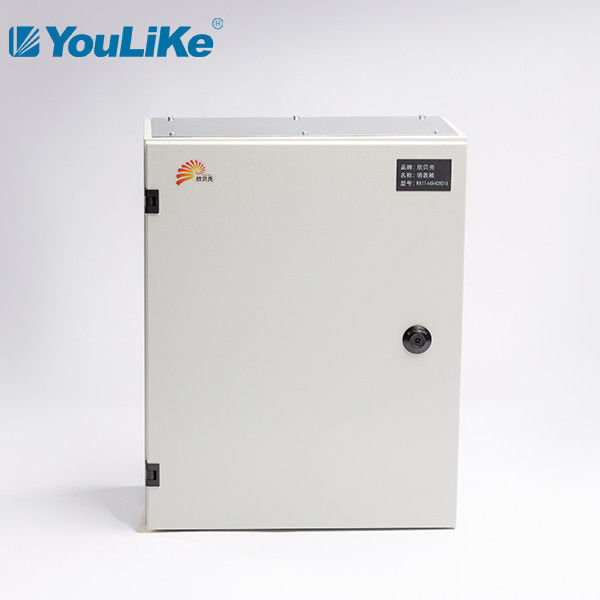

Surface Mount Electrical Single Phase Metal MCB Electrical Power Distribution Box
Box body configuration
Folding style: folding outwards.
Removable plate: located at bottom&top of box body, material to be galvanized sheet without powder coating.
Wiring bracket: at left side of box.
Mounting plate: 1pcs per each box, for electical components installation.
Door configuration
Folding style: dual folding.
Lock: MS401 disc lock, color black, zinc alloy material.
Cushion: for RX-MX-10 ONLY.
Foamed tape: For RX-MX-11 ONLY.
Hinge: HL003, color black, zinc alloy material, surface mounted, operation capacity 180°.
Full set configuration remarks
Wiring stand: normally it comes with cover punching. If no hole punching on cover, no wiring stand equiped.
standard design (100% as per our design, no customization) is equiped with wiring stand (1pcs for box less than 500mm height, 2pcs for box more than 500mm height).
Cable duct cover: 2pcs per each set.
Version comparation
| Parts | Involved components | RX-MX-10 | RX-MX-11 |
| Door | Foamed tape | No equiped | Equiped |
| Wiring style | We ld stand |
weld rib | |
| Other technical datas of those two versions remain the same. | |||
RX-MX-10 RX-MX-11
Specification of RX-MX series wall mount distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Mounting plate size(mm) | lock | |||
| Width | Height | Depth | Box/Door/mounting plate | Width | Height | pcs | ||
| #1 | RX-MX304016 | 300 | 400 | 160 | 1.2/1.2/1.5 | 210 | 310 | 1 |
| #2 | RX-MX405016 | 400 | 500 | 310 | 410 | |||
| #3 | RX-MX506016 | 500 | 600 | 410 | 510 | |||
| #4 | RX-MX507016 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #5 | RX-MX607016 | 600 | 700 | 510 | 610 | |||
| #6 | RX-MX608016 | 600 | 800 | 510 | 710 | |||
| #7 | RX-MX709016 | 700 | 900 | 610 | 810 | 2 | ||
| #8 | RX-MX405020 | 400 | 500 | 200 | 1.2/1.2/1.5 | 310 | 410 | 1 |
| #9 | RX-MX506020 | 500 | 600 | 410 | 510 | |||
| #10 | RX-MX507020 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #11 | RX-MX607020 | 600 | 700 | 510 | 610 | |||
| #12 | RX-MX608020 | 600 | 800 | 510 | 710 | |||
| #13 | RX-MX709020 | 700 | 900 | 610 | 810 | 2 | ||
| #14 | RX-MX701020 | 700 | 1000 | 610 | 910 | |||
| #15 | RX-MX405024 | 400 | 500 | 240 | 1.2/1.2/1.5 | 310 | 410 | 1 |
| #16 | RX-MX506024 | 500 | 600 | 410 | 510 | |||
| #17 | RX-MX507024 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #18 | RX-MX607024 | 600 | 700 | 510 | 610 | |||
| #19 | RX-MX608024 | 600 | 800 | 510 | 710 | |||
| #20 | RX-MX709024 | 700 | 900 | 610 | 810 | 2 | ||
| #21 | RX-MX701024 | 700 | 1000 | 610 | 910 | |||
About Us
YouLike is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, switch box, MCB consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, CCC test.
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
