Product Details:
|
| Product Name: | 7 Way Indoor Flush Mounted Distribution Box | Window Type: | Non Opaque |
|---|---|---|---|
| Material: | Powder Coated Steel For Body, PC For Cover | Surface Treat: | Powder Coating |
| Rated Currency: | 63A/80A | Application: | Indoor,residential, Commerical |
| Way Dimension: | 18mm | Protection Level: | IP40 |

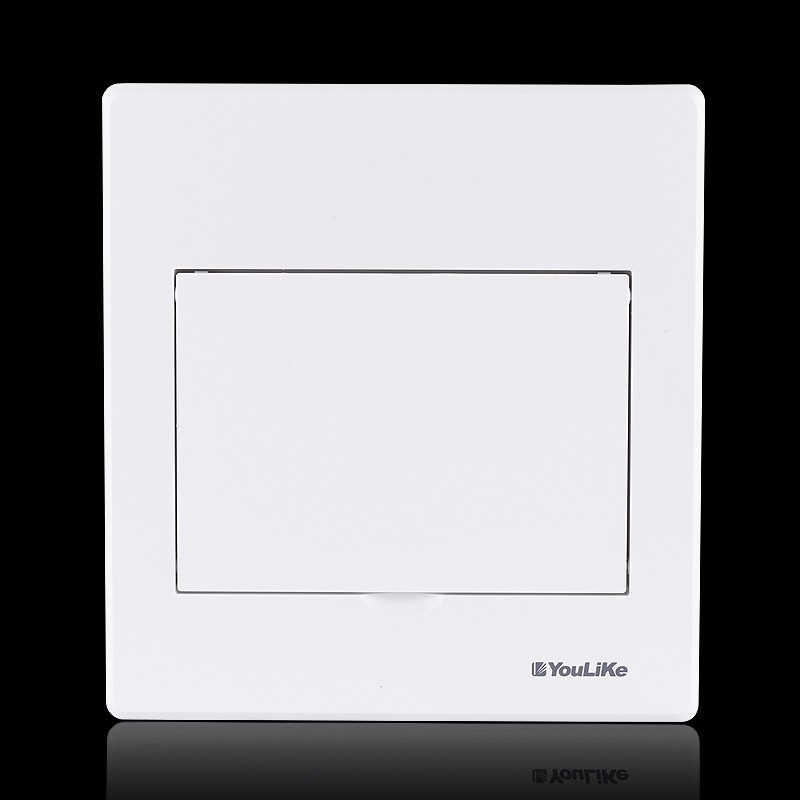

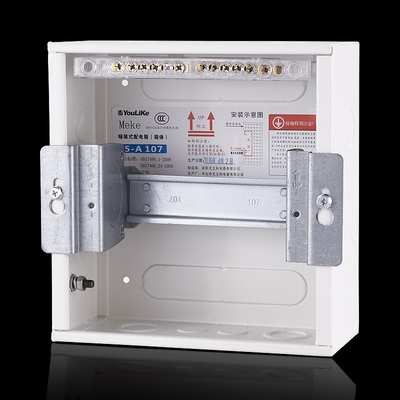

7 Way Plastic DB Box PC Cover Flush Mounted Electrical Distribution Panel Box
Main Feature
1. Base box: powder coated steel, cover and door to be PC plastic.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 60% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Plastic wire clamps is equiped below the din rail.
M5 series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
| Model | M5-A 107 |
| Module | 7way |
| Material of Body | powder coated steel |
| Base Box Size | 202*210*90*1.0mm |
| Cover Size | 224*240*15.5mm |
| Accessories | bolt, din rail , terminal |
| Color | white |
| Certification | CE,CCC |
| Circuit Breaker Rail | galvanised Steel |
| Function | Install Circuit Board |
| MOQ | small order can be accepted |
| Packing | 10pcs/ctn |
| Design Ability | can be engraved with customer's Logo and OEM&ODM service . |
Specifications of M5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M5-A 107 | 7way | 224*240*15.5(27.5) | 202*210*90*1.0 | 6.4*12 | 5 | 6 | 6 |
| M5-A 110 | 10way | 278*240*15.5(27.5) | 256*210*90*1.0 | 6.4*12 | 7 | 8 | 7 |
| M5-A 112 | 12way | 316*240*15.5(27.5) | 292*210*90*1.0 | 6.4*12 | 7 | 8 | 8 |
| M5-A 115 | 15way | 370*260*15.5(27.5) | 346*210*90*1.0 | 6.4*12 | 9 | 10 | 9 |
| M5-A 118 | 18way | 424*260*15.5(27.5) | 400*210*90*1.0 | 6.4*12 | 12 | 13 | 10 |
| M5-A 121 | 21way | 478*260*15.5(27.5) | 454*210*90*1.0 | 6.4*12 | 12 | 13 | 12 |
| M5-A 224 | 24way | 335*460*19(31) | 305*420*100*1.2 | 8*12 | 12 | 13 | 9 |
| M5-A 230 | 30way | 375*480*18(30) | 345*450*100*1.2 | 8*12 | 2*9 | 2*10 | 10 |
| M5-A 345 | 45way | 375*650*18(30) | 345*620*100*1.2 | 8*12 | 2*12 | 2*13 | 10 |
Product Detail Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M5-A 107 | 580*245*515 | 0.0732 | 10 | 9.58 | |
| M5-A 110 | 580*300*515 | 0.0896 | 10 | 14.66 | |
| M5-A 112 | 580*340*515 | 0.1016 | 10 | 17.10 | |
| M5-A 115 | 580*280*400 | 0.0650 | 5 | 9.25 | |
| M5-A 118 | 580*280*455 | 0.0739 | 5 | 10.20 | |
| M5-A 121 | 580*280*505 | 0.0821 | 5 | 11.65 | |
| M5-A 224 | 505*165*390 | 0.0325 | 1 | 6.70 | |
| M5-A 230 | 525*160*425 | 0.0357 | 1 | 3.60 | |
| M5-A 345 | 695*160*425 | 0.0473 | 1 | 4.05 | |
