Product Details:
|
| Product Name: | Flush Mounted Power Distribution Box | Door Sheet: | Embedded |
|---|---|---|---|
| Box Material: | Powder Coated Sheet | Protection Level: | IP40 |
| Mounting Type: | Flush Mounted | Earthing Bolt: | M6x14 |
| Folding Style: | Folding Outwards | Door Lock: | MS407circular Lock,zinc Alloy |
| High Light: | CCC Power Control Box,IP40 Power Control Box,CCC metal consumer unit enclosure |
||

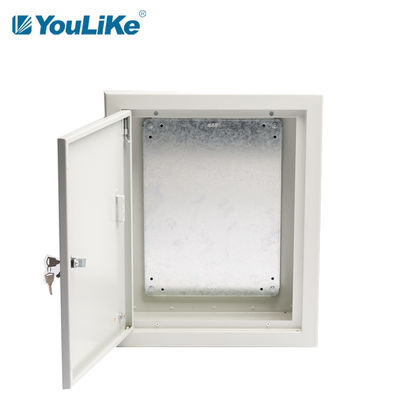

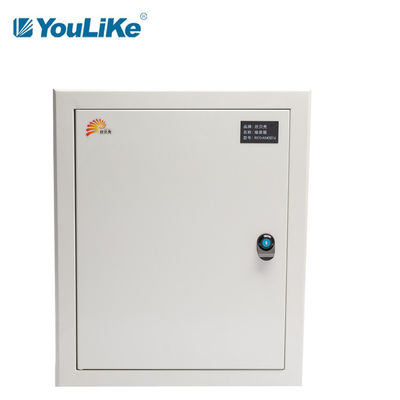

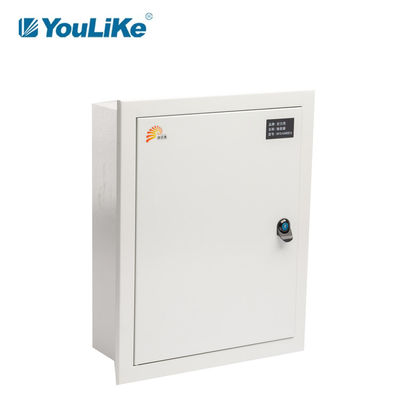

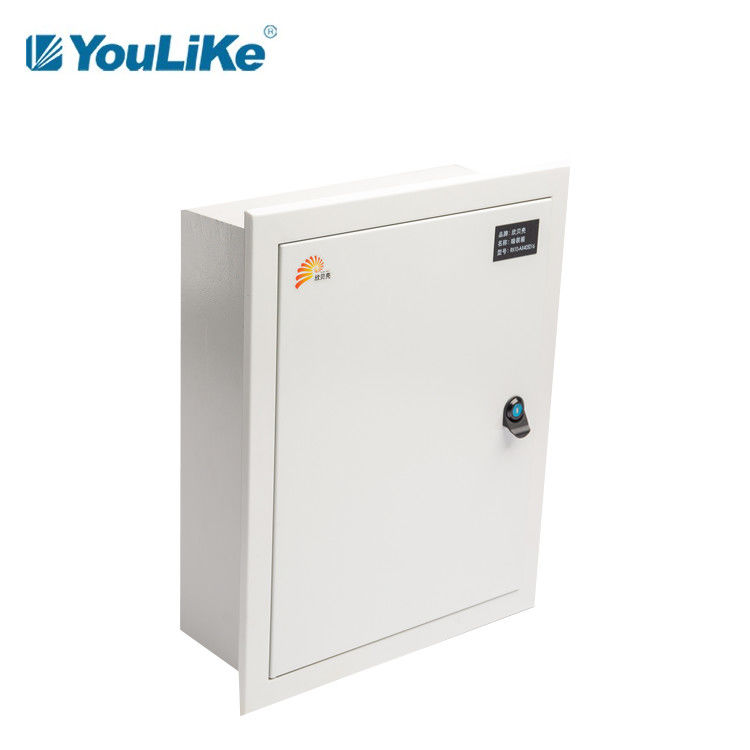

Power Control Box Powder Coating Treated Electrical Metal Enclosure Electrical Distribution Cabinet
Door configuration
1. Lock: MS407 circular lock, color black, zinc alloy material.
2. Wiring bracket: at left side of box.
3. Earthing bolt: M6×14.
4. Door sheet: embedded double bending.
4. Cushion: crashproof.
5. Hinge: CL225, flush mounted, operation capacity 180°.
Box body configuration
1. Folding style: folding outwards.
2. Removable plate: located at bottom&top of box body, material to be galvanized sheet without powder coating.
3. Wiring bracket: at left side of box.
4. Mounting plate: 1pcs per each box, for electical components installation.
Full set configuration remarks
Wiring stand: normally it comes with cover punching. If no hole punching on cover, no wiring stand equiped.
standard design (100% as per our design, no customization) is equiped with wiring stand (1pcs for box less than 500mm height, 2pcs for box more than 500mm height).
Cable duct cover: 2pcs per each set.
Product Feature
| Model | Mounting type | Ingress protection | Box body material |
| RX10-AX | flush | IP40 | powder coated steel |
Specification of RX10-AX series flush mount distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Mounting plate size(mm) | lock | |||
| Width | Height | Depth | Box/Door/mounting plate | Width | Height | pcs | ||
| #1 | RX-AX304016 | 300 | 400 | 160 | 1.2/1.2/1.5 | 210 | 310 | 1 |
| #2 | RX-AX405016 | 400 | 500 | 310 | 410 | |||
| #3 | RX-AX506016 | 500 | 600 | 410 | 510 | |||
| #4 | RX-AX507016 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #5 | RX-AX607016 | 600 | 700 | 510 | 610 | |||
| #6 | RX-AX608016 | 600 | 800 | 510 | 710 | |||
| #7 | RX-AX709016 | 700 | 900 | 610 | 810 | 2 | ||
Company Profile
1. YOULIKE founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
