Product Details:
|
| Product Name: | Indoor Flush Mounted Distribution Box | Place Of Origin: | Guangdong |
|---|---|---|---|
| Warranty: | 2years | Cover Frame Material: | ABS |
| Maximum Bearing Torque: | 18N.M | Box Material: | 1.0&1.2mm Powder Coated Steel |
| Door Material: | ABS | Rated Current: | 63A/80A |
| High Light: | ABS Main dB box,26 Way Main dB box,Flush Mounting db box 26 way |
||

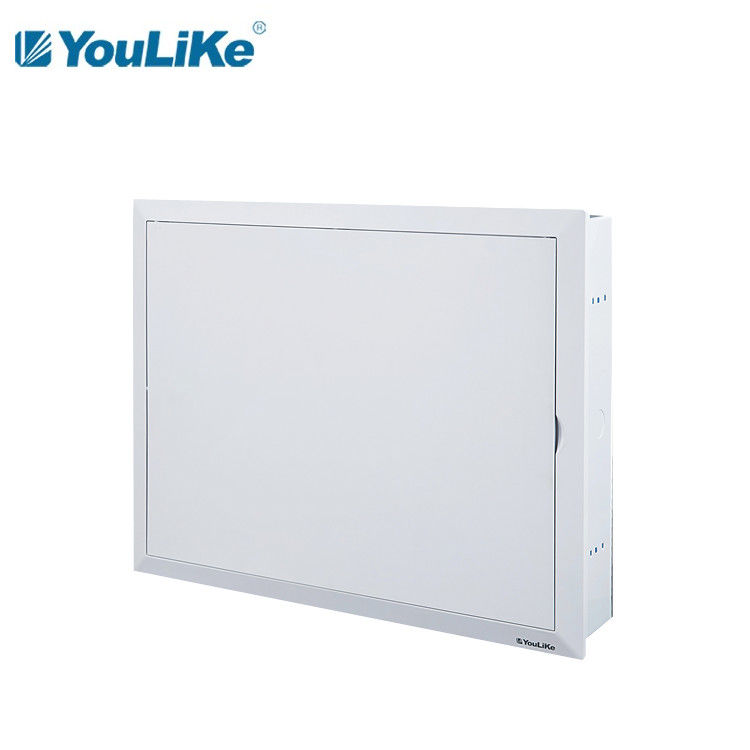

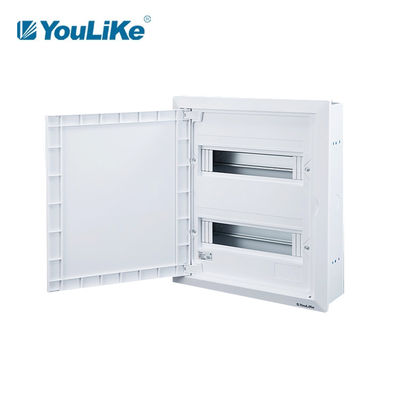

Indoor Electrical Flush Mounting Consumer Unit Power Main Distribution Box 26 Way MCB Box
Technology
1. The new hinge structure adopts metal shaft core, which is stable, reliable and durable.
2. The special stainless steel shrapnel fixes the movable door in the ideal position to ensure that the force of opening and closing the movable door is moderate, the rotation is smooth and there is no abnormal noise.

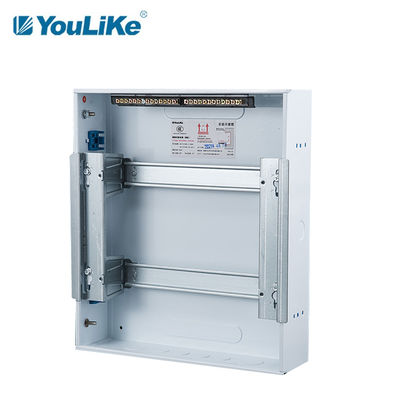

3. The internal guide rail bracket is composed of all metal parts, with lifting and rotation adjustment function and pre suspension function.
4. The grounding screw is made of stainless steel, the stud is uncoated and the grounding is more sufficient
Product Characteristics
1. Box to be available for powder coated steel, 1.0mm for 1&2row, 1.2mm for3rows.
2. Cover frame to be available for ABS material.
3. Door to be available for ABS, color white.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
Specifications of P5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
P5-A 112 |
12way | 312*230*15.5(31.3) | 292×210×90×1.0 | 6×10.4 | 8 | 7 | 6 |
|
P5-A 115 |
15way | 366×240×15.5(31.3) | 346×220×90×1.0 | 6×10.4 | 8 | 7 | 7 |
|
P5-A 118 |
18way | 420×240×15.5(31.3) | 00×220×90×1.0 | 6×10.4 | 11 | 10 | 9 |
|
P5-A 121 |
21way | 474×240×15.5(31.3) | 454×220×90×1.0 | 6×10.4 | 11 | 10 | 10 |
|
P5-A 124 |
24way | 528×250×15.5(31.3) | 508×230×90×1.0 | 6×10.4 | 13 | 12 | 10 |
|
P5-A 226 |
26way | 348×400×16.5(32.8) | 328×380×90×1.0 | 6×10.4 | 13 | 12 | 6 |
|
P5-A 232 |
32way | 402×400×16.5(32.8) | 382×380×90×1.0 | 6.4×12 | 16 | 15 | 7 |
|
P5-A 242 |
42way | 492×400×16.5(32.8) | 472×380×90×1.0 | 6.4×12 | 18 | 17 | 10 |
|
P5-A 354 |
54way | 448×604×17(33.5) | 424×580×100×1.2 | 6.4×12 | 2*13 | 2*12 | 9 |
Workshop Demonstration
Application
P5 series mainly used for indoor lighting control for residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 6% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Plastic wire clamps is equiped below the din rail.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| P5-A 112 | 655×300×385 | 0.0756 | 5 | 17.10 | |
| P5-A 115 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| P5-A 118 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| P5-A 121 | 655×310×545 | 0.1106 | 5 | 11.65 | |
| P5-A 124 | 655×320×600 | 0.1257 | 5 | 12.40 | |
| P5-A 226 | 460×135×415 | 0.0257 | 1 | 5.40 | |
| P5-A 232 | 460×135×470 | 0.0291 | 1 | 6.70 | |
| P5-A 242 | 550×135×465 | 0.0345 | 1 | 3.60 | |
| P5-A 354 | 665×155×515 | 0.0530 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness)
2. Order arrangement
* ≤15 days stable delivery
* specific MOQ
* multiple payment terms
* order status update
3. Additional service
* 7X24 respondence service
* on site service
* quality discrepancy handle
* accessories coordination
