Product Details:
|
| Product Name: | 7 Way Indoor Flush Distribution Box | Window: | Transparent |
|---|---|---|---|
| Material: | Metal+plastic | Surface Treat: | Powder Coating |
| Rated Currency: | 63A/80A | Rated Voltage: | AC400v(+/-20%) |
| Way Dimension: | 18mm | Protection Level: | IP40 |

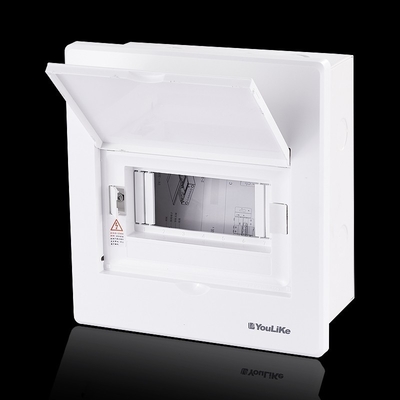

7 Way Single Phase Metal Enclosure Electrical Circuit Power Distribution Board For Indoor
Product Feature
1. Base box to be powder coated steel cover and door to be PC plastic.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.

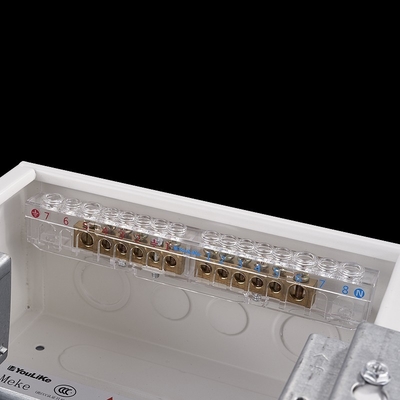

2. Copper terminals (1pcs earthing & 1pcs neutral) is with 60% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Plastic wire clamps is equiped below the din rail.
M5 series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
| Model | M5-A 107 |
| Module | 7way |
| Material of Body | powder coated steel |
| Base Box Size | 202*210*90*1.0mm |
| Cover Size | 224*240*15.5mm |
| Accessories | bolt, din rail , terminal |
| Application | residential and commercial |
| Certification | CE,CCC |
| Circuit Breaker Rail | galvanised Steel |
| Function | Install Circuit Board |
| MOQ | small order can be accepted |
| Package | in color box or neutral carton |
| Design Ability | can be engraved with customer's Logo and OEM&ODM service . |
Specifications of M5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M5-A 107 | 7way | 224*240*15.5(27.5) | 202*210*90*1.0 | 6.4*12 | 5 | 6 | 6 |
| M5-A 110 | 10way | 278*240*15.5(27.5) | 256*210*90*1.0 | 6.4*12 | 7 | 8 | 7 |
| M5-A 112 | 12way | 316*240*15.5(27.5) | 292*210*90*1.0 | 6.4*12 | 7 | 8 | 8 |
| M5-A 115 | 15way | 370*260*15.5(27.5) | 346*210*90*1.0 | 6.4*12 | 9 | 10 | 9 |
| M5-A 118 | 18way | 424*260*15.5(27.5) | 400*210*90*1.0 | 6.4*12 | 12 | 13 | 10 |
| M5-A 121 | 21way | 478*260*15.5(27.5) | 454*210*90*1.0 | 6.4*12 | 12 | 13 | 12 |
| M5-A 224 | 24way | 335*460*19(31) | 305*420*100*1.2 | 8*12 | 12 | 13 | 9 |
| M5-A 230 | 30way | 375*480*18(30) | 345*450*100*1.2 | 8*12 | 2*9 | 2*10 | 10 |
| M5-A 345 | 45way | 375*650*18(30) | 345*620*100*1.2 | 8*12 | 2*12 | 2*13 | 10 |
Product Detail Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M5-A 107 | 580*245*515 | 0.0732 | 10 | 9.58 | |
| M5-A 110 | 580*300*515 | 0.0896 | 10 | 14.66 | |
| M5-A 112 | 580*340*515 | 0.1016 | 10 | 17.10 | |
| M5-A 115 | 580*280*400 | 0.0650 | 5 | 9.25 | |
| M5-A 118 | 580*280*455 | 0.0739 | 5 | 10.20 | |
| M5-A 121 | 580*280*505 | 0.0821 | 5 | 11.65 | |
| M5-A 224 | 505*165*390 | 0.0325 | 1 | 6.70 | |
| M5-A 230 | 525*160*425 | 0.0357 | 1 | 3.60 | |
| M5-A 345 | 695*160*425 | 0.0473 | 1 | 4.05 | |
