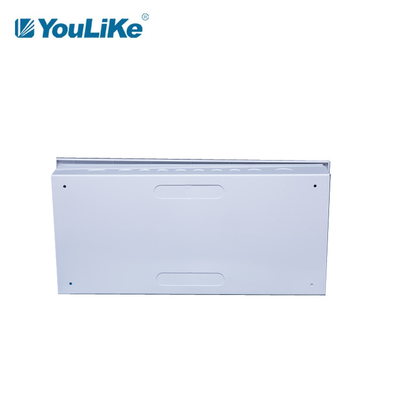

Product Details:
|
| Product Name: | 24 Power Distribution Box | Cover Frame Material: | ABS |
|---|---|---|---|
| Door Material: | ABS/PC | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Protection Level: | IP40 |
| Box Material: | 1.0mm Powder Coated Steel | Mounting Type: | Flush |
| High Light: | 24 Way Circuit Breaker Distribution Box,Flush Type Circuit Breaker Distribution Box,Waterproof Flush Mount Distribution Box |
||
Product Characteristics
1. Box to be available for powder coated steel, 0.8mm for single row, 1.0mm for 2rows, 1.2mm for 3rows.

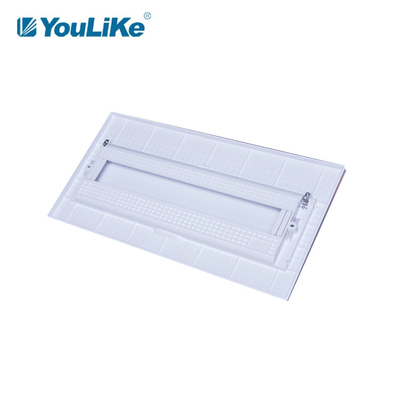

2. Cover frame to be available for ABS material.
3. Door to be available for both ABS (for white door) and PC material (for transparent door).
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Quality Assurance
1. national CCC certification standard.
2. The plate thickness meets the national standard without error.
3. All brand-new high-quality materials.
4. The protection level reaches IP40.
Company profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of BE series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-A 104 | 4way | 160*190*15.5(27.5) | 138*170*80*0.8 | 6*10 | 4 | 5 | 2 |
| BEP-A 110 | 10way | 268*210*15.5(27.5) | 246*192*80*0.8 | 6*10 | 8 | 7 | 5 |
| BEP-A 113 | 13way | 322*210*15.5(27.5) | 300*192*80*0.8 | 6*10 | 8 | 7 | 6 |
| BEP-A 116 | 16way | 376*210*15.5(27.5) | 354*192*80*0.8 | 6*10 | 8 | 9 | 7 |
| BEP-A 118 | 18way | 412*210*15.5(27.5) | 390*192*80*0.8 | 6*10 | 11 | 10 | 8 |
| BEP-A 121 | 21way | 466*210*15.5(27.5) | 444*192*80*0.8 | 6*10 | 11 | 10 | 10 |
| BEP-A 124 | 24way | 520*250*15.5(27.5) | 498*230*90*1.0 | 6*10 | 13 | 12 | 8 |
| BEP-A 226 | 26way | 322*405*17.5(27.8) | 300*380*90*1.0 | 6*10 | 13 | 12 | 6 |
| BEP-A 232 | 32way | 375*405*17.5(27.8) | 354*380*90*1.0 | 6.4*12 | 16 | 15 | 7 |
| BEP-A 242 | 42way | 466*405*17.5(27.8) | 444*380*90*1.0 | 6.4*12 | 18 | 17 | 10 |
| BEP-A 348 | 48way | 393*650*17.5(29) | 363*620*100*1.2 | 6.4*12 | 2*10 | 2*11 | 8 |
| BEP-A 363 | 63way | 483*650*17.5(29.5) | 453*620*100*1.2 | 8*12 | 2*12 | 2*13 | 12 |

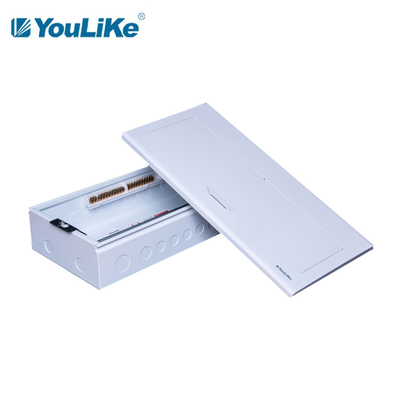

Product Details Demonstration
BE series is used for indoor power distribution mainly for lighting control.
#1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
#2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
#3. Stainless earthing bolts with warning label.
#4. Reinforced structure design to allow higher tensile strength of plastic cover.
#5. Metal metal spring plate to provide extra service life of plastic hinges.
Application
Mainly used for indoor lighting control for residential and commercial buildings.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| BEP-A 104 | 525*215*355 | 0.0401 | 10 | 9.58 | |
| BEP-A 110 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BEP-A 113 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BEP-A 116 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BEP-A 118 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BEP-A 121 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BEP-A 124 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BEP-A 226 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BEP-A 232 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BEP-A 242 | 510*160*460 | 0.0376 | 1 | 4.75 | |
| BEP-A 348 | 700*145*445 | 0.0452 | 1 | 7.61 | |
| BEP-A 363 | 700*145*535 | 0.0543 | 1 | 8.57 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness)
2. Order arrangement
≤15 days stable delivery
specific MOQ
multiple payment terms
order status update
3. Additional service
7X24 respondence service
on site service
quality discrepancy handle
accessories coordination
