Product Details:
|
| Product Name: | Waterproof 18ways Electrical Power Distribution Box | Specification: | 18ways |
|---|---|---|---|
| Application: | Outdoor/indoor | Product Size: | 380*230*110mm |
| Rated Current: | 220V | Mounting Type: | Surface Mounted |
| Material: | ABS+PC | Protection Level: | IP65 |
| High Light: | 220V Waterproof MCB Box,Indoor Waterproof MCB Box,220V waterproof junction box |
||

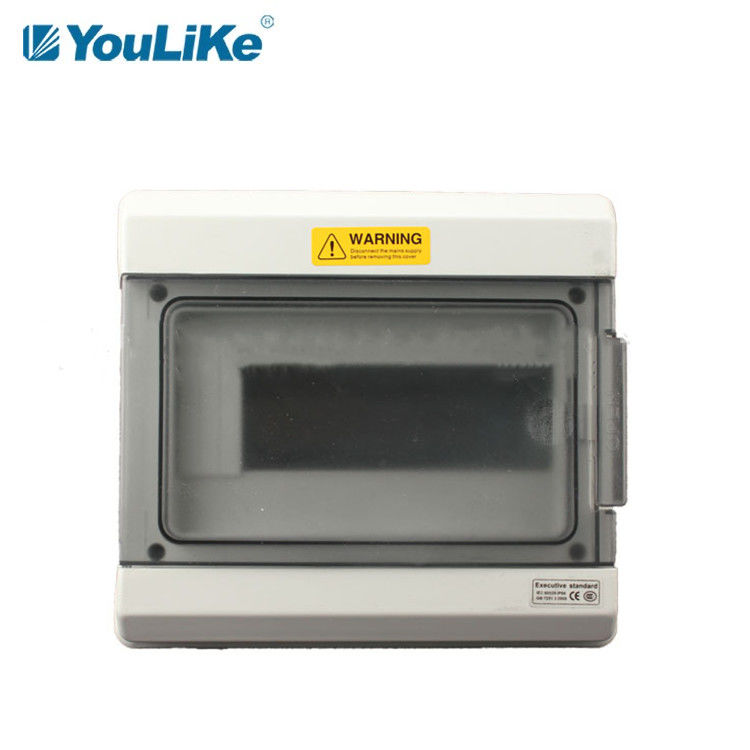

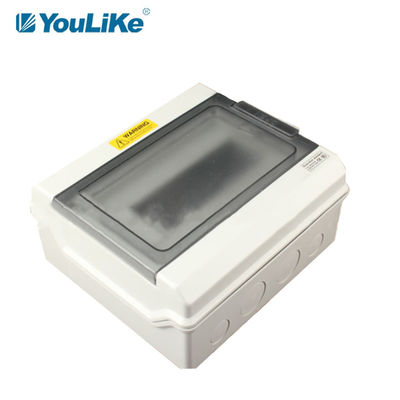

Home Use Indoor 18 Ways Newest Electrical Plastic Switch Box Waterproof Distribution Box
Product Features
1. Panel is the ABS material for engineering , high strength , never change color , the transparent materia is PC .
2. Cover push - type opening and closing
3. Face covering of the distribution box adopts the push - type opening and closing mode , the face mask can be opened by pressing lightly , the self - locking positioning hinge structure is provided when opening.
4. Wiring design of the power distribution box.
5. The guide rail support plate can be lifted to the higest movable point , it is no longer limited by the narrrow space when installing the wire . To install easily , the switch of the distribution box is set up with the wire grooves and wire pipe exitholes , whcih are easy to use for a variety of wire grooves and wire pipes.
Instruction
1. Internal installation: there is a boss inside the box for the installation of circuit board or track components.
2. External installation: it can be directly fixed on the wall through the installation hole at the bottom of the box.

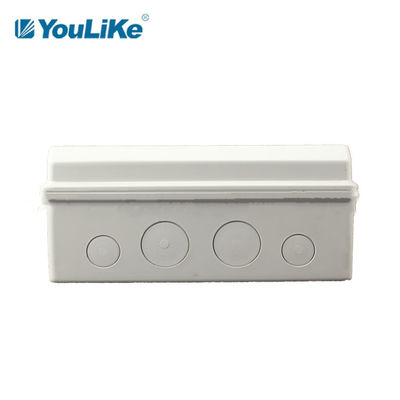

3. Inlet and outlet holes: the waterproof box is additionally perforated according to its own needs, and can be equipped with supporting waterproof cable joints to achieve waterproof effect.
Application
G series is mainly used in villa outdoor, construction site and residential indoor to protect all kinds of outdoor electrical equipment, waterproof, dustproof and moisture-proof.
Specifications of G series, Surface
| Number | Model | Way | Box size | Weight | Minimum package |
| L*H*T (mm) | kg | pcs | |||
|
#1 |
G-4 | 4way | 200*110*90 | 1.1 | 1 |
|
#2 |
G-6 | 6way | 200*165*100 | 1.1 | 1 |
|
#3 |
G-9 | 9way | 210*200*100 | 1.5 | 1 |
|
#4 |
G-12 | 12way | 270*230*110 | 1.5 | 1 |
| #5 | G-18 | 18way | 380*230*110 | 1.5 | 1 |
| #6 | G-24 | 24way | 380*230*110 | 1.5 | 1 |
| #7 | G-36 | 36way | 380*380*110 | 1.7 | 1 |
Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| G-4 | 205*115*95 | 0.0022 | 1 | 1.3 | |
| G-6 | 205*168*105 | 0.0036 | 1 | 1.3 | |
| G-9 | 215*205*105 | 0.0046 | 1 | 1.8 | |
| G-12 | 275*235*115 | 0.0074 | 1 | 1.8 | |
| G-18 | 385*235*115 | 0.0104 | 1 | 1.8 | |
| G-24 | 385*235*115 | 0.0104 | 1 | 1.8 | |
| G-36 | 385*385*115 | 0.0170 | 1 | 2.1 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Profile
1. YOULIKE founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
