Product Details:
|
| Product Name: | Waterproof Outdoor Electrical Power Distribution Box | Warranty: | 2years |
|---|---|---|---|
| Opening: | Horizontal Open | Mounting Type: | Surface Mounted |
| Size: | 270*195*103mm | Frequency: | 50/60Hz |
| Material: | ABS+PC | Weight: | 0.80kg |
| High Light: | CE electrical db box,18 Ways electrical db box |
||

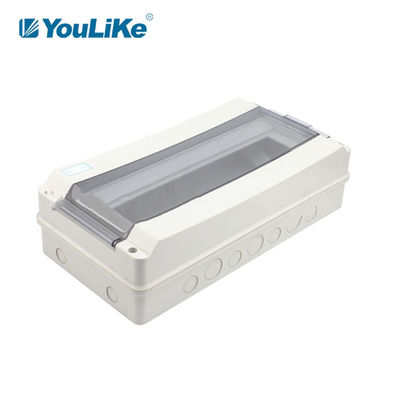

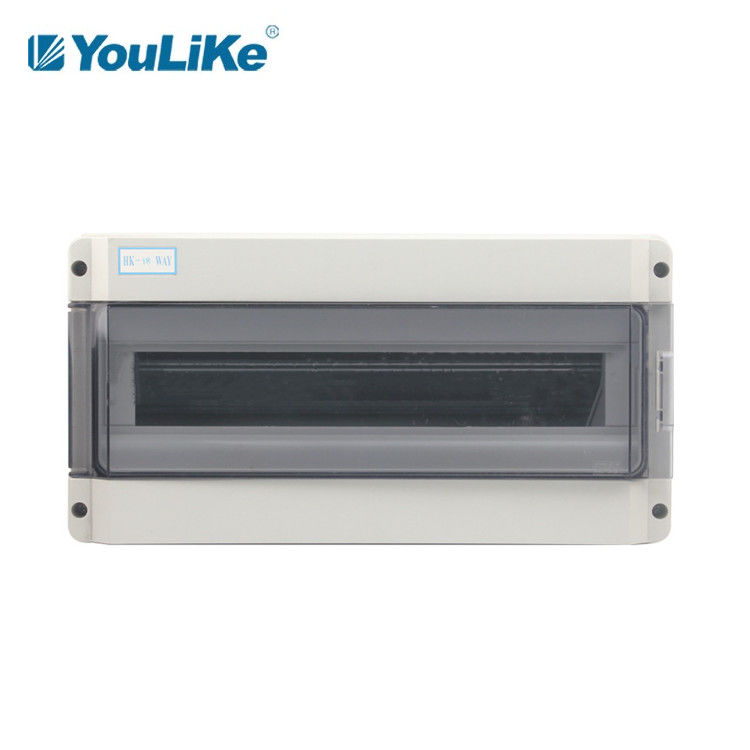

Plastic Waterproof 18 Ways Distribution Box For Circuit Breaker Housing Shell
Main Features
1.High impact resistance material:PC,ABS
2. Safe and full material copper terminals
3.Adjustable din-rail:move ascend and descend
4. Ultra-large space box for moving and easy wiring
5. Flush mounting and surface mounting available
6.Function of Distribution box:protect MCB and other devices.
Product Design
Overall design: unique corner design, with three-dimensional feeling of space.
Internal design: the guide rail for fixing the circuit breaker is installed, which is more convenient.

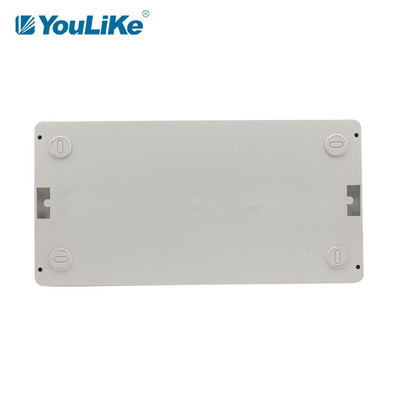

Back design: surface mounted shell, more convenient installation, smooth surface, no miscellaneous color spots.
Side design: knock off the side hole when in use and waterproof when not in use.
Application
HK series is mainly used in villa outdoor, construction site and residential indoor to protect all kinds of outdoor electrical equipment, waterproof, dustproof and moisture-proof.
Specifications of HK series, Surface
| Number | Model | Way | Box size | Weight | Knockouts |
| L*H*T (mm) | kg | one side qty | |||
|
#1 |
HT-5 | 5way | 140*140*100 | 0.40 | |
|
#2 |
HT-8 | 8way | 195*195*103 | 0.65 | |
|
#3 |
HT-12 | 12way | 270*195*103 | 0.80 | |
|
#4 |
HT-18 | 18way | 375*195*103 | 1.10 |
Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| HT-5 | 145*145*103 | 0.0021 | 1 | 0.40 | |
| HT-8 | 200*200*105 | 0.0042 | 1 | 0.65 | |
| HT-12 | 275*200*105 | 0.0082 | 1 | 0.80 | |
| HT-18 | 380*200*105 | 0.0079 | 1 | 1.10 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Profile
1. YOULIKE founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
