Product Details:
|
| Product Name: | Waterproof Outdoor Electrical Power Distribution Box | Feature: | Safety Durable Waterproof |
|---|---|---|---|
| Frequency: | 50/60Hz | Material: | ABS+PC |
| Din Rail Connection: | According To EN50022 | Mounting Type: | Surface Mounted |
| Certification: | CCC | Protection Level: | IP65 |
| High Light: | 8 Way MCB outdoor junction box,IP65 outdoor junction box |
||

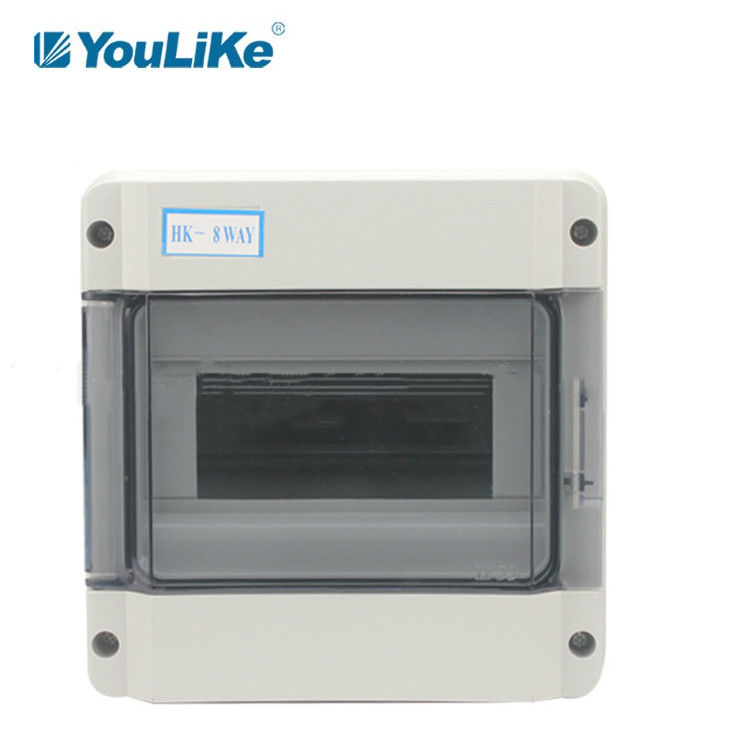

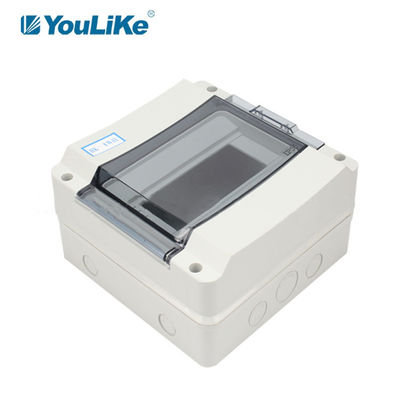

8 Way MCB Power Distribution Box Waterproof IP65 Outdoor Indoor Circuit Breaker Box
Product Design
Overall design: unique corner design, with three-dimensional feeling of space.
Internal design: the guide rail for fixing the circuit breaker is installed, which is more convenient.
Back design: surface mounted shell, more convenient installation, smooth surface, no miscellaneous color spots.

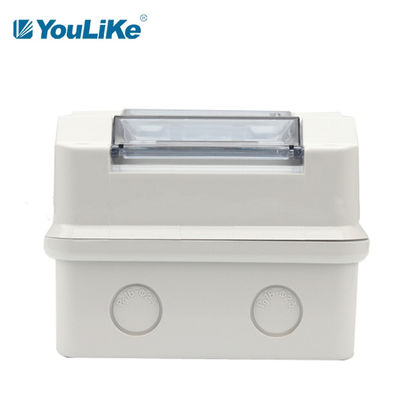

Side design: knock off the side hole when in use and waterproof when not in use.
Application
HK series is mainly used in villa outdoor, construction site and residential indoor to protect all kinds of outdoor electrical equipment, waterproof, dustproof and moisture-proof.
Instruction
1. Internal installation: there is a boss inside the box for the installation of circuit board or track components.
2. External installation: it can be directly fixed on the wall through the installation hole at the bottom of the box.
3. Inlet and outlet holes: the waterproof box is additionally perforated according to its own needs, and can be equipped with supporting waterproof cable joints to achieve waterproof effect.
Specifications of HK series, Surface
| Number | Model | Way | Box size | Weight | Knockouts |
| L*H*T (mm) | kg | one side qty | |||
|
#1 |
HT-5 | 5way | 140*140*100 | 0.40 | |
|
#2 |
HT-8 | 8way | 195*195*103 | 0.65 | |
|
#3 |
HT-12 | 12way | 270*195*103 | 0.80 | |
|
#4 |
HT-18 | 18way | 375*195*103 | 1.10 |
Company Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| HT-5 | 145*145*103 | 0.0021 | 1 | 0.40 | |
| HT-8 | 200*200*105 | 0.0042 | 1 | 0.65 | |
| HT-12 | 275*200*105 | 0.0082 | 1 | 0.80 | |
| HT-18 | 380*200*105 | 0.0079 | 1 | 1.10 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
