Product Details:
|
| Product Name: | Waterproof Outdoor Electrical Power Distribution Box | Mounting Type: | Surface Mounted |
|---|---|---|---|
| Cover Material: | PC | Box Material: | ABS |
| Din Rail Connection: | According To EN50022 | OEM: | Approved |
| Certification: | CCC | Protection Level: | IP65 |
| High Light: | IP65 outdoor power distribution panel,15way outdoor power distribution panel |
||

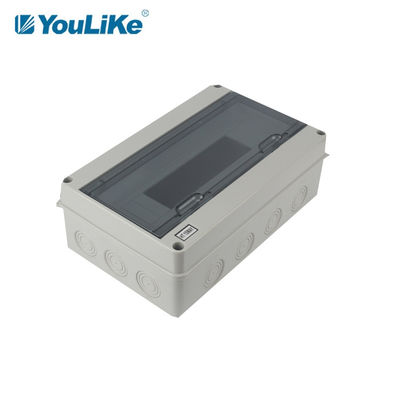

Surface Type IP65 15way Waterproof Plastic Distribution Box For Mcb Mini Circuit Breaker
Application
HT series 2way 5way 8way 12way 15way 18way 24way Waterproof Distribution Box is mainly used in outdoor areas, such as EV chargers, Solar PV fields or other outdoor projects.
Product Features
1. Panel is the ABS material for engineering , high strength , never change color , the transparent materia is PC .
2. Cover push - type opening and closing
3. Face covering of the distribution box adopts the push - type opening and closing mode , the face mask can be opened by pressing lightly , the self - locking positioning hinge structure is provided when opening.
4. Wiring design of the power distribution box.

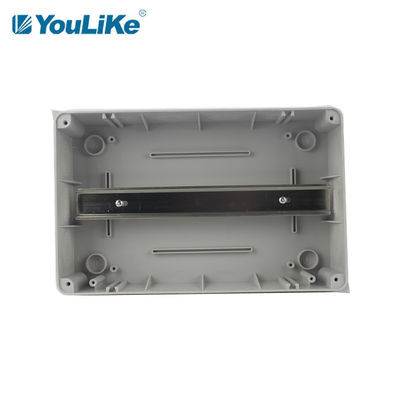

5. The guide rail support plate can be lifted to the higest movable point , it is no longer limited by the narrrow space when installing the wire . To install easily , the switch of the distribution box is set up with the wire grooves and wire pipe exitholes , whcih are easy to use for a variety of wire grooves and wire pipes.
Specifications of HT series, Surface

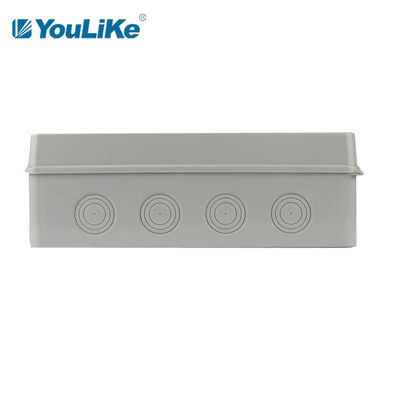

| Number | Model | Way | Box size | Weight | Knockouts |
| L*H*T (mm) | kg | one side qty | |||
|
#1 |
HT-5 | 5way | 120*160*95 | 0.34 | |
|
#2 |
HT-8 | 8way | 200*155*95 | 0.53 | |
|
#3 |
HT-12 | 12way | 250*195*110 | 0.84 | |
|
#4 |
HT-15 | 15way | 310*195*110 | 0.9 | |
| #5 | HT-18 | 18way | 365*195*110 | 1.07 | |
| #6 | HT-24 | 24way | 360*280*110 | 1.05 |
Warehouse Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| HT-5 | 125*165*100 | 0.0020 | 1 | 0.34 | |
| HT-8 | 205*160*100 | 0.0032 | 1 | 0.53 | |
| HT-12 | 255*200*115 | 0.0058 | 1 | 0.84 | |
| HT-15 | 320*200*115 | 0.0073 | 1 | 0.9 | |
| HT-18 | 370*200*115 | 0.0085 | 1 | 1.07 | |
| HT-24 | 365*285*115 | 0.0119 | 1 | 1.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
