Product Details:
|
| Product Name: | Waterproof Outdoor Electrical Power Distribution Box | Fittings: | Din Rail ,cable Gland |
|---|---|---|---|
| Application: | Outdoor Electronic Equipment | Model Number: | 8way |
| Product Dimension: | 200*155*95mm | Cover Material: | PC |
| Box Material: | ABS | Protection Level: | IP65 |
| High Light: | 8 Way Waterproof MCB Box,Plastic Waterproof MCB Box,din rail MCB Box 8 Way |
||

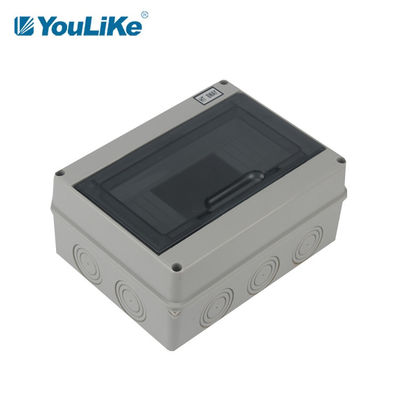

Water Proof IP65 HT Series 8 Ways Plastic Enclosure Distribution Box Electric Junction Box
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
Application
HT series 2way 5way 8way 12way 15way 18way 24way Waterproof Distribution Box is mainly used in outdoor areas, such as EV chargers, Solar PV fields or other outdoor projects.
Instruction

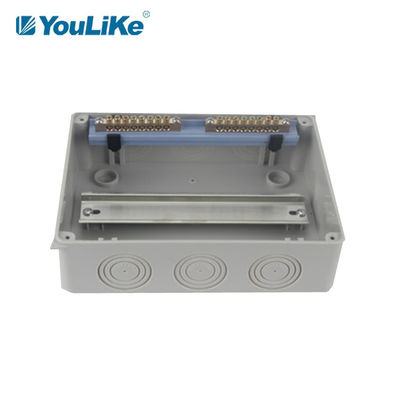

1. Internal installation: there is a boss inside the box for the installation of circuit board or track components.

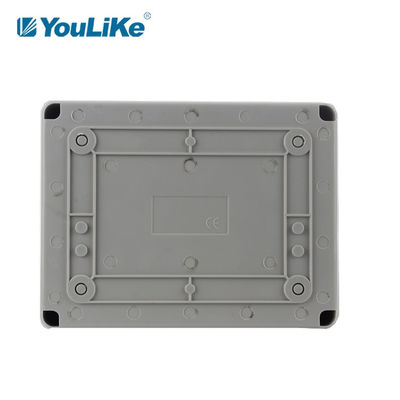

2. External installation: it can be directly fixed on the wall through the installation hole at the bottom of the box.

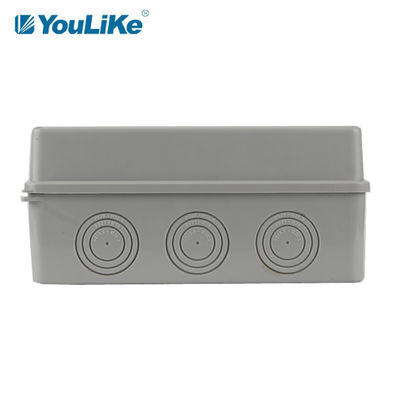

3. Inlet and outlet holes: the waterproof box is additionally perforated according to its own needs, and can be equipped with supporting waterproof cable joints to achieve waterproof effect.
Specifications of HT series, Surface
| Number | Model | Way | Box size | Weight | Knockouts |
| L*H*T (mm) | kg | one side qty | |||
|
#1 |
HT-5 | 5way | 120*160*95 | 0.34 | |
|
#2 |
HT-8 | 8way | 200*155*95 | 0.53 | |
|
#3 |
HT-12 | 12way | 250*195*110 | 0.84 | |
|
#4 |
HT-15 | 15way | 310*195*110 | 0.9 | |
| #5 | HT-18 | 18way | 365*195*110 | 1.07 | |
| #6 | HT-24 | 24way | 360*280*110 | 1.05 |
Office Area Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| HT-5 | 125*165*100 | 0.0020 | 1 | 0.34 | |
| HT-8 | 205*160*100 | 0.0032 | 1 | 0.53 | |
| HT-12 | 255*200*115 | 0.0058 | 1 | 0.84 | |
| HT-15 | 320*200*115 | 0.0073 | 1 | 0.9 | |
| HT-18 | 370*200*115 | 0.0085 | 1 | 1.07 | |
| HT-24 | 365*285*115 | 0.0119 | 1 | 1.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness)
2. Order arrangement
* ≤15 days stable delivery.
* specific MOQ.
* multiple payment terms.
* order status update.
3. Additional service
* 7X24 respondence service.
* on site service.
* quality discrepancy handle.
* accessories coordination.
