Product Details:
|
| Product Name: | Waterproof Outdoor Electrical Power Distribution Box | Weight: | 0.34kg |
|---|---|---|---|
| Application: | Outdoor Electronic Equipment | Cover Material: | PC |
| Box Material: | ABS | Protection Level: | IP65 |
| Color: | Gray | Function: | Waterproof, Dustproof |
| Series Specification: | 5way | ||
| High Light: | CCC outdoor consumer unit box,CCC 5 way junction box,5way outdoor consumer unit box |
||

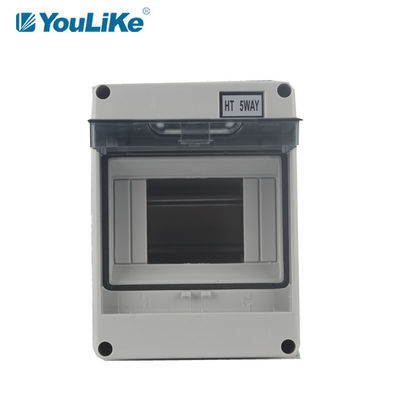

Outdoor Consumer Unit 5 Way EV Charger Solar PV Waterproof Plastic Electrical Distribution Box
Product Characteristics
1. Box body to be available for ABS material.
2. Transparent cover to be available for PC material.
3. Tested and approved to EN60947-1.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Instruction

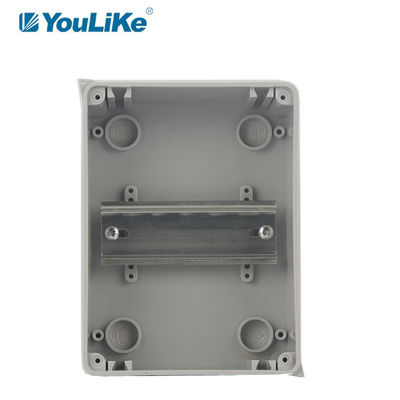

1. Internal installation: there is a boss inside the box for the installation of circuit board or track components.
2. External installation: it can be directly fixed on the wall through the installation hole at the bottom of the box.
3. Inlet and outlet holes: the waterproof box is additionally perforated according to its own needs, and can be equipped with supporting waterproof cable joints to achieve waterproof effect.
Application
HT series 2way 5way 8way 12way 15way 18way 24way Waterproof Distribution Box is mainly used in outdoor areas, such as EV chargers, Solar PV fields or other outdoor projects.
Specifications of HT series, Surface
| Number | Model | Way | Box size | Weight | Knockouts |
| L*H*T (mm) | kg | one side qty | |||
|
#1 |
HT-5 | 5way | 120*160*95 | 0.34 | |
|
#2 |
HT-8 | 8way | 200*155*95 | 0.53 | |
|
#3 |
HT-12 | 12way | 250*195*110 | 0.84 | |
|
#4 |
HT-15 | 15way | 310*195*110 | 0.9 | |
| #5 | HT-18 | 18way | 365*195*110 | 1.07 | |
| #6 | HT-24 | 24way | 360*280*110 | 1.05 |

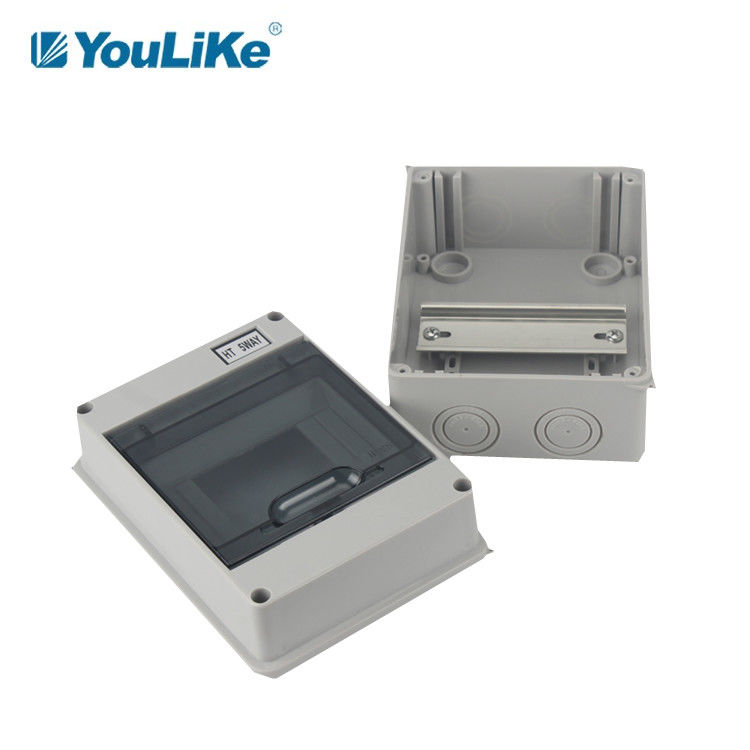

Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| HT-5 | 125*165*100 | 0.0020 | 1 | 0.34 | |
| HT-8 | 205*160*100 | 0.0032 | 1 | 0.53 | |
| HT-12 | 255*200*115 | 0.0058 | 1 | 0.84 | |
| HT-15 | 320*200*115 | 0.0073 | 1 | 0.9 | |
| HT-18 | 370*200*115 | 0.0085 | 1 | 1.07 | |
| HT-24 | 365*285*115 | 0.0119 | 1 | 1.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Information
Production Capacity
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service
1. yesr service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
