Product Details:
|
| Product Name: | Waterproof Outdoor Electrical Power Distribution Box | Protection Level: | IP65 |
|---|---|---|---|
| Mounting Type: | Surface Mounted | Cover Material: | PC |
| Color: | RAL7035 | Specification Dimension: | 410*285*140mm |
| Box Material: | ABS | Certification: | CCC |
| Window Type: | Transparent | ||
| High Light: | 18ways electrical junction box,18ways surface mounted electric box |
||

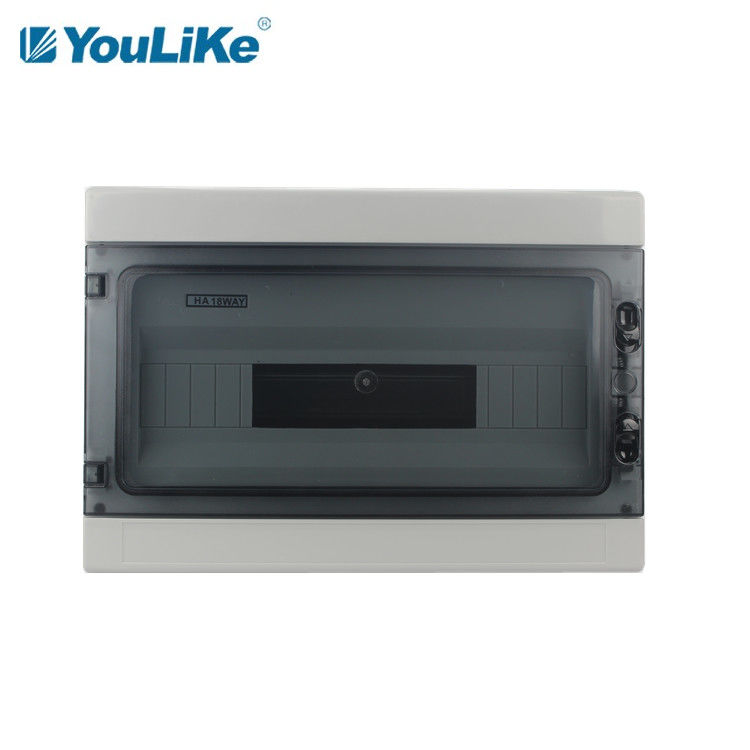

Outdoor Waterproof 18ways Distribution Box For Air Switch Surface Mounted Electric Box
Product Characteristics
1. Box body to be available for ABS material.
2. Transparent cover to be available for PC material.
3. Tested and approved to EN60947-1.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Safety Qualification Elements
1. Copper bar:smooth conduction, safe and reliable.
2. Wiring :wiring specification, standard safety.
3. Grounding:stainless steel, safe and reliable.
4. Raw materials:brand new plastic, durable and beautiful.
5. Movable door :not falling off, safe and beautiful.
Instruction
1. Internal installation: there is a boss inside the box for the installation of circuit board or track components.

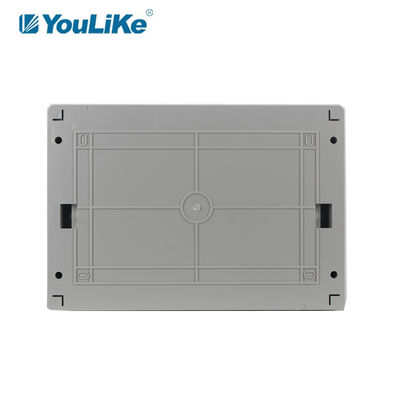

2. External installation: it can be directly fixed on the wall through the installation hole at the bottom of the box.
3. Inlet and outlet holes: the waterproof box is additionally perforated according to its own needs, and can be equipped with supporting waterproof cable joints to achieve waterproof effect.
Specifications of HA series, Surface
| Number | Model | Way | Box size | Weight | Knockouts |
| L*H*T (mm) | kg | one side qty | |||
|
#1 |
HA-4 | 4way | 140*210*100 | 0.52 | |
|
#2 |
HA-12 | 12way | 300*260*140 | 1.46 | |
|
#3 |
HA-18 | 18way | 410*285*140 | 1.93 | |
|
#4 |
HA-24 | 24way | 415*300*140 | 2.34 |

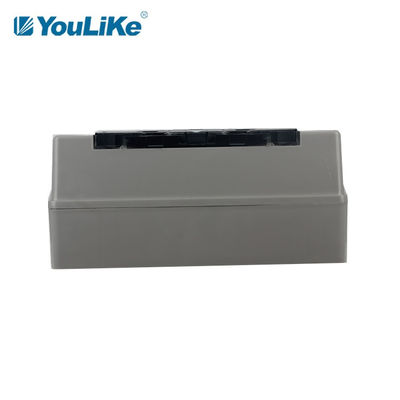

Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| HA-4 | 145*213*102 | 0.0031 | 1 | 0.52 | |
| HA-12 | 302*265*148 | 0.0118 | 1 | 1.46 | |
| HA-18 | 414*290*145 | 0.0174 | 1 | 1.93 | |
| HA-24 | 418*310*147 | 0.0190 | 1 | 2.34 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Profile
1. YOULIKE founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
