Product Details:
|
| Product Name: | Waterproof Outdoor Electrical Power Distribution Box | Protection Level: | IP65 |
|---|---|---|---|
| Dimension: | 140*210*100mm | Mounting Type: | Surface Mounted |
| Cover Material: | PC | Color: | RAL7035 |
| Box Material: | ABS | Rated Voltage: | 690V |
| High Light: | mcb4 way junction box,IP65 4 way junction box,IP65 4 pole mcb enclosure box |
||
4 Ways IP65 Waterproof Outdoor Plastic 4 Pole Junction Combiner Distribution Box Mcb Box
Application
HA series is mainly used in villa outdoor, construction site and residential indoor to protect all kinds of outdoor electrical equipment, waterproof, dustproof and moisture-proof.
Product Advantage
1. Strong box for durability.
2. Curved panel, matte process.
3. Rail btacket to prevent deformation.
4. High-quality copper bar, sturdy and durable.
5. Optimize the details to meet your needs.
Product Feature
1. Box body to be available for ABS material.
2. Transparent cover to be available for PC material.
3. Tested and approved to EN60947-1.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. Protection level reaches IP65.
Specifications of HA series, Surface
| Number | Model | Way | Box size | Weight | Knockouts |
| L*H*T (mm) | kg | one side qty | |||
|
#1 |
HA-4 | 4way | 140*210*100 | 0.52 | |
|
#2 |
HA-12 | 12way | 300*260*140 | 1.46 | |
|
#3 |
HA-18 | 18way | 410*285*140 | 1.93 | |
|
#4 |
HA-24 | 24way | 415*300*140 | 2.34 |

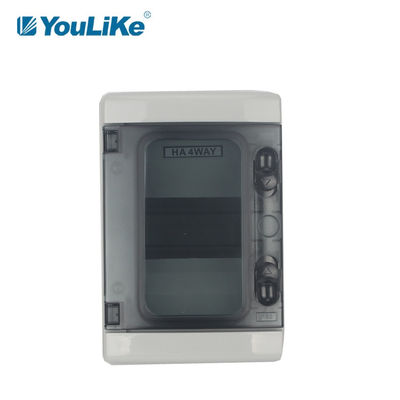

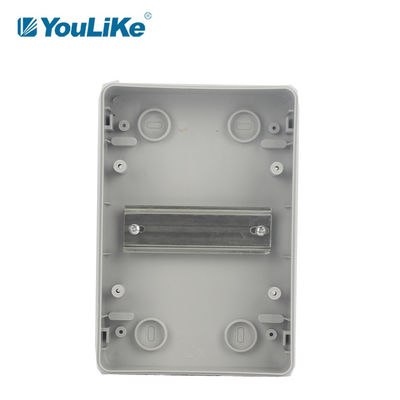

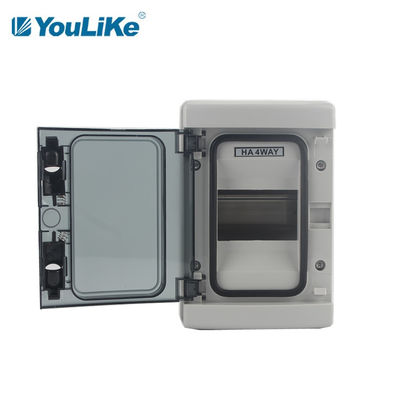

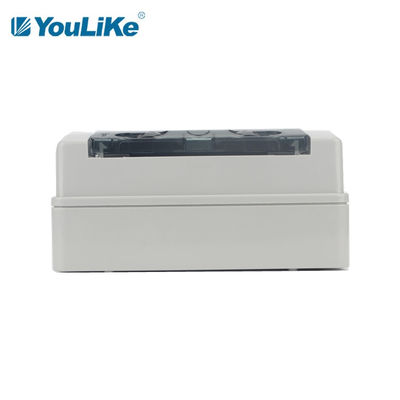

Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| HA-4 | 145*213*102 | 0.0031 | 1 | 0.52 | |
| HA-12 | 302*265*148 | 0.0118 | 1 | 1.46 | |
| HA-18 | 414*290*145 | 0.0174 | 1 | 1.93 | |
| HA-24 | 418*310*147 | 0.0190 | 1 | 2.34 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness).
2. Order arrangement
* ≤15 days stable delivery.
* specific MOQ.
* multiple payment terms.
* order status update.
3. Additional service
* 7X24 respondence service.
* on site service.
* quality discrepancy handle.
* accessories coordination.
