Product Details:
|
| Product Name: | Power Distribution Box | Box Material: | Powder Coated Steel |
|---|---|---|---|
| Cover Frame Material: | PC | Door Material: | PC |
| Protection Level: | IP40 | Mounting Type: | Flush |
| Way Dimension: | 18mm | OEM: | Accepted |
| High Light: | Flush Mounted Electrical DB Box,PC Electrical DB Box,PC consumer unit enclosure |
||

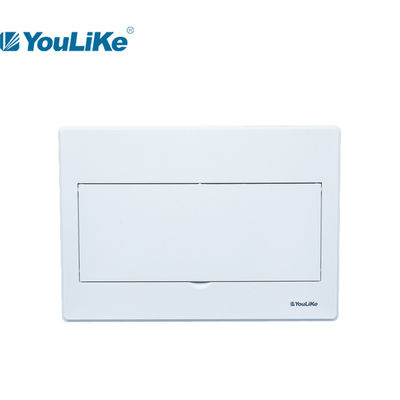

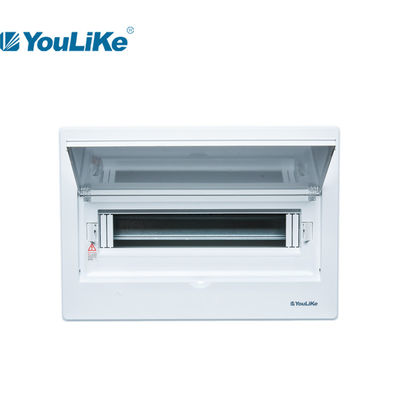

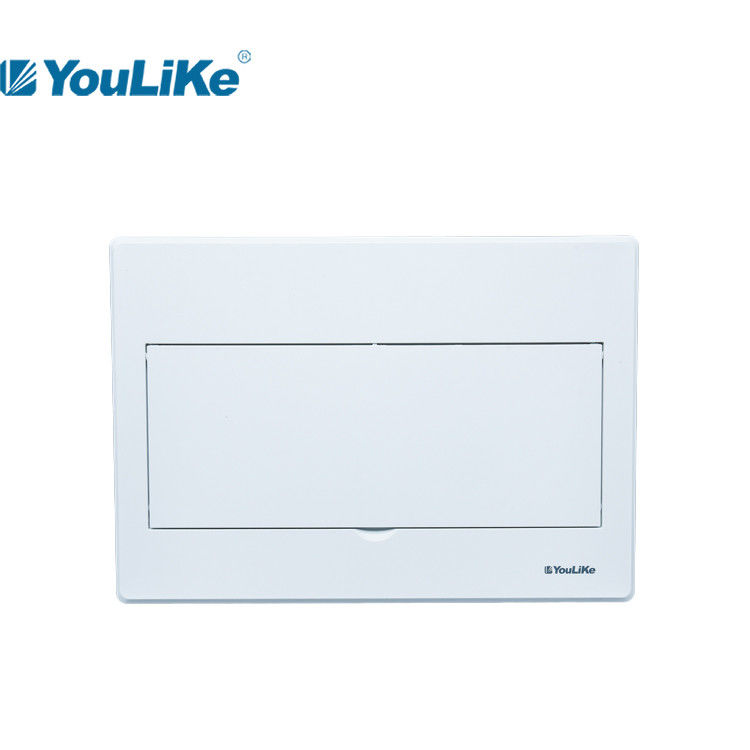

Plastic Power Distribution Box PC Enclosure Flush Mounted Box Electrical Db Box Price
Product Advantage
1. Select the copper bar with 60% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
Product Development Orientation
1. Standardized bottom bow installation.
2. Standardized equipment factory connection.
3. Standardized construction connection.
4. Standardized telecom installation.
Technology
1. The new hinge structure adopts metal shaft core, which is stable, reliable and durable.
2. The special stainless steel shrapnel fixes the movable door in the ideal position to ensure that the force of opening and closing the movable door is moderate, the rotation is smooth and there is no abnormal noise.

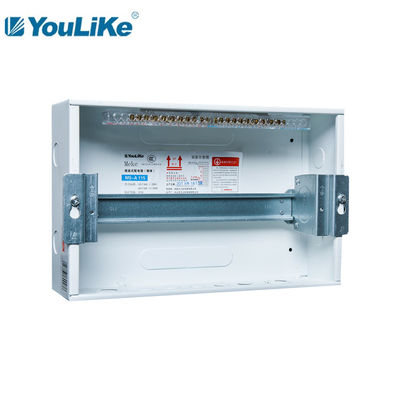

3. The internal guide rail bracket is composed of all metal parts, with lifting and rotation adjustment function and pre suspension function.
4. The grounding screw is made of stainless steel and stud is uncoated and the grounding is more sufficient.
Specifications of M5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M5-A 107 | 7way | 224*240*15.5(27.5) | 202*210*90*1.0 | 6.4*12 | 5 | 6 | 6 |
| M5-A 110 | 10way | 278*240*15.5(27.5) | 256*210*90*1.0 | 6.4*12 | 7 | 8 | 7 |
| M5-A 112 | 12way | 316*240*15.5(27.5) | 292*210*90*1.0 | 6.4*12 | 7 | 8 | 8 |
| M5-A 115 | 15way | 370*260*15.5(27.5) | 346*210*90*1.0 | 6.4*12 | 9 | 10 | 9 |
| M5-A 118 | 18way | 424*260*15.5(27.5) | 400*210*90*1.0 | 6.4*12 | 12 | 13 | 10 |
| M5-A 121 | 21way | 478*260*15.5(27.5) | 454*210*90*1.0 | 6.4*12 | 12 | 13 | 12 |
| M5-A 224 | 24way | 335*460*19(31) | 305*420*100*1.2 | 8*12 | 12 | 13 | 9 |
| M5-A 230 | 30way | 375*480*18(30) | 345*450*100*1.2 | 8*12 | 2*9 | 2*10 | 10 |
| M5-A 345 | 45way | 375*650*18(30) | 345*620*100*1.2 | 8*12 | 2*12 | 2*13 | 10 |
Office Overview Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M5-A 107 | 580*245*515 | 0.0732 | 10 | 9.58 | |
| M5-A 110 | 580*300*515 | 0.0896 | 10 | 14.66 | |
| M5-A 112 | 580*340*515 | 0.1016 | 10 | 17.10 | |
| M5-A 115 | 580*280*400 | 0.0650 | 5 | 9.25 | |
| M5-A 118 | 580*280*455 | 0.0739 | 5 | 10.20 | |
| M5-A 121 | 580*280*505 | 0.0821 | 5 | 11.65 | |
| M5-A 224 | 505*165*390 | 0.0325 | 1 | 6.70 | |
| M5-A 230 | 525*160*425 | 0.0357 | 1 | 3.60 | |
| M5-A 345 | 695*160*425 | 0.0473 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Attention Points

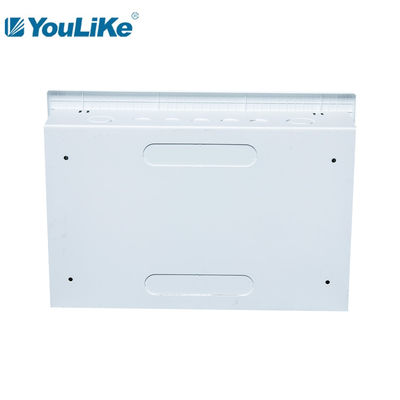

1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
