Product Details:
|
| Product Name: | Flush Distribution Box | Box Material: | 0.8&1.0mm Powder Coated Steel |
|---|---|---|---|
| Cover Frame Material: | PC | Door Material: | PC |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Protection Level: | IP40 | Mounting Type: | Flush |
| High Light: | 55A Flush Mount Distribution Box,MCB Flush Mount Distribution Box,MCB 7 way junction box |
||

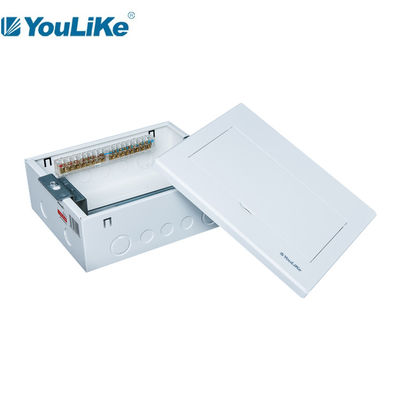

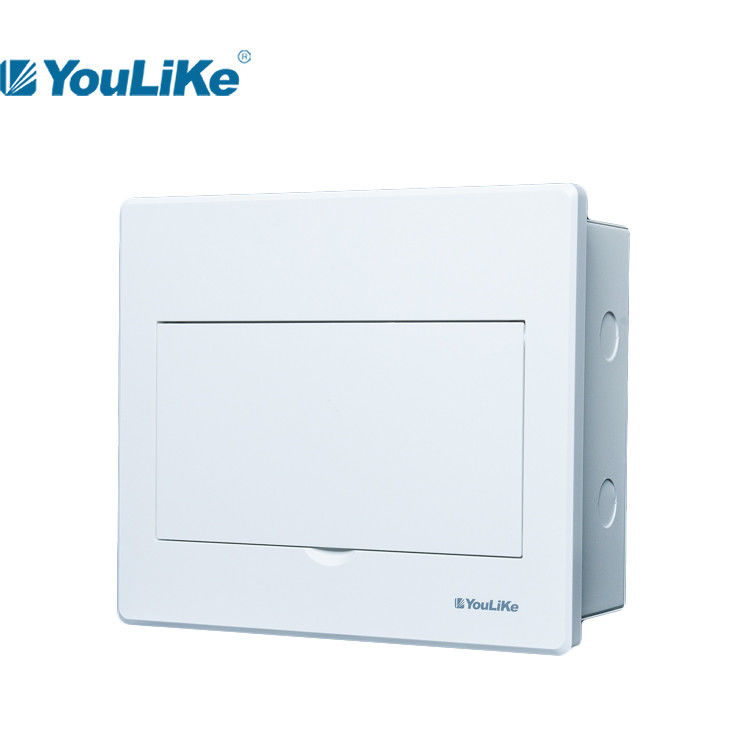

21way Flush Mounted MCB Distribution Box Plastic Box Enclosure 7 Way MCB Box
Product Meature
1. Box material: powder coated steel
2. Cover frame material: PC
3. Door material: PC (transparent door and white door )
4. All plastic parts : without specific flame retardant
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).

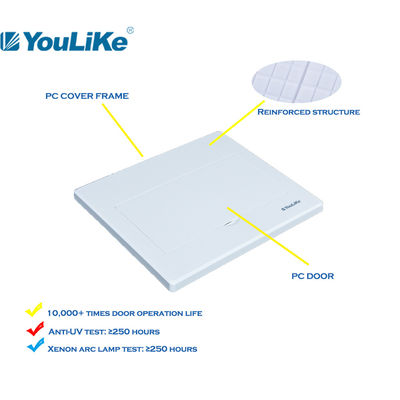

Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of M5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M5-A 107 | 7way | 224*240*15.5(27.5) | 202*210*90*1.0 | 6.4*12 | 5 | 6 | 6 |
| M5-A 110 | 10way | 278*240*15.5(27.5) | 256*210*90*1.0 | 6.4*12 | 7 | 8 | 7 |
| M5-A 112 | 12way | 316*240*15.5(27.5) | 292*210*90*1.0 | 6.4*12 | 7 | 8 | 8 |
| M5-A 115 | 15way | 370*260*15.5(27.5) | 346*210*90*1.0 | 6.4*12 | 9 | 10 | 9 |
| M5-A 118 | 18way | 424*260*15.5(27.5) | 400*210*90*1.0 | 6.4*12 | 12 | 13 | 10 |
| M5-A 121 | 21way | 478*260*15.5(27.5) | 454*210*90*1.0 | 6.4*12 | 12 | 13 | 12 |
| M5-A 224 | 24way | 335*460*19(31) | 305*420*100*1.2 | 8*12 | 12 | 13 | 9 |
| M5-A 230 | 30way | 375*480*18(30) | 345*450*100*1.2 | 8*12 | 2*9 | 2*10 | 10 |
| M5-A 345 | 45way | 375*650*18(30) | 345*620*100*1.2 | 8*12 | 2*12 | 2*13 | 10 |
Product Details Demonstration
Application
M5 series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 6% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Plastic wire clamps is equiped below the din rail.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M5-A 107 | 580*245*515 | 0.0732 | 10 | 9.58 | |
| M5-A 110 | 580*300*515 | 0.0896 | 10 | 14.66 | |
| M5-A 112 | 580*340*515 | 0.1016 | 10 | 17.10 | |
| M5-A 115 | 580*280*400 | 0.0650 | 5 | 9.25 | |
| M5-A 118 | 580*280*455 | 0.0739 | 5 | 10.20 | |
| M5-A 121 | 580*280*505 | 0.0821 | 5 | 11.65 | |
| M5-A 224 | 505*165*390 | 0.0325 | 1 | 6.70 | |
| M5-A 230 | 525*160*425 | 0.0357 | 1 | 3.60 | |
| M5-A 345 | 695*160*425 | 0.0473 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
