Product Details:
|
| Product Name: | 21 Wayminiature Circuit Breaker Distribution Box | Mounting Type: | Flush Mounting |
|---|---|---|---|
| Material: | Powder Coated Steel +ABS | Rated Voltage: | 400V+/-20% |
| Way Dimension: | 18mm | Certificate: | CE CCC |
| Protection Level: | IP40 | Application: | Indoor，Interior Decoration，residential,commerical |
| High Light: | MCB outdoor consumer unit box,21 way outdoor consumer unit box |
||

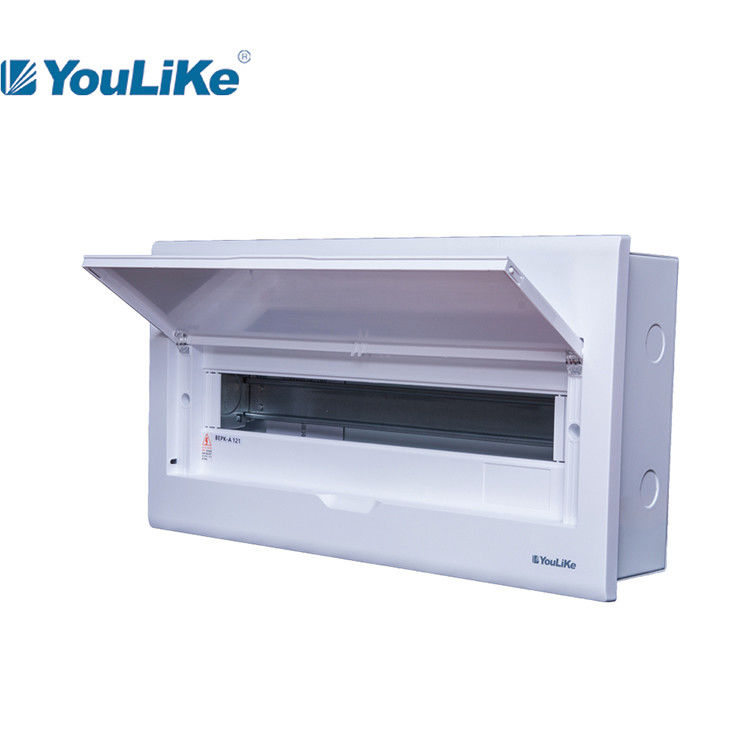

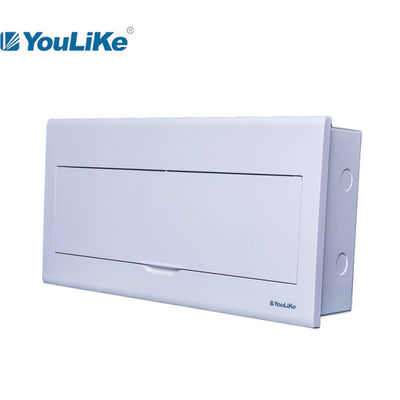

Flush Mounting 21 Way MCB Consumer Unit Box Power Distribution Box
Product Specification
1. Box material: powder coated steel
2. Cover frame material : ABS
3. pantel material: both ABS (for white door) and PC material (for transparent door).
4. protection level: IP40
5. All plastic parts are durable and safe (flame retardant PC).
6. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
| Model Number | BEP-A 121 |
| Color | white |
| Base Box Size | 444*192*80*0.8mm |
| Cover Size | 466*210*15.5(27.5)mm |
| Rated Frequency | 50-60H |
| Surface Treatment | coated |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| Certificate | CCC.CE |
Specifications of BE series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-A 104 | 4way | 160*190*15.5(27.5) | 138*170*80*0.8 | 6*10 | 4 | 5 | 2 |
| BEP-A 110 | 10way | 268*210*15.5(27.5) | 246*192*80*0.8 | 6*10 | 8 | 7 | 5 |
| BEP-A 113 | 13way | 322*210*15.5(27.5) | 300*192*80*0.8 | 6*10 | 8 | 7 | 6 |
| BEP-A 116 | 16way | 376*210*15.5(27.5) | 354*192*80*0.8 | 6*10 | 8 | 9 | 7 |
| BEP-A 118 | 18way | 412*210*15.5(27.5) | 390*192*80*0.8 | 6*10 | 11 | 10 | 8 |
| BEP-A 121 | 21way | 466*210*15.5(27.5) | 444*192*80*0.8 | 6*10 | 11 | 10 | 10 |
| BEP-A 124 | 24way | 520*250*15.5(27.5) | 498*230*90*1.0 | 6*10 | 13 | 12 | 8 |
| BEP-A 226 | 26way | 322*405*17.5(27.8) | 300*380*90*1.0 | 6*10 | 13 | 12 | 6 |
| BEP-A 232 | 32way | 375*405*17.5(27.8) | 354*380*90*1.0 | 6.4*12 | 16 | 15 | 7 |
| BEP-A 242 | 42way | 466*405*17.5(27.8) | 444*380*90*1.0 | 6.4*12 | 18 | 17 | 10 |
| BEP-A 348 | 48way | 393*650*17.5(29) | 363*620*100*1.2 | 6.4*12 | 2*10 | 2*11 | 8 |
| BEP-A 363 | 63way | 483*650*17.5(29.5) | 453*620*100*1.2 | 8*12 | 2*12 | 2*13 | 12 |
Details Image
About Us
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
