Product Details:
|
| Product Name: | Plastic MCB Distribution Box | Box Size: | 508×230×90×1.0 Mm |
|---|---|---|---|
| Rail Braket: | M5 Movable Bracket | Door Material: | ABS/PC |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Installation Method: | Embedded | Protection Level: | IP40 |
| High Light: | Flush Surface Mounted 24 Way MCB Box,Surface Mounted 24 Way MCB Box |
||

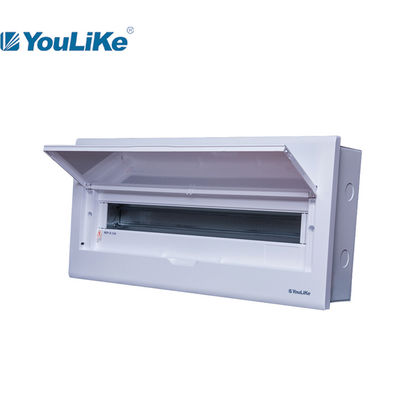

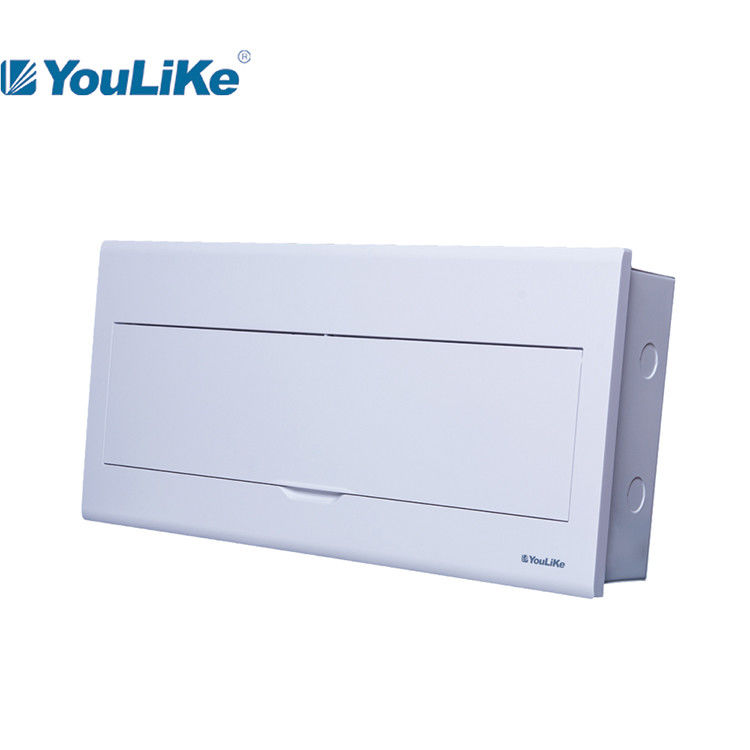

Flush And Surface Mounted Plastic Mcb Db Distribution Box 24 Way MCB Box
Company profile
YOULIKE founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
and the product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents,
It has served 1350 leading real estate companies and 1600 panel builder,morever In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces,After 16 years of development and customer support, it has also gained a certain reputation.
Application
1. The product can meet the comprehensive needs of modern residential buildings for communication and family intelligent system, and the interior space of the box is very strong.
2. Support the installation of WiFi function wireless router, wireless optical cat router, wired router and wired optical cat.
3. It can be used for TV video, voice telephone, network data and other functional applications.
4. It has a fiber melting disc, which can fix the fiber fusion part and wind the wire.
5. The expansion module can be installed.
6. It is applicable to shops,well decorated apartment ,ordinary real.
Product Specification

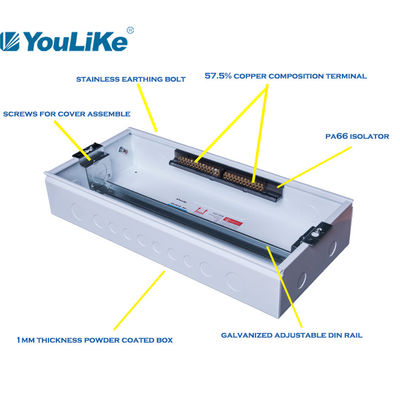

1. Box material: powder coated steel

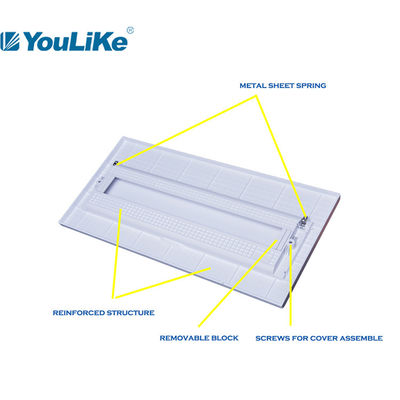

2. Cover frame material : ABS
3. pantel material: both ABS (for white door) and PC material (for transparent door).
4. protection level: IP40
5. All plastic parts are durable and safe (flame retardant PC).
6. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Specifications of BE series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BEP-A 104 | 4way | 160*190*15.5(27.5) | 138*170*80*0.8 | 6*10 | 4 | 5 | 2 |
| BEP-A 110 | 10way | 268*210*15.5(27.5) | 246*192*80*0.8 | 6*10 | 8 | 7 | 5 |
| BEP-A 113 | 13way | 322*210*15.5(27.5) | 300*192*80*0.8 | 6*10 | 8 | 7 | 6 |
| BEP-A 116 | 16way | 376*210*15.5(27.5) | 354*192*80*0.8 | 6*10 | 8 | 9 | 7 |
| BEP-A 118 | 18way | 412*210*15.5(27.5) | 390*192*80*0.8 | 6*10 | 11 | 10 | 8 |
| BEP-A 121 | 21way | 466*210*15.5(27.5) | 444*192*80*0.8 | 6*10 | 11 | 10 | 10 |
| BEP-A 124 | 24way | 520*250*15.5(27.5) | 498*230*90*1.0 | 6*10 | 13 | 12 | 8 |
| BEP-A 226 | 26way | 322*405*17.5(27.8) | 300*380*90*1.0 | 6*10 | 13 | 12 | 6 |
| BEP-A 232 | 32way | 375*405*17.5(27.8) | 354*380*90*1.0 | 6.4*12 | 16 | 15 | 7 |
| BEP-A 242 | 42way | 466*405*17.5(27.8) | 444*380*90*1.0 | 6.4*12 | 18 | 17 | 10 |
| BEP-A 348 | 48way | 393*650*17.5(29) | 363*620*100*1.2 | 6.4*12 | 2*10 | 2*11 | 8 |
| BEP-A 363 | 63way | 483*650*17.5(29.5) | 453*620*100*1.2 | 8*12 | 2*12 | 2*13 | 12 |
Production Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| BEP-A 104 | 525*215*355 | 0.0401 | 10 | 9.58 | |
| BEP-A 110 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BEP-A 113 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BEP-A 116 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BEP-A 118 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BEP-A 121 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BEP-A 124 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BEP-A 226 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BEP-A 232 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BEP-A 242 | 510*160*460 | 0.0376 | 1 | 4.75 | |
| BEP-A 348 | 700*145*445 | 0.0452 | 1 | 7.61 | |
| BEP-A 363 | 700*145*535 | 0.0543 | 1 | 8.57 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
