Product Details:
|
| Model: | RBP-A-242 | Material: | Powder Coated Steel +hips |
|---|---|---|---|
| Ways: | 42 Way | Box Size: | 354*380*9*1.0mm |
| Way Dimension: | 18mm | Protection Grade: | IP40 |
| Gurantee Period: | 2 Years | Rated Frequency: | 50-60HZ |
| Mounting Type: | Flush | Function Of Distribution Box: | Protect MCB And Other Devices |
| High Light: | Metal Base Single Phase Distribution Box,42 Way Single Phase Distribution Box,Panel Boards Single Phase MCB Box |
||

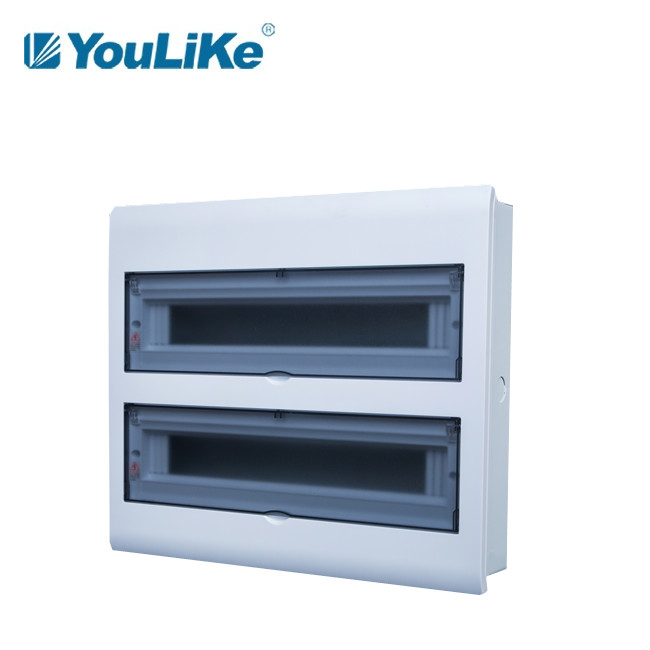

42 Way Panel Boards Electrical Metal Base Single Phase Distribution Box Price
Product Characteristics
1. Box material: powder coated steel
2. Cover frame material: HIPS
3. Door material: HIPS
4. All plastic parts : without specific flame retardant
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. Incandescent wire test at 650℃.
7. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
8. Xenon arc lamp test ≥250hrs.
9. Hinge operation test ≥10,000 times no break.
RB series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.
Parameters
| Product Name | 42 way mcb distribution box |
| Mounting Type | flush |
| Color | white/with picture |
| Base Box Size | 444*380*90*1.0mm |
| Cover Size | 37.8*405*185mm |
| Carton Size | 468*135*420mm |
| Standard | all countries |
| Approval | CE CCC |
| Adjustable din-rail | move ascend and descend |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | Accept |
Technology
1. The new hinge structure adopts metal shaft core, which is stable, reliable and durable.
2. The special stainless steel shrapnel fixes the movable door in the ideal position to ensure that the force of opening and closing the movable door i moderate, the rotation is smooth and there is no abnormal noise.

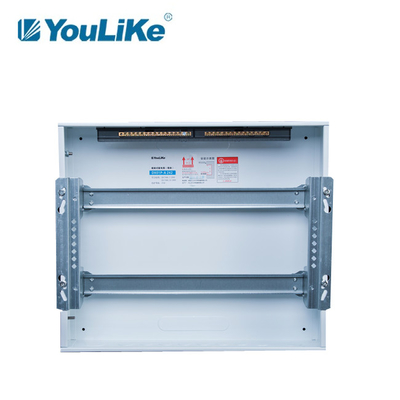

3. The internal guide rail bracket is composed of all metal parts, with lifting and rotation adjustment function and pre suspension function.
4. The grounding screw is made of stainless steel, the stud is uncoated and the grounding is more sufficient.
Product Details
About Us
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
