Product Details:
|
| Product Name: | Out Waterproof Power Distribution Box | Material: | ABS Body,PC Window |
|---|---|---|---|
| Way Type: | 24ways | Color: | RAL7035 |
| Protection Level: | IP65 | Application: | Outdoor Electronic Equipment |
| Certification: | Tested And Approved To EN60947-1 | Function: | Din Rail Connection According To EN50022 |
| High Light: | RAL7035 Waterproof MCB Box,IP65 db box 24 way |
||

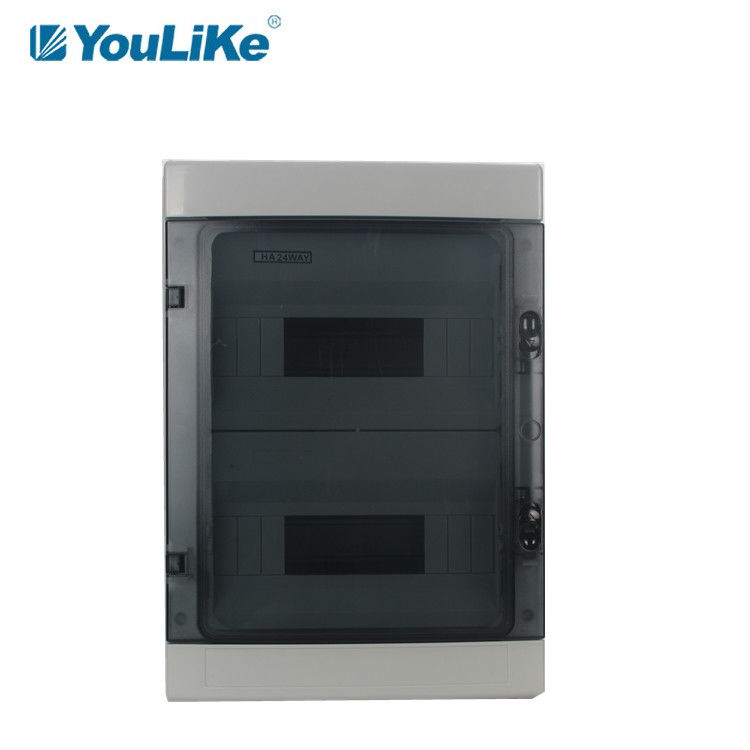

Outdoor Waterproof 24 Way Electrical Power Plastic MCB Distribution Box
Product Feature
HA series is mainly used in villa outdoor, construction site and residential indoor to protect all kinds of outdoor electrical equipment, waterproof, dustproof and moisture-proof.
* Material:
1. Panel is the ABS material for the engineering, high strength, never change color.
2. The transparent material is PC.
* Color: Grey
* HS Code: 8537109090
* Composition Structure:
1. Cover push-type opening and closing.Face covering of the distribution box adopts the push-type opening and closing mode, the face mask can be opened by pressing lightly, the self-locking positioning hinge structure is provided when opening.
2. Wiring design of the power distribution box.
The guide rail support plate can be lifted to the highest movable point, it is no longer limited by the narrow space when installing the wire. To install easily, the switch of the distribution box is set up with the wire groove and wire pipe exit-holes, which are easy to use for a variety of wire grooves and wire pipes.
Instruction

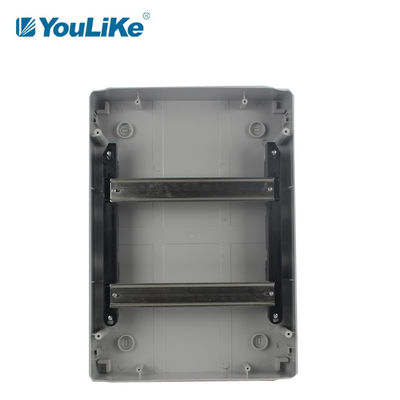

1. Internal installation: there is a boss inside the box for the installation of circuit board or track components.
2. External installation: it can be directly fixed on the wall through the installation hole at the bottom of the box.
3. Inlet and outlet holes: the waterproof box is additionally perforated according to its own needs, and can be equipped with supporting waterproof cable joints to achieve waterproof effect.
Product Parameters
| Series | HA-24WAY |
| Color | RAL7035 |
| Material | ABS for body ,PC for cover |
| Full Box Size | 295*420*140mm |
| Approval | CE, |
| Accessories | din rail + terminals |
| Installation Type | surface |
| Protection Grade | IP65 |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Product Details
Specifications of HA series, Surface
| Number | Model | Way | Box size | Weight | Knockouts |
| L*H*T (mm) | kg | one side qty | |||
|
#1 |
HA-4 | 4way | 140*210*100 | 0.52 | |
|
#2 |
HA-12 | 12way | 300*260*140 | 1.46 | |
|
#3 |
HA-18 | 18way | 410*285*140 | 1.93 | |
|
#4 |
HA-24 | 24way | 415*300*140 | 2.34 |
