Product Details:
|
| Product Name: | Waterproof Outdoor Electrical Power Distribution Box | Mounting Type: | Surface Mounted |
|---|---|---|---|
| Color: | RAL7035 | Cover Material: | PC |
| Box Material: | ABS | Rated Voltage: | 690V |
| Certificate: | CE CCC | Way Type: | 4ways |
| Highlight: | IP65 Waterproof MCB Box,IP65 mcb main switch board |
||

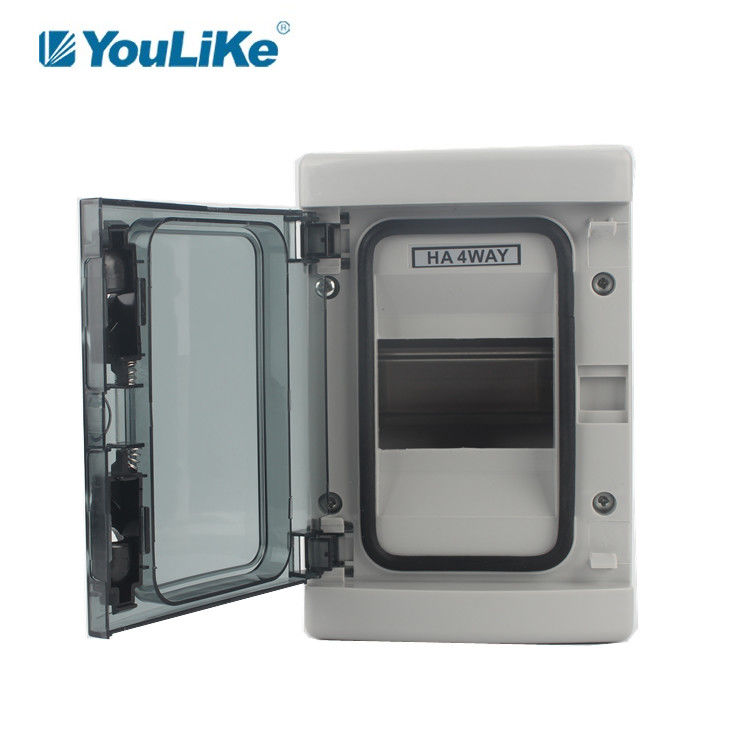

IP65 Plastic Waterproof Outdoor Electrical Power Distribution Box MCB Switchboard
Quality Assurance
1. national CCC certification standard.
2. The plate thickness meets the national standard without error.
3. All brand-new high-quality materials.
4. The protection level reaches IP65.
Product Characteristics
1. Box body to be available for ABS material.
2. Transparent cover to be available for PC material.
3. Tested and approved to EN60947-1.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Application
HA series is mainly used in villa outdoor, construction site and residential indoor to protect all kinds of outdoor electrical equipment, waterproof, dustproof and moisture-proof.
Specifications of HA series, Surface
| Number | Model | Way | Box size | Weight | Knockouts |
| L*H*T (mm) | kg | one side qty | |||
|
#1 |
HA-4 | 4way | 140*210*100 | 0.52 | |
|
#2 |
HA-12 | 12way | 300*260*140 | 1.46 | |
|
#3 |
HA-18 | 18way | 410*285*140 | 1.93 | |
|
#4 |
HA-24 | 24way | 415*300*140 | 2.34 |

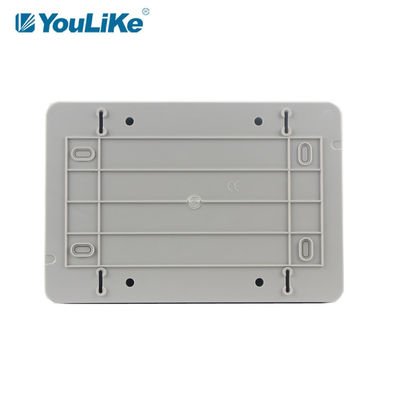

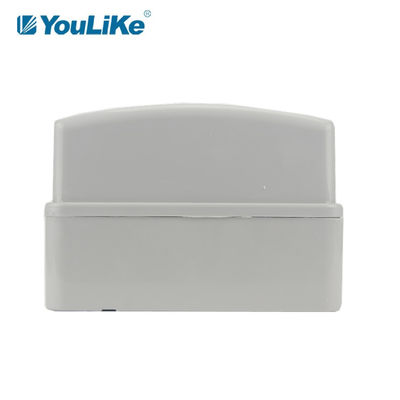

Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| HA-4 | 145*213*102 | 0.0031 | 1 | 0.52 | |
| HA-12 | 302*265*148 | 0.0118 | 1 | 1.46 | |
| HA-18 | 414*290*145 | 0.0174 | 1 | 1.93 | |
| HA-24 | 418*310*147 | 0.0190 | 1 | 2.34 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Profile
1. YOULIKE founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
