Product Details:
|
| Product Name: | Surface Distribution Box | Color: | White |
|---|---|---|---|
| Cover Material: | HIPS/HIPS+PC | Terminal Dimension: | 6x9mm |
| Application: | Metal Power Transmission | Mounting Type: | Surface Mounted |
| Window: | Opaque | Warranty: | 2 Year |
| High Light: | CCC household consumer unit,13 way household consumer unit,CCC wall mounted switchboard |
||

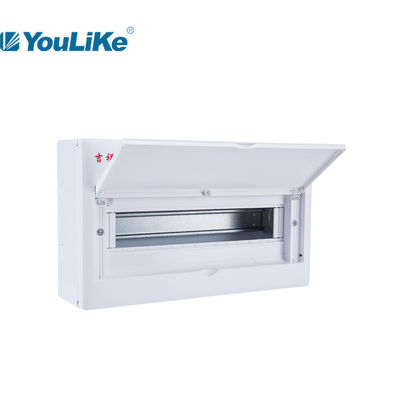

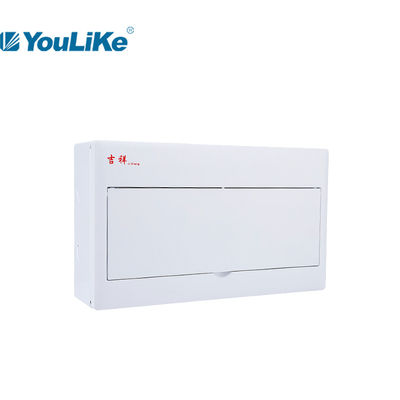

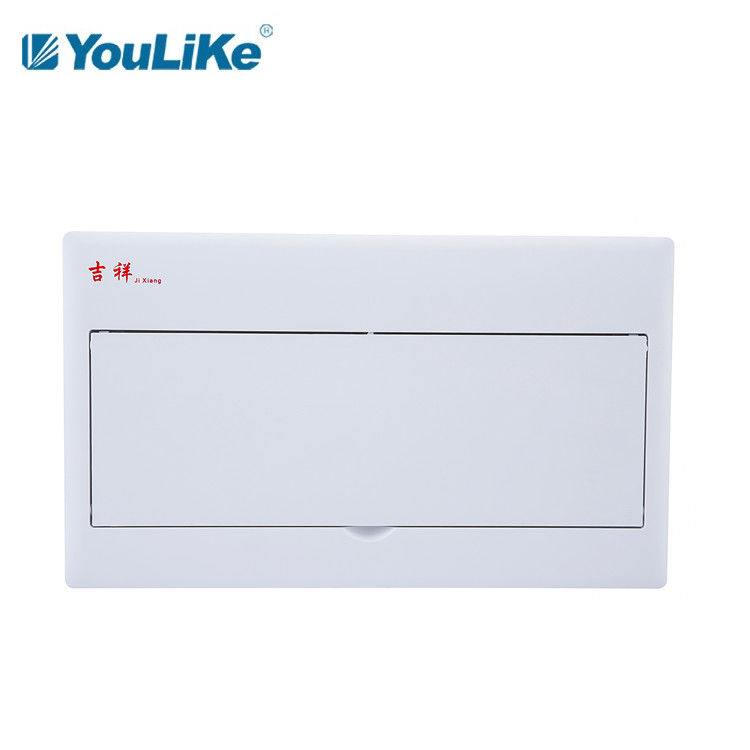

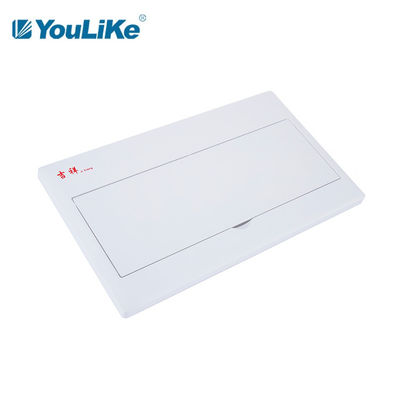

Indoor Household Consumer Units White Cover Power Distribution Box Distribution With Good Price
Product Feature
1. Good quality bottom box, safe and reliable.
2. High quality copper bar, durable.

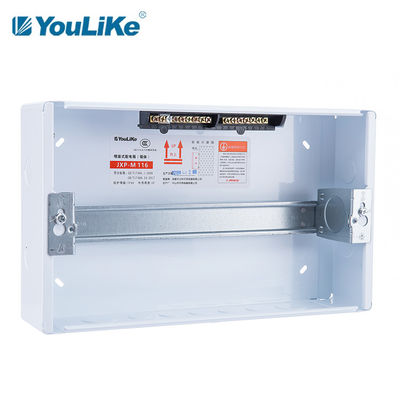

3. Straighten din rail and stabilize the support.
4. Stainless steel screws have high hardness and good mechanical properties.
5. The separate hinge is stable enough.
Safety Qualification Elements
1. Copper bar:smooth conduction, safe and reliable.
2. Wiring :wiring specification, standard safety.
3. Grounding:stainless steel, safe and reliable.
4. Raw materials:brand new plastic, durable and beautiful.
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of JX series, Surface
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| JXP-M 106 | 6way | 178*210*17.5(26) | 177*209*75*0.8 | 6*9 | 4 | 3 | 2 |
| JXP-M 110 | 10way | 250*210*17.5(26) | 249*209*75*0.8 | 6*9 | 6 | 5 | 5 |
| JXP-M 113 | 13way | 304*210*17.5(26) | 303*209*75*0.8 | 6*9 | 6 | 5 | 6 |
| JXP-M 116 | 16way | 358*210*17.5(26) | 357*209*75*0.8 | 6*9 | 8 | 7 | 7 |
| JXP-M118 | 18way | 394*210*17.5(26) | 393*209*75*0.8 | 6*9 | 11 | 10 | 8 |
| JXP-M 121 | 21way | 448*210*17.5(26) | 477*209*75*0.8 | 6*9 | 11 | 10 | 10 |
| JXP-M 232 | 32way | 358*405*17.5(26) | 357*404*75*0.8 | 6*9 | 13 | 12 | 7 |
| JXP-M 242 | 42way | 448*405*17.5(26) | 447*404*75*0.8 | 6*9 | 16 | 15 | 10 |
Company Overview Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| JXP-M 106 | 505*200*455 | 0.0460 | 10 | ||
| JXP-M 110 | 505*275*455 | 0.0632 | 10 | 14.66 | |
| JXP-M 113 | 505*325*455 | 0.0747 | 10 | 17.10 | |
| JXP-M 116 | 505*230*385 | 0.0448 | 5 | 9.25 | |
| JXP-M 118 | 505*230*425 | 0.0494 | 5 | 10.20 | |
| JXP-M 121 | 505*230*475 | 0.0552 | 5 | 11.65 | |
| JXP-M 232 | 460*135*420 | 0.0261 | 1 | 4.05 | |
| JXP-M 242 | 505*135*465 | 0.0317 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
