Product Details:
|
| Product Name: | Surface Distribution Box | Cover Material: | HIPS/HIPS+PC |
|---|---|---|---|
| Terminal Dimension: | 6x9mm | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Protection Level: | IP40 |
| Mounting Type: | Flush | Rated Frequency: | 50-60HZ |
| High Light: | 55A Single Phase MCB Box,10 Ways Single Phase MCB Box,10 way mcb distribution box |
||

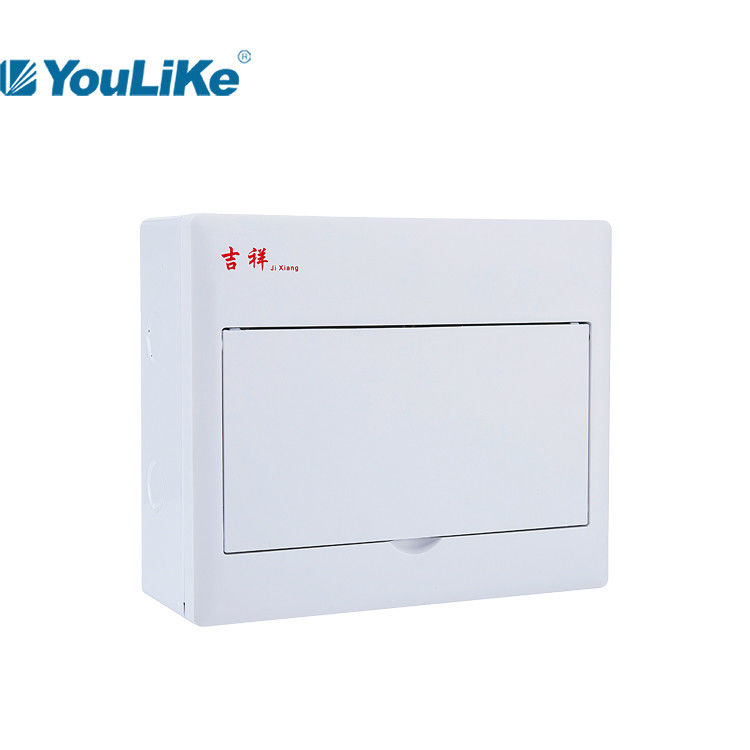

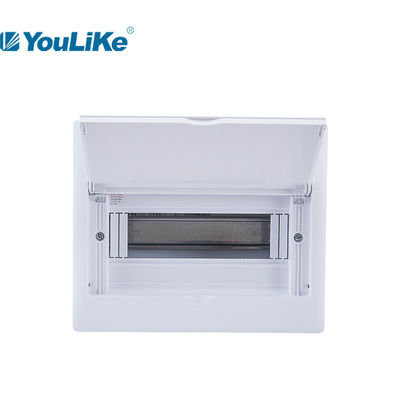

10 Ways Surface Mounted MCB Electrical Distribution Box Power Distribution Equipment Plastic Base Box
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Product Feature
1. Good quality bottom box, safe and reliable.

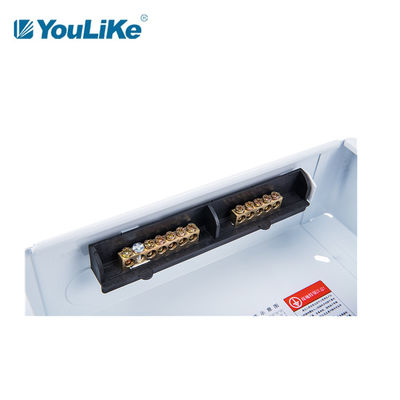

2. High quality copper bar, durable.

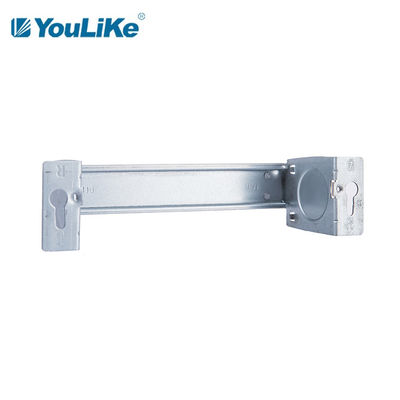

3. Straighten din rail and stabilize the support.
4. Stainless steel screws have high hardness and good mechanical properties.
5. The separate hinge is stable enough.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of JX series, Surface
|
Model |
Way |
Cover size |
Box size |
Terminals |
Knockouts |
||
|
L*H*T (mm) |
L*W*D*T(mm) |
size(mm) |
PE |
N |
one side qty |
||
|
JXP-M106 |
6way |
178*210*17.5(26) |
177*209*75*0.8 |
6*9 |
4 |
3 |
2 |
|
JXP-M 110 |
10way |
250*210*17.5(26) |
249*209*75*0.8 |
6*9 |
6 |
5 |
5 |
|
JXP-M113 |
13way |
304*210*17.5(26) |
303*209*75*0.8 |
6*9 |
6 |
5 |
6 |
|
JXP-M 116 |
16way |
358*210*17.5(26) |
357*209*75*0.8 |
6*9 |
8 |
7 |
7 |
|
JXP-M 118 |
18way |
394*210*17.5(26) |
393*209*75*0.8 |
6*9 |
11 |
10 |
8 |
|
JXP-M 121 |
21way |
448*210*17.5(26) |
477*209*75*0.8 |
6*9 |
11 |
10 |
10 |
|
JXP-M 232 |
32way |
358*405*17.5(26) |
357*404*75*0.8 |
6*9 |
13 |
12 |
7 |
|
JXP-M 242 |
42way |
448*405*17.5(26) |
447*404*75*0.8 |
6*9 |
16 |
15 |
10 |
Company Overview Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| JXP-M 106 | 505*200*455 | 0.0460 | 10 | ||
| JXP-M 110 | 505*275*455 | 0.0632 | 10 | 14.66 | |
| JXP-M 113 | 505*325*455 | 0.0747 | 10 | 17.10 | |
| JXP-M 116 | 505*230*385 | 0.0448 | 5 | 9.25 | |
| JXP-M 118 | 505*230*425 | 0.0494 | 5 | 10.20 | |
| JXP-M 121 | 505*230*475 | 0.0552 | 5 | 11.65 | |
| JXP-M 232 | 460*135*420 | 0.0261 | 1 | 4.05 | |
| JXP-M 242 | 505*135*465 | 0.0317 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
