Product Details:
|
| Product Name: | Single Phase Distribution Box | Door Material: | HIPS/PC |
|---|---|---|---|
| Mounting Type: | Flush | Specification: | 42 Way |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Protection Level: | IP30 | Way Dimension: | 18mm |
| High Light: | 32 way MCB Panel Box,IP30 MCB Panel Box,IP30 Power Distribution Equipment |
||

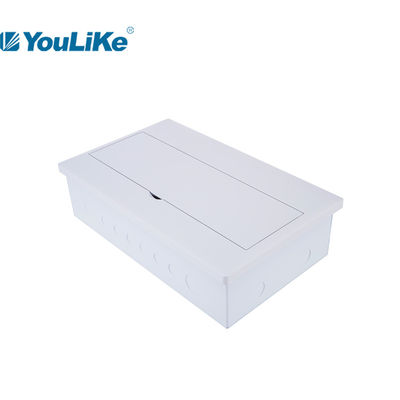

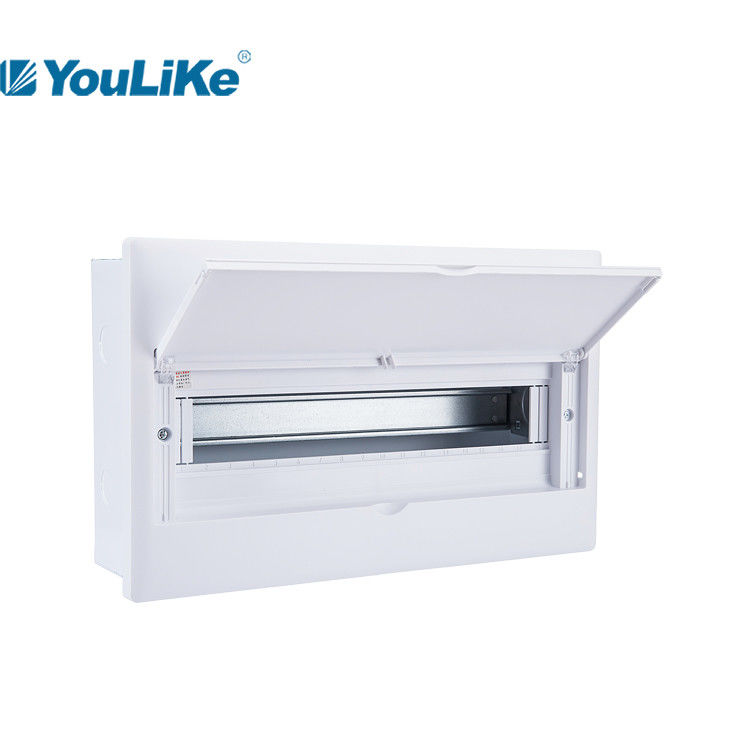

Surface Mounted MCB Electrical Distribution Box IP30 Power Distribution Equipment MCB Panel Box
Quality Assurance
1. national CCC certification standard.
2. The plate thickness meets the national standard without error.
3. All brand-new high-quality materials.
4. The protection level reaches IP30.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
5. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
6. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness)
2. Order arrangement
* ≤15 days stable delivery
* specific MOQ
* multiple payment terms
* order status update
3. Additional service
* 7X24 respondence service
* on site service
* quality discrepancy handle
* accessories coordination
Specifications of JX series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| JXP-A 106 | 6way | 178*210*17.5(26) | 156*192*75*0.8 | 6*9 | 4 | 3 | 2 |
| JXP-A 110 | 10way | 250*210*17.5(26) | 228*192*75*0.8 | 6*9 | 6 | 5 | 5 |
| JXP-A 113 | 13way | 304*210*17.5(26) | 282*192*75*0.8 | 6*9 | 6 | 5 | 6 |
| JXP-A 116 | 16way | 358*210*17.5(26) | 336*192*75*0.8 | 6*9 | 8 | 7 | 7 |
| JXP-A 118 | 18way | 394*210*17.5(26) | 372*192*75*0.8 | 6*9 | 11 | 10 | 8 |
| JXP-A 121 | 21way | 448*210*17.5(26) | 426*192*75*0.8 | 6*9 | 11 | 10 | 10 |
| JXP-A 124 | 24way | 524*252*17.5(26.5) | 498*230*90*1.0 | 6*9 | 11 | 12 | 10 |
| JXP-A 232 | 32way | 358*405*17.5(26) | 336*380*90*0.8 | 6*9 | 13 | 15 | 7 |
| JXP-A 242 | 42way | 448*405*17.5(26) | 426*380*90*0.8 | 6*9 | 16 | 17 | 10 |

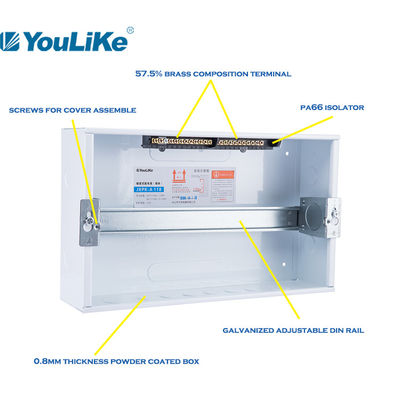

Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| JXP-A 106 | 505*200*455 | 0.0460 | 10 | ||
| JXP-A 110 | 505*275*455 | 0.0632 | 10 | 14.66 | |
| JXP-A 113 | 505*325*455 | 0.0747 | 10 | 17.10 | |
| JXP-A 116 | 505*230*385 | 0.0448 | 5 | 9.25 | |
| JXP-A 118 | 505*230*425 | 0.0494 | 5 | 10.20 | |
| JXP-A 121 | 505*230*475 | 0.0552 | 5 | 11.65 | |
| JXP-A 124 | 465*275*555 | 0.0710 | 4 | 6.70 | |
| JXP-A 232 | 460*135*420 | 0.0261 | 1 | 4.05 | |
| JXP-A 242 | 505*135*465 | 0.0317 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
