Product Details:
|
| Product Name: | Indoor Lighting Control Way Cover MCB MCCB Isolator Power Distribution Box | Box Material: | 1.2mm Powder Coated Steel |
|---|---|---|---|
| Cover Frame Material: | 1.2mm Powder Coated Steel | Door Material: | 1.2mm Powder Coated Steel |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Protection Level: | IP40 | Application: | Indoor |
| High Light: | Lighting Control Equipotential Box,Indoor Equipotential Box |
||

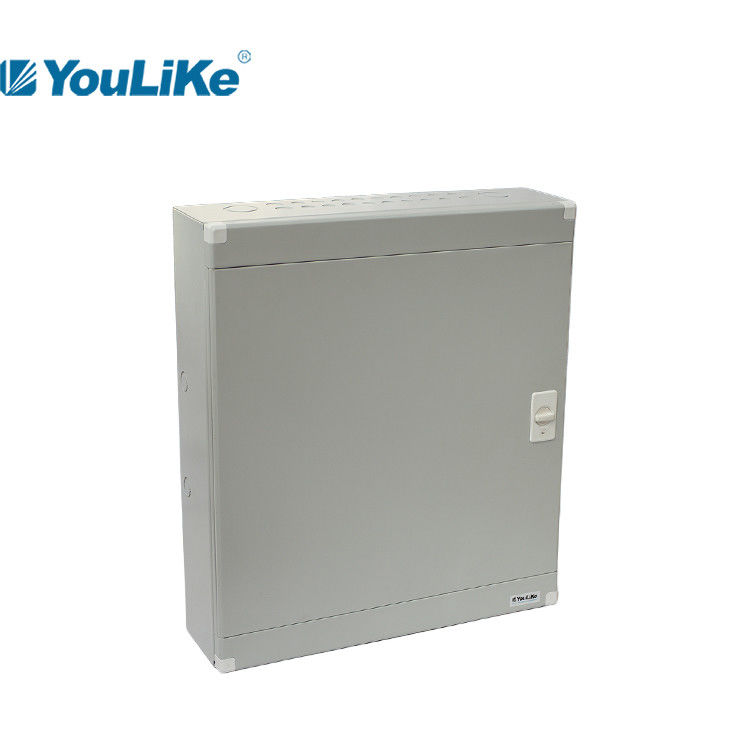

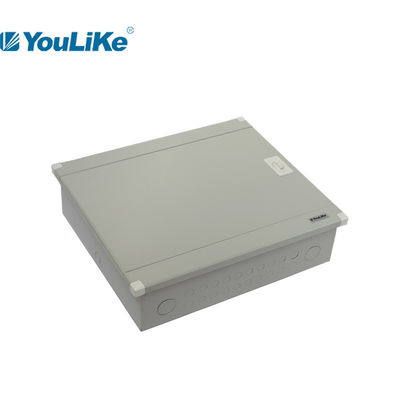

YOULIKE Ip65 Standing Electrical Box Assembly Power Distribution Control Board Mcb Box
Product Development Orientation
1. Standardized bottom bow installation.
2. Standardized equipment factory connection.
3. Standardized construction connection.
4. Standardized telecom installation.
Product Characteristics
1. Product to be full metal, both cover and box to be 1.2mm thickness powder coated steel.
2. Cover is equiped with lock.
3. Both MCB/MCCB isolator are workable and din rail arrangement will be customized accordingly.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. Both surface mount and flush mount available.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specifications of M9 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M9-A 236 | 36way | 492*520*23(45) | 452*490*140*1.2 | 5*15 | 17 | 19 | 18 |
| M9-A 248 | 48way | 600*520*23(45) | 560*490*140*1.2 | 5*15 | 23 | 31 | 24 |
| M9-A 354 | 54way | 492*690*23(45) | 452*660*140*1.2 | 5*15 | 23 | 19 | 18 |
| M9-A 372 | 72way | 600*690*23(45) | 560*660*140*1.2 | 5*15 | 23 | 31 | 24 |
Specifications of M9 series, Surface
| Model | Way | Cover size | Box size | Terminals | Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M9-M 236 | 36way | 492*520*23(45) | 492*520*149*1.2 | 5*15 | 17 | 19 | 18 |
| M9-M 248 | 48way | 600*520*23(45) | 600*520*149*1.2 | 5*15 | 23 | 31 | 24 |
| M9-M 354 | 54way | 492*690*23(45) | 492*690*149*1.2 | 5*15 | 23 | 19 | 18 |
| M9-M 372 | 72way | 600*690*23(45) | 600*690*149*1.2 | 5*15 | 23 | 31 | 24 |

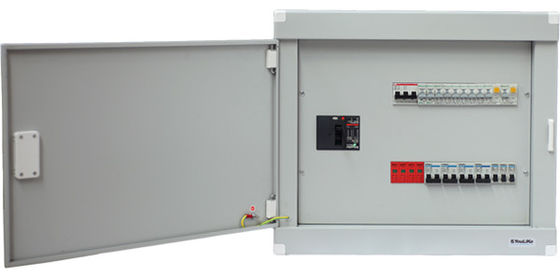

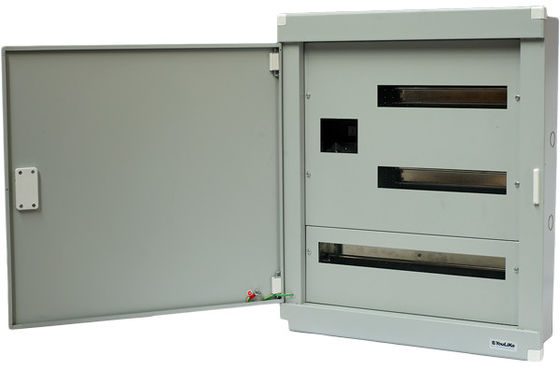

Product Details Demonstration
M9 series is used for indoor power distribution mainly for commercial buildings like shopping mall, villa and etc.

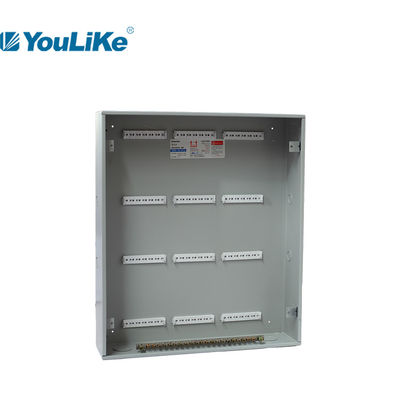

#1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
#2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
#3. Stainless earthing bolts with warning label.
#4. Din rail will be change accordingly depends on MCB or MCCB isolator.
#5. Independent hinge metal reinfoecement.
Application
Mainly used for indoor lighting control for residential and commercial buildings.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M9-236 | 595*565*245 | 0.0824 | 1 | 9.58 | |
| M9-248 | 595*675*245 | 0.0984 | 1 | 14.66 | |
| M9-354 | 765*565*245 | 0.1059 | 1 | 17.10 | |
| M9-372 | 765*675*245 | 0.1266 | 1 | 9.25 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Information
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. yesr service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
