Product Details:
|
| Item Name: | 13 Way Mcb Distribution Box | Box Material: | 0.8mm Powder Coated Steel |
|---|---|---|---|
| Cover Frame Material: | HIPS | Door Material: | HIPS/PC |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Protection Level: | IP40 | Accessories: | Din Rail +teriminal+bolt |
| High Light: | 6 Way Single Phase MCB Box,IP40 Single Phase MCB Box,6 way mcb box single door |
||

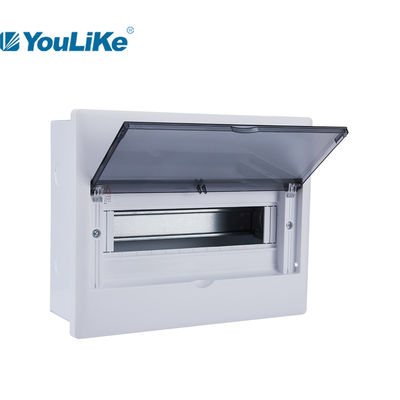

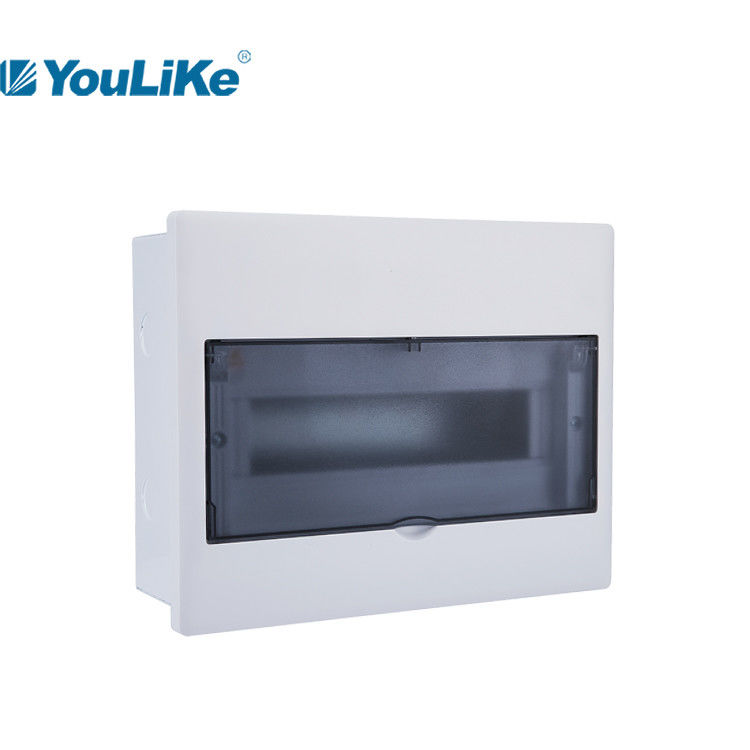

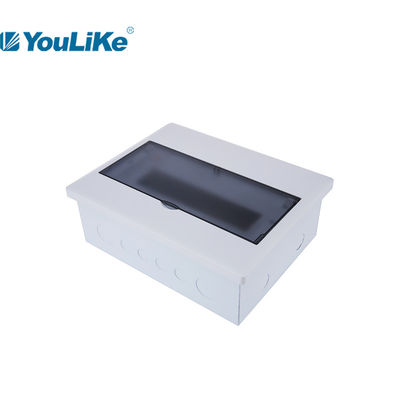

IEC Certified Surface Mount Light Electrical distribution Board With Metal Din Rail
Product Characteristics
1. Box to be available for powder coated steel, 0.8mm thickness (24way box is with 1.0mm thickness).
2. Cover frame to be available for HIPS material.
3. Door to be available for both HIPS (for white door) and PC material (for transparent door).
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Product Parameters
| Model | JX-A 113 |
| Mounting Type | flush mounting |
| Base Box Size | 282*192*75*0.8mm |
| Cover Size | 304*210*17.5(26)mm |
| Accessories | bolt, din rail , terminal |
| Application | consumers and commercial buildings |
| Approval | CE,CCC |
| Circuit Breaker Rail | galvanised Steel |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | offered |
Specifications of JX series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| JXP-A 106 | 6way | 178*210*17.5(26) | 156*192*75*0.8 | 6*9 | 4 | 3 | 2 |
| JXP-A 110 | 10way | 250*210*17.5(26) | 228*192*75*0.8 | 6*9 | 6 | 5 | 5 |
| JXP-A 113 | 13way | 304*210*17.5(26) | 282*192*75*0.8 | 6*9 | 6 | 5 | 6 |
| JXP-A 116 | 16way | 358*210*17.5(26) | 336*192*75*0.8 | 6*9 | 8 | 7 | 7 |
| JXP-A 118 | 18way | 394*210*17.5(26) | 372*192*75*0.8 | 6*9 | 11 | 10 | 8 |
| JXP-A 121 | 21way | 448*210*17.5(26) | 426*192*75*0.8 | 6*9 | 11 | 10 | 10 |
| JXP-A 124 | 24way | 524*252*17.5(26.5) | 498*230*90*1.0 | 6*9 | 11 | 12 | 10 |
| JXP-A 232 | 32way | 358*405*17.5(26) | 336*380*90*0.8 | 6*9 | 13 | 15 | 7 |
| JXP-A 242 | 42way | 448*405*17.5(26) | 426*380*90*0.8 | 6*9 | 16 | 17 | 10 |
Product Details Demonstration
About Us
YouLike is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, switch box, MCB consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, CCC test.
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
