Product Details:
|
| Product Name: | Flush Mounted Electrical Distribution Board | Wiring Hole: | PE11,N10 |
|---|---|---|---|
| Color: | White | Way Dimension: | 18mm |
| Cover Mounting Hole Dimensionmension: | 396mm | Place Of Origin: | Guangdong,China |
| Cooper Bar Style: | Single | Box Material: | 1.0&1.2mm Powder Coated Steel |
| Door Material: | HIPS | ||
| High Light: | Low Voltage 32 way mcb box,Flush Mounting 32 way mcb box,Low Voltage MCB Box |
||

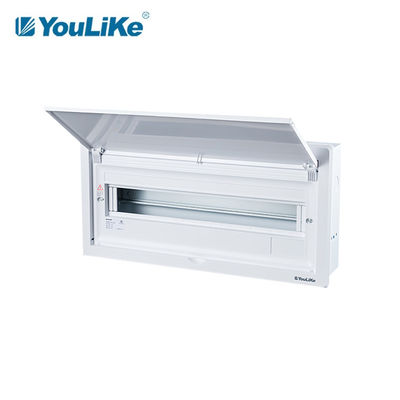

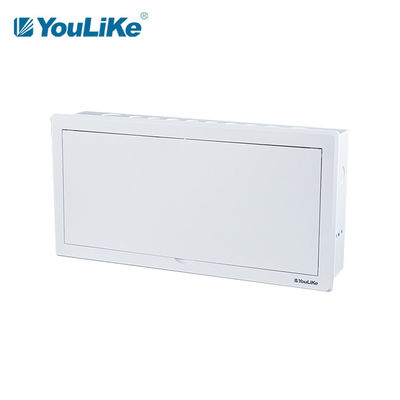

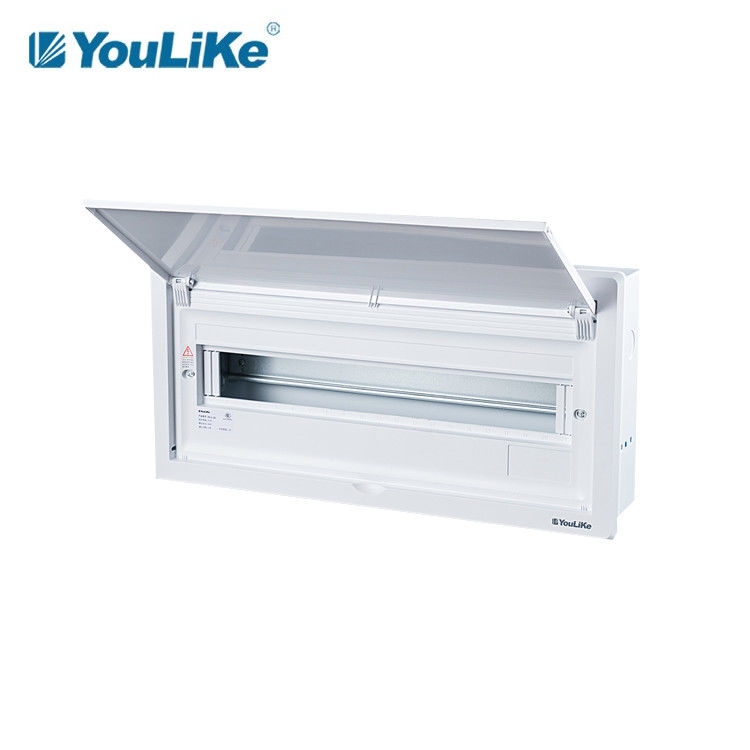

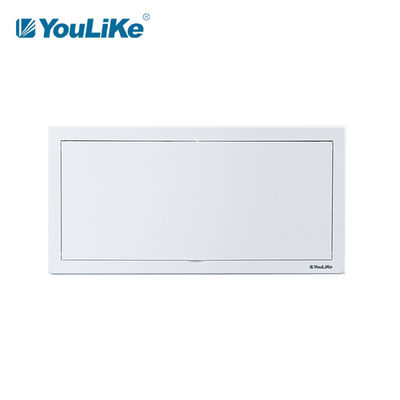

Low Voltage Indoor Protection Level 40 Plastic Flush Mounting Electrical Power Distribution Box
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.
Safety Qualification Elements

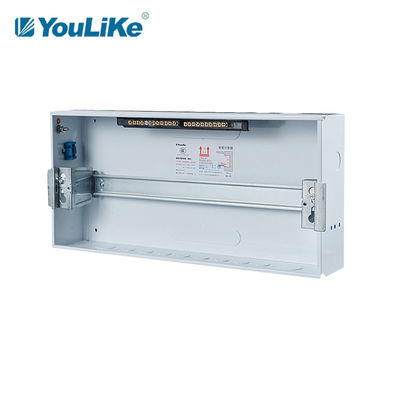

1. Copper bar:smooth conduction, safe and reliable.
2. Wiring :wiring specification, standard safety.
3. Grounding:stainless steel, safe and reliable.
4. Raw materials:brand new plastic, durable and beautiful.
5. Movable door :not falling off, safe and beautiful.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.
3. It is recommended to install the support surface after the wall is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not equipped with earthing.
Specifications of P3 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
|
P3-A 112 |
12way | 312×230×10(27.5) | 292×210×90×1.0 | 6×10.4 | 8 | 7 | 6 |
|
P3-A 115 |
15way | 366×240×10(27.5) | 346×220×90×1.0 | 6×10.4 | 8 | 7 | 7 |
|
P3-A 118 |
18way | 420×240×10(27.5) | 400×220×90×1.0 | 6×10.4 | 11 | 10 | 9 |
|
P3-A 121 |
21way | 474×240×10(27.5) | 454×220×90×1.0 | 6×10.4 | 11 | 10 | 10 |
|
P3-A 124 |
24way | 528×250×10(27.5) | 508×230×90×1.0 | 6×10.4 | 13 | 12 | 10 |
|
P3-A 226 |
26way | 348×400×10(27.5) | 328×380×90×1.0 | 6×10.4 | 13 | 12 | 6 |
|
P3-A 232 |
32way | 402×400×10(27.5) | 382×380×90×1.0 | 6.4×12 | 16 | 15 | 7 |
|
P3-A 242 |
42way | 492×400×10(27.5) | 472×380×90×1.0 | 6.4×12 | 18 | 17 | 10 |
Office Area Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| P3-A 112 | 655×300×385 | 0.0756 | 5 | 17.10 | |
| P3-A 115 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| P3-A 118 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| P3-A 121 | 655×310×545 | 0.1107 | 5 | 11.65 | |
| P3-A 124 | 655×320×600 | 0.1258 | 5 | 12.40 | |
| P3-A 226 | 460×135×385 | 0.0240 | 1 | 5.40 | |
| P3-A 232 | 460×135×440 | 0.0273 | 1 | 6.70 | |
| P3-A 242 | 460×135×530 | 0.0329 | 1 | 3.60 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
