Product Details:
|
| Product Name: | Wall Mounted Power Distribution Box | Color: | RAL7035 |
|---|---|---|---|
| Box Material: | Powder Coated Sheet | Protection Level: | IP40 |
| Mounting Type: | Wall Mount | Earthing Bolt: | M6x14 |
| Folding Style: | Folding Outwards | Wiring Bracket: | At Left Side Of Box |
| High Light: | CCC Wall Mount Distribution Box,Wall Mount Distribution Box IP40,CCC Wall Distribution Box |
||

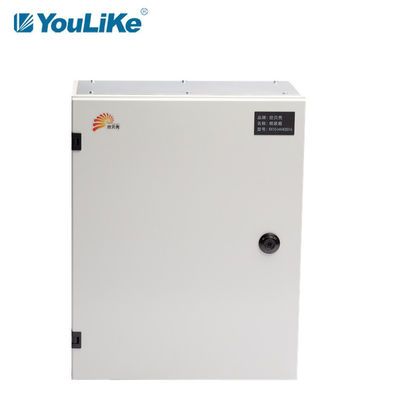

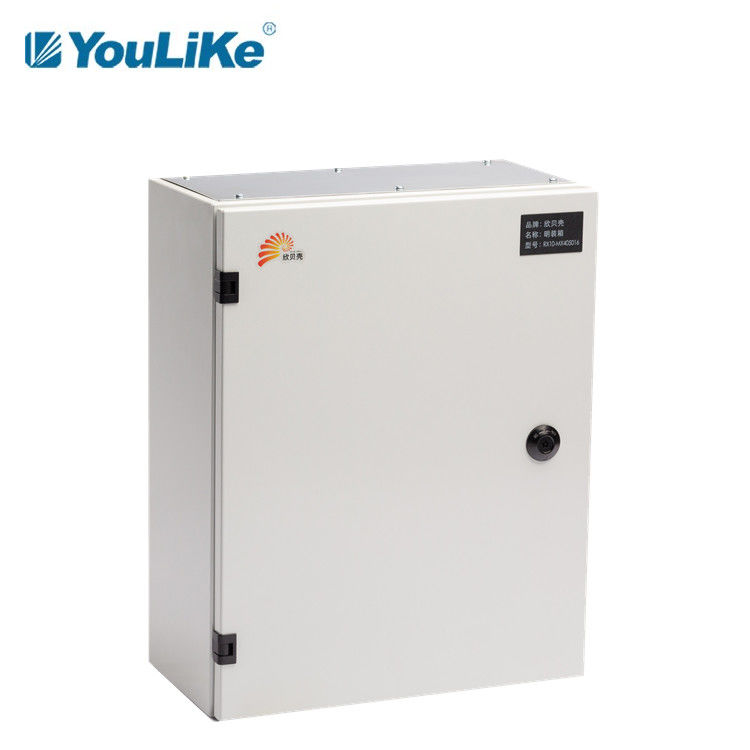

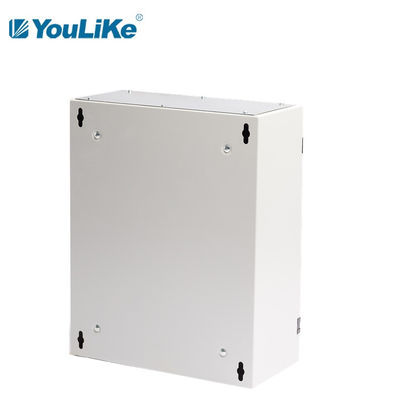

Electrical Distribution Control Panel Board IP40 Wall Mounting Electric Supplies Metal Box
Box body configuration
1. Folding style: folding outwards.
2. Removable plate: located at bottom&top of box body, material to be galvanized sheet without powder coating.
3. Wiring bracket: at left side of box.

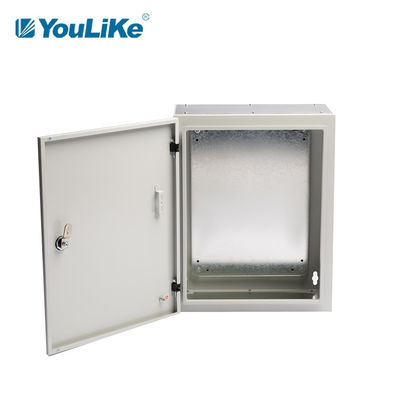

4. Mounting plate: 1pcs per each box, for electical components installation.
Door configuration
1. Folding style: dual folding.
2. Lock: MS401 disc lock, color black, zinc alloy material.
3. Cushion: for RX-MX-10 ONLY.
4. Foamed tape: For RX-MX-11 ONLY.
5. Hinge: HL003, color black, zinc alloy material, surface mounted, operation capacity 180°.
Full set configuration remarks
Wiring stand: normally it comes with cover punching. If no hole punching on cover, no wiring stand equiped.
standard design (100% as per our design, no customization) is equiped with wiring stand (1pcs for box less than 500mm height, 2pcs for box more than 500mm height).
Cable duct cover: 2pcs per each set.
Version comparation
| Parts | Involved components | RX-MX-10 | RX-MX-11 |
| Door | Foamed tape | No equiped | Equiped |
| Wiring style | We ld stand |
weld rib | |
| Other technical datas of those two versions remain the same. | |||
RX-MX-10 RX-MX-11
Specification of RX-MX series wall mount distribution box
| ser | Model | Dimension(mm) | Plate thickness(mm) | Mounting plate size(mm) | lock | |||
| Width | Height | Depth | Box/Door/mounting plate | Width | Height | pcs | ||
| #1 | RX-MX304016 | 300 | 400 | 160 | 1.2/1.2/1.5 | 210 | 310 | 1 |
| #2 | RX-MX405016 | 400 | 500 | 310 | 410 | |||
| #3 | RX-MX506016 | 500 | 600 | 410 | 510 | |||
| #4 | RX-MX507016 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #5 | RX-MX607016 | 600 | 700 | 510 | 610 | |||
| #6 | RX-MX608016 | 600 | 800 | 510 | 710 | |||
| #7 | RX-MX709016 | 700 | 900 | 610 | 810 | 2 | ||
| #8 | RX-MX405020 | 400 | 500 | 200 | 1.2/1.2/1.5 | 310 | 410 | 1 |
| #9 | RX-MX506020 | 500 | 600 | 410 | 510 | |||
| #10 | RX-MX507020 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #11 | RX-MX607020 | 600 | 700 | 510 | 610 | |||
| #12 | RX-MX608020 | 600 | 800 | 510 | 710 | |||
| #13 | RX-MX709020 | 700 | 900 | 610 | 810 | 2 | ||
| #14 | RX-MX701020 | 700 | 1000 | 610 | 910 | |||
| #15 | RX-MX405024 | 400 | 500 | 240 | 1.2/1.2/1.5 | 310 | 410 | 1 |
| #16 | RX-MX506024 | 500 | 600 | 410 | 510 | |||
| #17 | RX-MX507024 | 500 | 700 | 1.2/1.5/1.5 | 410 | 610 | ||
| #18 | RX-MX607024 | 600 | 700 | 510 | 610 | |||
| #19 | RX-MX608024 | 600 | 800 | 510 | 710 | |||
| #20 | RX-MX709024 | 700 | 900 | 610 | 810 | 2 | ||
| #21 | RX-MX701024 | 700 | 1000 | 610 | 910 | |||
