Product Details:
|
| Product Name: | Electrical Distribution Box | Color: | White |
|---|---|---|---|
| Surface Treatment: | Powder Coating Spray | Cover Frame Material: | PC |
| Rated Voltage: | AC400v(+/-20%) | Rated Currency: | 63A/80A |
| Mounting Type: | Flush | Ingress Protection: | IP40 |
| High Light: | AC400V 2 Pole MCB Box,2 Row double pole mcb box,CCC 2 Pole MCB Box |
||

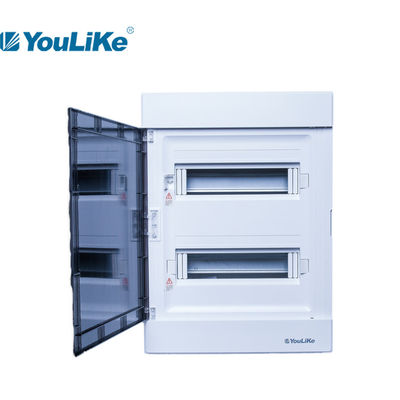

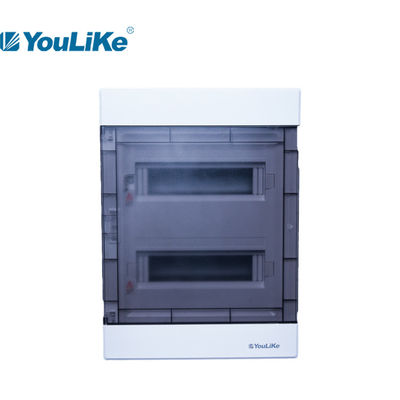

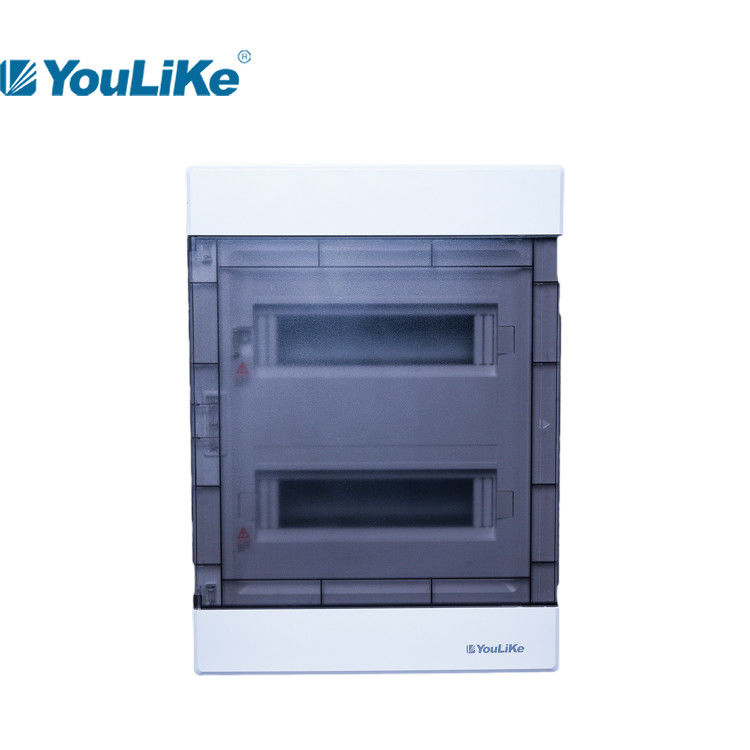

2 Row Type MCB Distribution Box With Transparent Cover Consumer Unit 2 Pole MCB Box
Application
M5 series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.

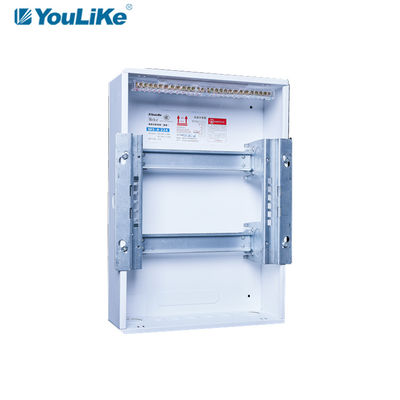

1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 6% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Plastic wire clamps is equiped below the din rail.
Product Feature

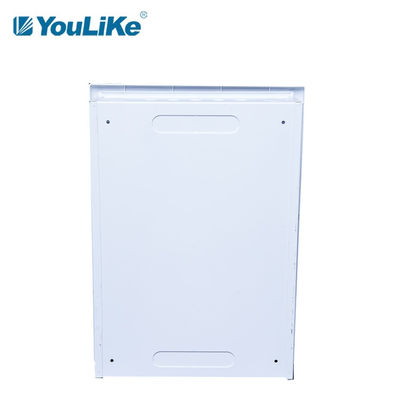

1. Box material: powder coated steel
2. Cover frame material: PC
3. Door material: PC (transparent door and white door )
4. All plastic parts : without specific flame retardant
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
Specifications of M5 series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| M5-A 107 | 7way | 224*240*15.5(27.5) | 202*210*90*1.0 | 6.4*12 | 5 | 6 | 6 |
| M5-A 110 | 10way | 278*240*15.5(27.5) | 256*210*90*1.0 | 6.4*12 | 7 | 8 | 7 |
| M5-A 112 | 12way | 316*240*15.5(27.5) | 292*210*90*1.0 | 6.4*12 | 7 | 8 | 8 |
| M5-A 115 | 15way | 370*260*15.5(27.5) | 346*210*90*1.0 | 6.4*12 | 9 | 10 | 9 |
| M5-A 118 | 18way | 424*260*15.5(27.5) | 400*210*90*1.0 | 6.4*12 | 12 | 13 | 10 |
| M5-A 121 | 21way | 478*260*15.5(27.5) | 454*210*90*1.0 | 6.4*12 | 12 | 13 | 12 |
| M5-A 224 | 24way | 335*460*19(31) | 305*420*100*1.2 | 8*12 | 12 | 13 | 9 |
| M5-A 230 | 30way | 375*480*18(30) | 345*450*100*1.2 | 8*12 | 2*9 | 2*10 | 10 |
| M5-A 345 | 45way | 375*650*18(30) | 345*620*100*1.2 | 8*12 | 2*12 | 2*13 | 10 |
Product Detail Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M5-A 107 | 580*245*515 | 0.0732 | 10 | 9.58 | |
| M5-A 110 | 580*300*515 | 0.0896 | 10 | 14.66 | |
| M5-A 112 | 580*340*515 | 0.1016 | 10 | 17.10 | |
| M5-A 115 | 580*280*400 | 0.0650 | 5 | 9.25 | |
| M5-A 118 | 580*280*455 | 0.0739 | 5 | 10.20 | |
| M5-A 121 | 580*280*505 | 0.0821 | 5 | 11.65 | |
| M5-A 224 | 505*165*390 | 0.0325 | 1 | 6.70 | |
| M5-A 230 | 525*160*425 | 0.0357 | 1 | 3.60 | |
| M5-A 345 | 695*160*425 | 0.0473 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness)
2. Order arrangement
* ≤15 days stable delivery
* specific MOQ
* multiple payment terms
* order status update
3. Additional service
* 7X24 respondence service
* on site service
* quality discrepancy handle
* accessories coordination
