Product Details:
|
| Name: | 10 Way Mini Circuit Breaker Box | Door Material: | HIPS/PC |
|---|---|---|---|
| Base Box Material: | 0.8&1.0mm Powder Coated Steel | Copper Terminals:: | Safe And Full Material |
| Rated Voltage: | 400V+/-20% | Rated Current: | 55A/ 63A |
| Adjustable Din-rail: | Move Ascend And Descend | Protection Degree: | IP40 |
| High Light: | HIPS 10 Way MCB Box,HIPS Main Switch Box,HIPS Cover MCB Box |
||

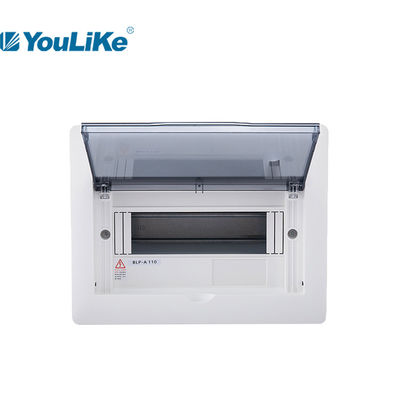

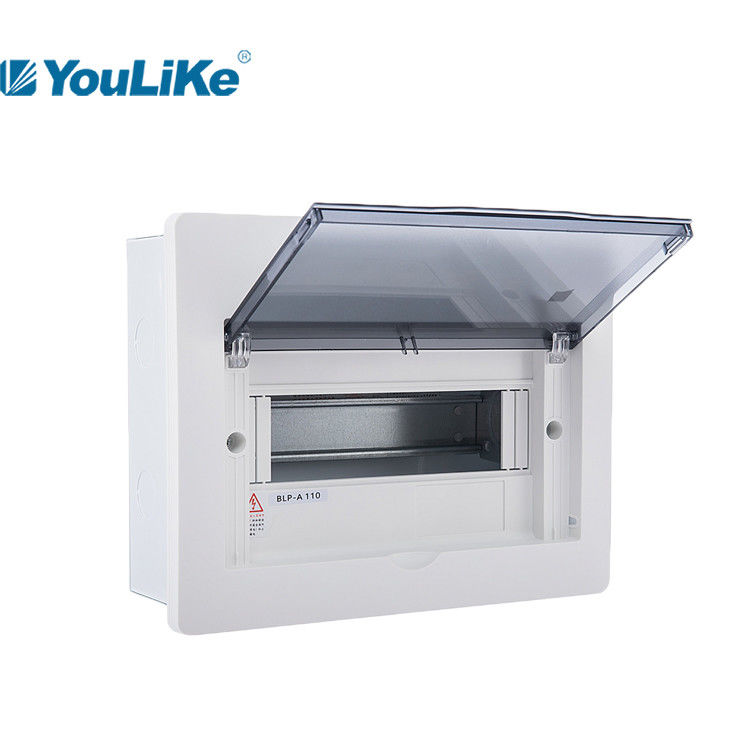

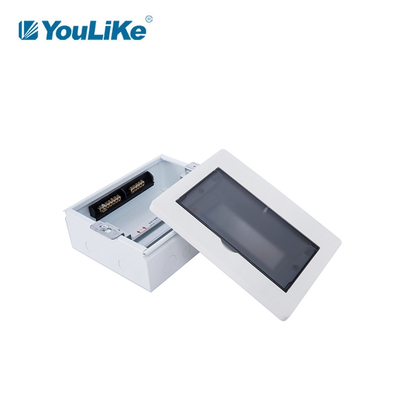

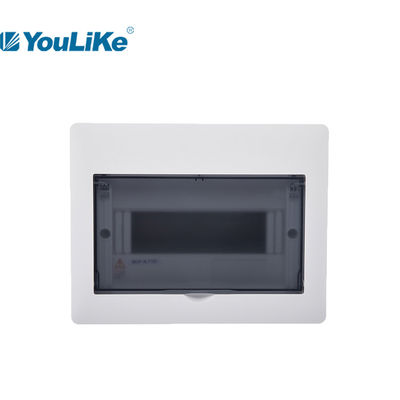

HIPS Cover 10 Way MCB Box Mini Circuit Breaker Electrical Distribution Box
Product Features
1. Base box material: one row for 0.8mm powder coated steel, two row for 1.0mm powder coated steel .cover for HIPS material.
2. Safe and full material copper terminals.
3. Adjustable din-rail:move ascend and descend.
4. Ultra-large space box for moving and easy wiring.
5. Flush mounting and surface mounting available.
6. Function of Distribution box:protect MCB and other devices.
7. Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.
Technology
1. The new hinge structure adopts metal shaft core, which is stable, reliable and durable.
2. The special stainless steel shrapnel fixes the movable door in the ideal position to ensure that the force of opening and closing the movable door is moderate, the rotation is smooth and there is no abnormal noise.
3. The internal guide rail bracket is composed of all metal parts, with lifting and rotation adjustment function and pre suspension function.
4. The grounding screw is made of stainless steel, the stud is uncoated and the grounding is more sufficient.
Product Parameter
| Ways | 10 way |
| Color | white |
| Base Box Size | 246*192*80*0.8mm |
| Cover Size | 268*210*17.5(26)mm |
| Mounting Type | flush |
| Ambient temperature(℃) | -5~+40,max.95% humidity |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| Certificate | CCC.CE |
Specifications of BL series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| BLP-A 110 | 10way | 268*210*17.5(26) | 246*192*80*0.8 | 6*10.4 | 6 | 5 | 5 |
| BLP-A 113 | 13way | 322*210*17.5(26) | 300*192*80*0.8 | 6*10.4 | 6 | 5 | 6 |
| BLP-A 116 | 16way | 376*210*17.5(26) | 354*192*80*0.8 | 6*10.4 | 8 | 7 | 7 |
| BLP-A 118 | 18way | 412*210*17.5(26) | 390*192*80*0.8 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 121 | 21way | 466*210*17.5(26) | 444*192*80*0.8 | 6*10.4 | 11 | 10 | 10 |
| BLP-A 124 | 24way | 520*250*17.5(26.5) | 498*230*90*1.0 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 226 | 26way | 322*405*17.5(28.3) | 300*380*90*1.0 | 6*10.4 | 13 | 12 | 6 |
| BLP-A 232 | 32way | 375*405*17.5(28.3) | 354*380*90*1.0 | 6*10.4 | 13 | 12 | 7 |
| BLP-A 242 | 42way | 466*405*17.5(28.3) | 444*380*90*1.0 | 6*10.4 | 18 | 15 | 10 |
Product Details
About Us
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
