Product Details:
|
| Product Name: | Single Phase Distribution Box | Door Material: | HIPS/PC |
|---|---|---|---|
| Cover Installation Type: | Screw Fixation | Rated Voltage: | 400V+/-20% |
| Rated Current: | 55A/ 63A | Protection Level: | IP40 |
| Way Dimension: | 18mm | Phase: | Single |
| High Light: | IP40 8 way distribution board,IP40 Distribution Board Single Phase,Single Phase 8 Way Distribution Board |
||
13 Way Distribution Board Single Phase Household Plastic Power Mcb Distribution Box
Product Specification
1. Box to be powder coated steel, 1.0mm for 1rows, 1.2mm for 2rows.
2. Cover frame to be HIPS material.
3. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
4. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
5. The protection level reaches IP40
6. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
7. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
8. Stainless earthing bolts with warning label.

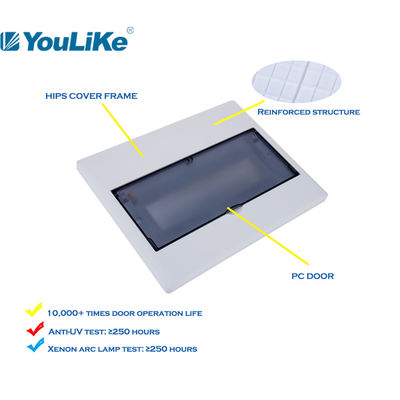

9. Reinforced structure design to allow higher tensile strength of plastic cover.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Product Parameters
| Model | JXP-A 113 |
| Mounting Type | flush mounting |
| Base Box Size | 282*192*75*0.8mm |
| Cover Size | 304*210*17.5(26)mm |
| Accessories | bolt, din rail , terminal |
| Rows | 1 row/ 2rows |
| Application | residential,home,school,commercial,industrial, power engineering etc. |
| Approval | CE,CCC |
| Circuit Breaker Rail | galvanised Steel |
| Feature | rustproof,high strength |
| Package | in color box or neutral carton |
Specifications of JX series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| JXP-A 106 | 6way | 178*210*17.5(26) | 156*192*75*0.8 | 6*9 | 4 | 3 | 2 |
| JXP-A 110 | 10way | 250*210*17.5(26) | 228*192*75*0.8 | 6*9 | 6 | 5 | 5 |
| JXP-A 113 | 13way | 304*210*17.5(26) | 282*192*75*0.8 | 6*9 | 6 | 5 | 6 |
| JXP-A 116 | 16way | 358*210*17.5(26) | 336*192*75*0.8 | 6*9 | 8 | 7 | 7 |
| JXP-A 118 | 18way | 394*210*17.5(26) | 372*192*75*0.8 | 6*9 | 11 | 10 | 8 |
| JXP-A 121 | 21way | 448*210*17.5(26) | 426*192*75*0.8 | 6*9 | 11 | 10 | 10 |
| JXP-A 124 | 24way | 524*252*17.5(26.5) | 498*230*90*1.0 | 6*9 | 11 | 12 | 10 |
| JXP-A 232 | 32way | 358*405*17.5(26) | 336*380*90*0.8 | 6*9 | 13 | 15 | 7 |
| JXP-A 242 | 42way | 448*405*17.5(26) | 426*380*90*0.8 | 6*9 | 16 | 17 | 10 |

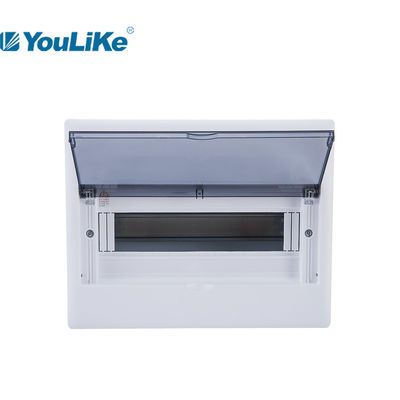

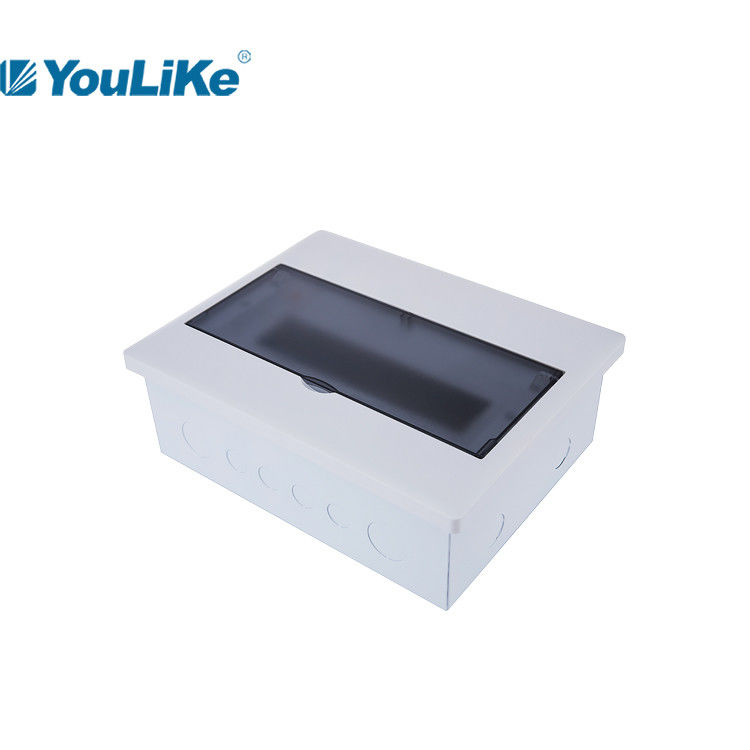

Product Details Demonstration
About Us
YouLike is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, switch box, MCB consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, CCC test.
Production Capacity:
1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100% original.
2. Product update and new product issue in each 1-2 years.
